Operators guide
17
Fitting the pan bar
A single pan bar is supplied and can be fitted to either the right- or left-hand side of the head
onto the pan bar mounting ([10], [13]).
Position the pan bar onto the pan bar mounting ([10], [13]).
Rotate the pan bar clamp clockwise until the pan bar is secured.
A second pan bar may be fitted to the other side of the head (if required).
Fitting a camera and payload

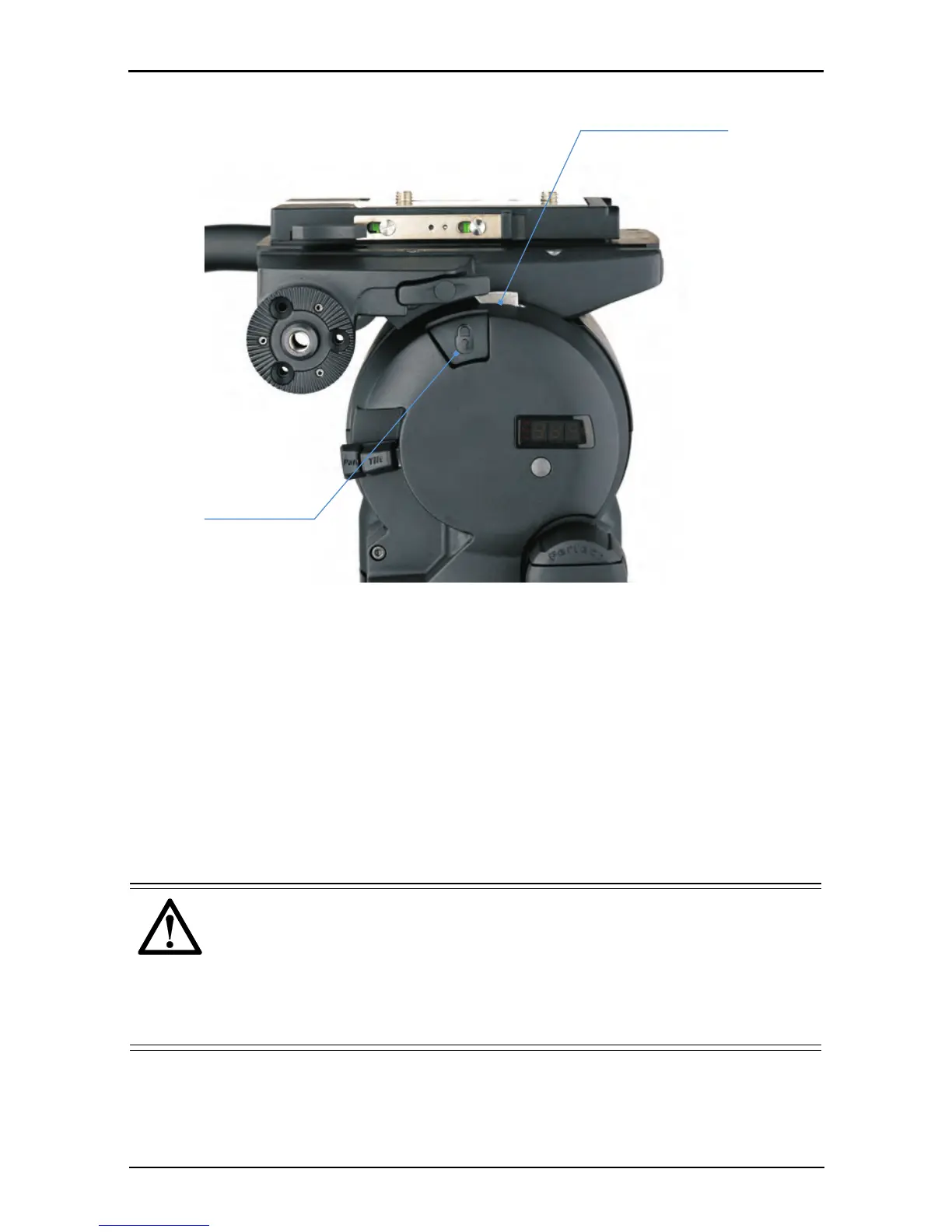

Fig. 6 Centre lock operation
CAUTION
Do not rely on the tilt brake when changing the payload. Always engage the
centre lock.
Ensure that the weight and C of G height of the total payload is within the
range for which the head is designed.
When installing on a pedestal, lock the pedestal in the fully depressed
position before fitting the camera and payload.
