Repositioning the wedge adaptor
The wedge adaptor (1) is secured by four cap head screws (3) which pass through the wedge
adaptor into the sliding plate (12).
To reposition the wedge adaptor:
Engage the centre lock (See Locking the platform) and remove the load.
Hold the body of the wedge adaptor (1) and use a 4 mm hexagon wrench to remove four
securing screws (3).
Reposition the wedge adaptor (1) on the sliding plate (12), ensuring that the narrow end of
the wedge adaptor faces forwards
Insert the four screws (3) in the holes in the wedge adaptor and tighten.
WARNING! Overlong screws will prevent the sliding plate from operating.
Always use the screws provided (M6 x 30 mm).

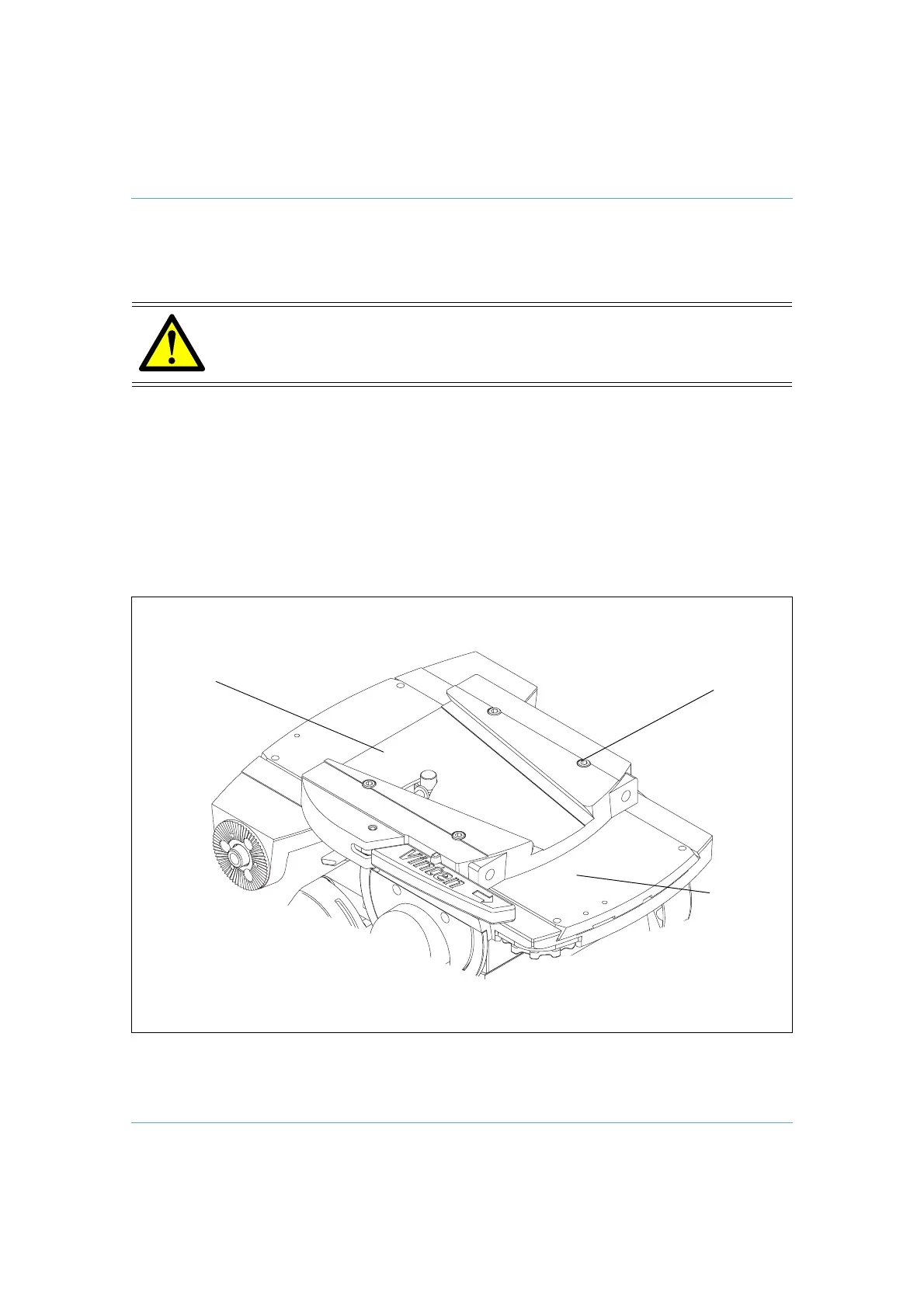

Repositioning the wedge adaptor
(3)
(12)
(1)
