Section 3
Tools and Materials
General
1 The following special tools and consumable materials will be required for servicing, disassembly,
assembly and adjustment.

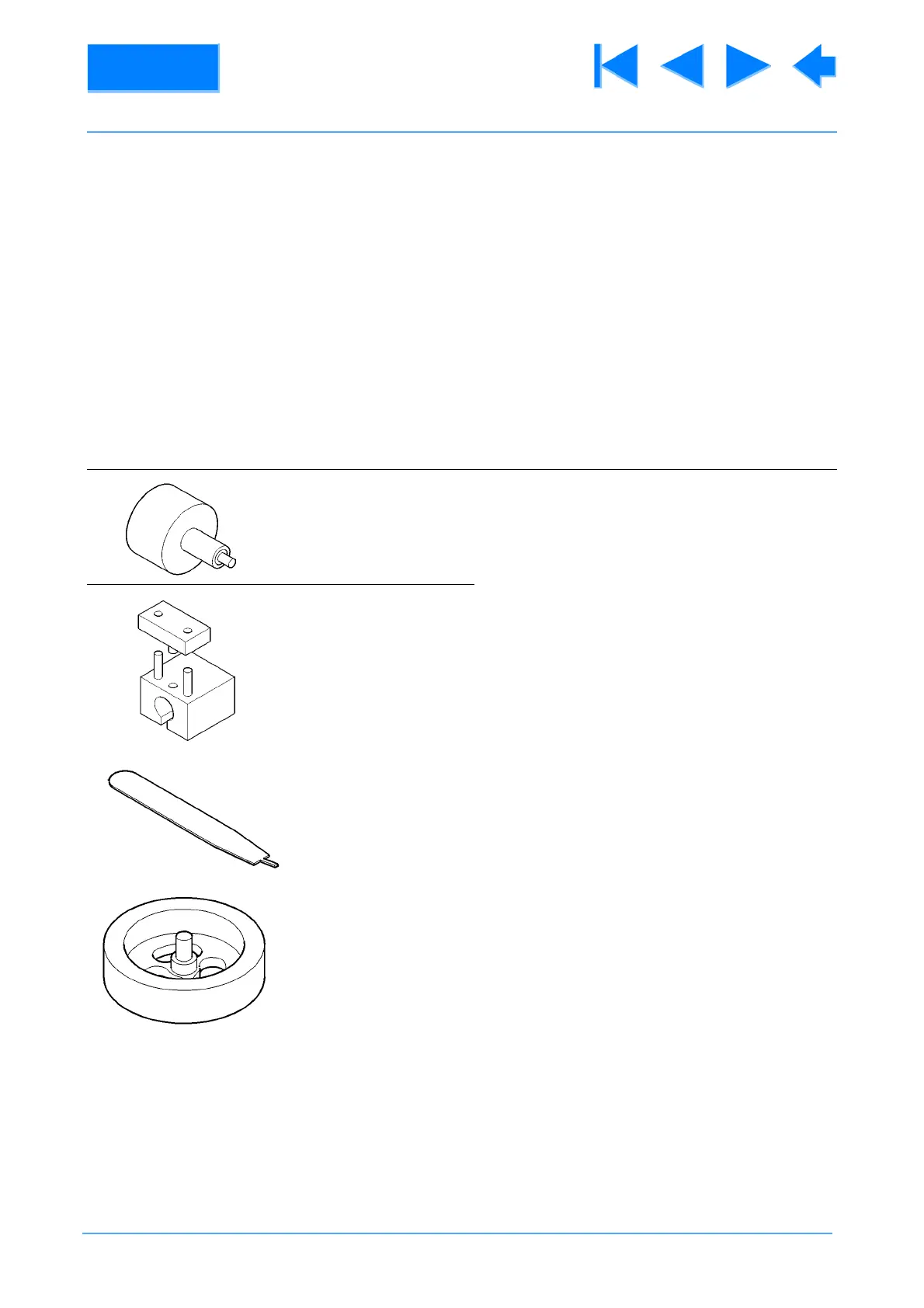

Special tools
Item Part No. Procedure
Bearing press tool 3431-911TL Installing needle bearing in
actuator shaft
Pin press 3431-912TL Installing dowel pin to connect
actuator shaft and adjustment slide
Spring insertion tool 3390-909TL Assembly of platform
Centralizing fixture
(pan)
3390-904TL Centralizing pan drag shoe
Centralizing fixture
(tilt)
3395-906TL Centralizing tilt drag shoe
