1. AV Out
2. External Microphone Port
3. Screw Hole
4. Rear Camera Port
5. Interior Camera Port
6. Power In / microSD Card Reader
Mode (computer)
7. Screw Hole
8. microSD Card Slot
9. Rotatable lens
10. Power On | OFF
11. Recording Start | Stop
12. Video Protect
13. Microphone On | OFF
14. Wi-Fi On | OFF
15. GPS Module
16. Reset Hole
17. Microphone
18. Recording Status Indicator
19. Microphone Status Indicator
20. GPS Status Indicator
21. Wi-Fi Status Indicator
Optional Accessories

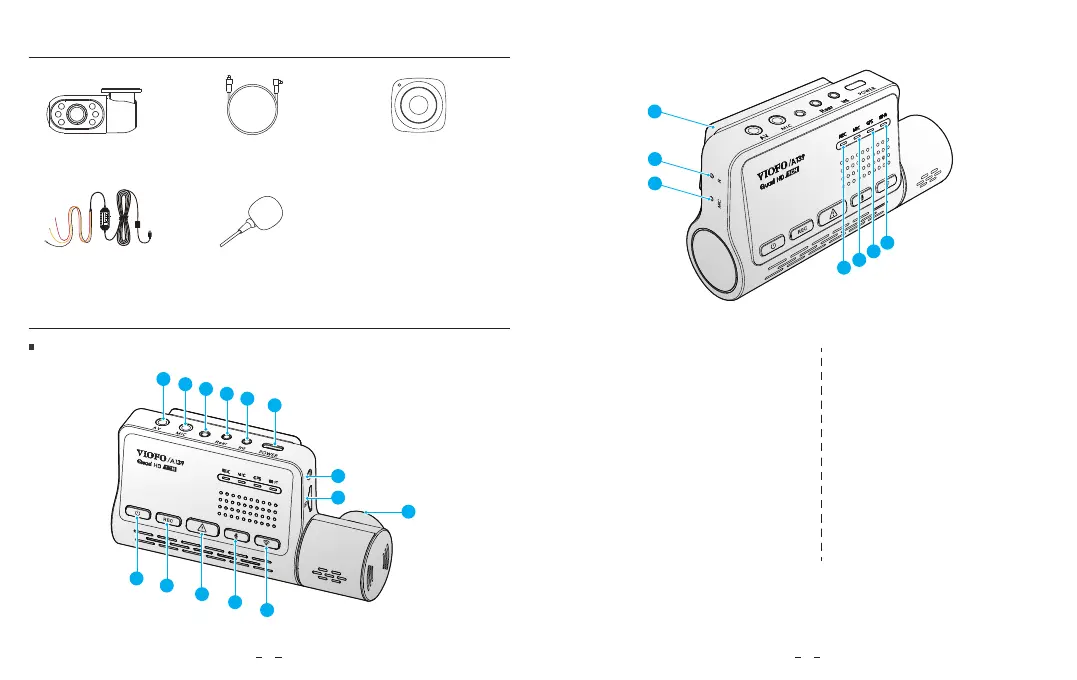

Product Diagram
Front Camera (Main Unit)
Interior Camera
Cable(1M)
Bluetooth Control
HK3-C Hardwire Kit External Microphone
Interior Camera
VIOFO Hardwire Kit for Car Dash Camera
INPUT:
RED
— POWER
BLACK
— GND
YELLOW
— ACC
Input: 12 / 24V; Output: 5V2A Max
1
2
3
4
5
6
7
10
14
13
11
12
8
9
16
15
17
18
19
20
21
43
