Section 3: Product Overview

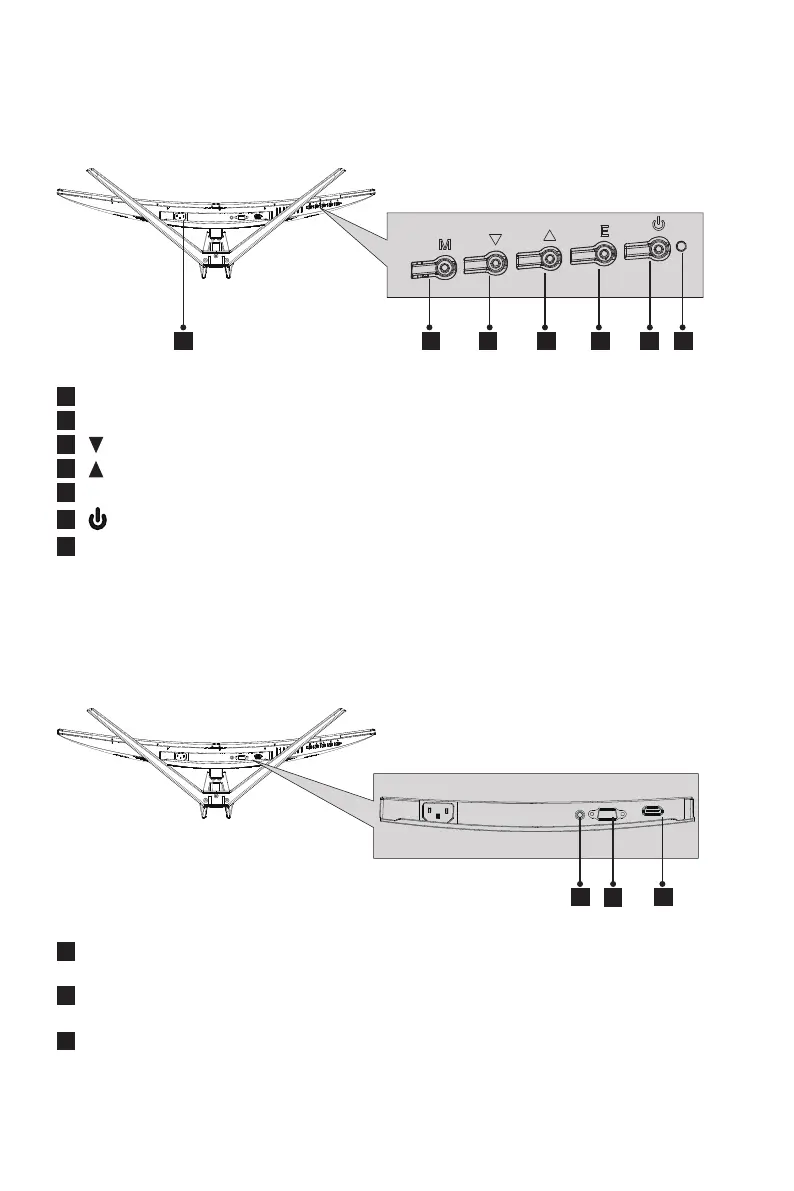

3.1 – Monitor Buttons
8
Audio Output: Insert one end of the audio cable into the computer’s audio
output to receive the audio signals from your monitor.
9
VGA Connector: Insert one end of the VGA cable into the computer’s VGA
output and connect the other end to the monitor’s VGA port.
10
HDMI Connector: Insert one end of the HDMI cable into the computer’s
HDMI output and connect the other end to the monitor’s HDMI port.
8 10
9
1 3 4 5 6 7 2
1
Power Connector
: Insert the power cable to supply power to the monitor.
2
M Menu Button
: Press to display the OSD menu or enter sub-menus.
3
Down Button
: Press to move down in the menus.
4
Up Button
: Press to move up in the menus.
5
E Exit Button
: Press to exit.
6
Power Button
: Press to turn the monitor on/off.
7
LED Indicator: Changes colors to indicate status. Refer to Section 8.
3.2 – Monitor Ports
