14
© 2009 Directed Electronics. All rights reserved.

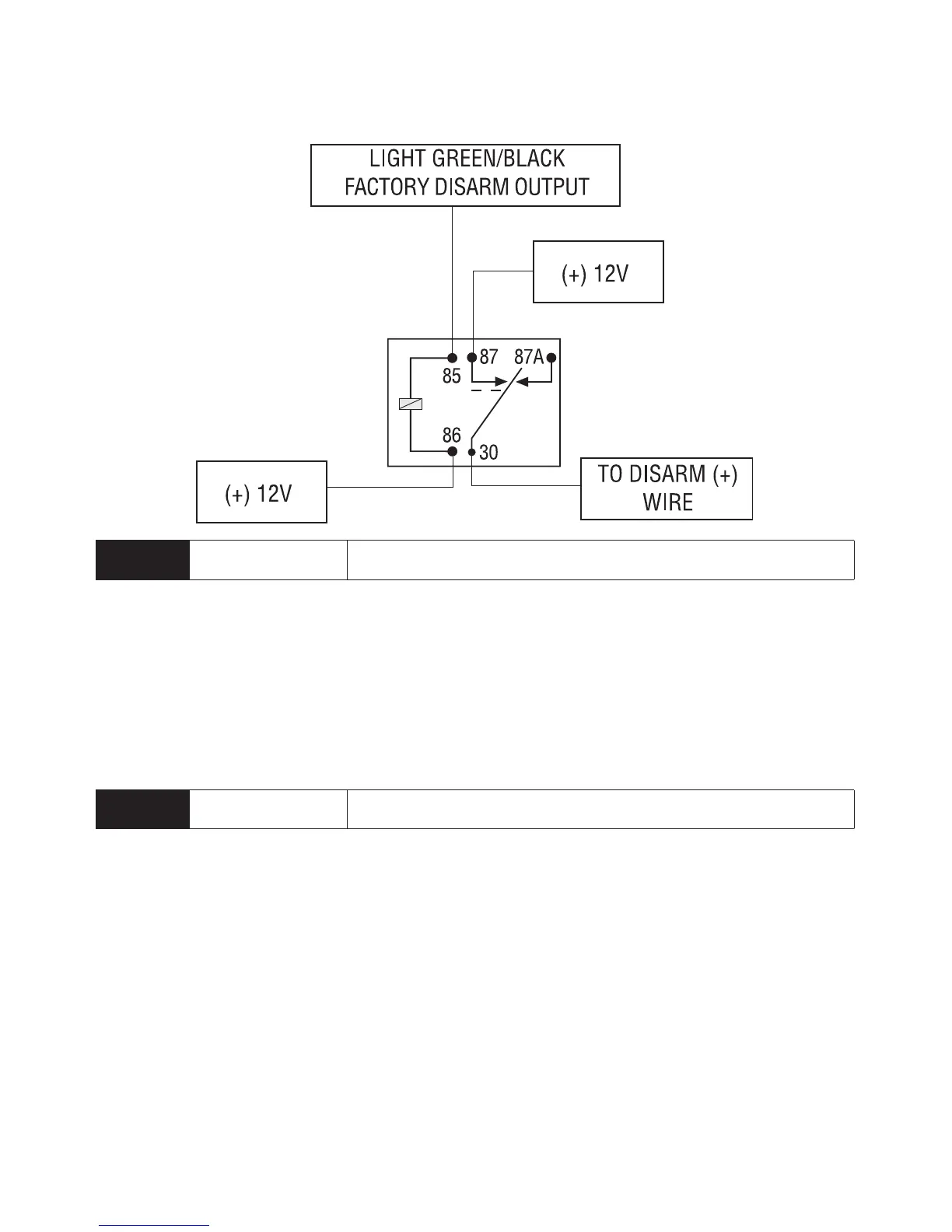

Relay for Positive (+) Disarm Wire
H1/2
GREEN/WHITE (-) FACTORY REARM
This wire sends a 200mA negative pulse every time the remote start
shuts down or the doors are locked. This can be used to pulse the arm
wire of the vehicle’s factory anti-theft device. Use a relay to send a (-)
or (+) pulse to the arm wire.
H1/3
YELLOW (+) IGNITION OUT (TO ALARM)
As a stand-alone system:
The H1/3 YELLOW wire should not be con-
nected to anything.
As an add-on car starter:
If connected, disconnect the ignition/ac-
cessory input of the remote controlled security or keyless entry system.
Connect the H1/3 YELLOW ignition output to the ignition/accessory
input of the remote controlled security or keyless entry system. The wire
will prevent the host system from sensing that the ignition is on during
remote start operation.
