Viper 4103XV - Wiring Quick Reference Guide

50
© 2009 Directed Electronics. All rights reserved.

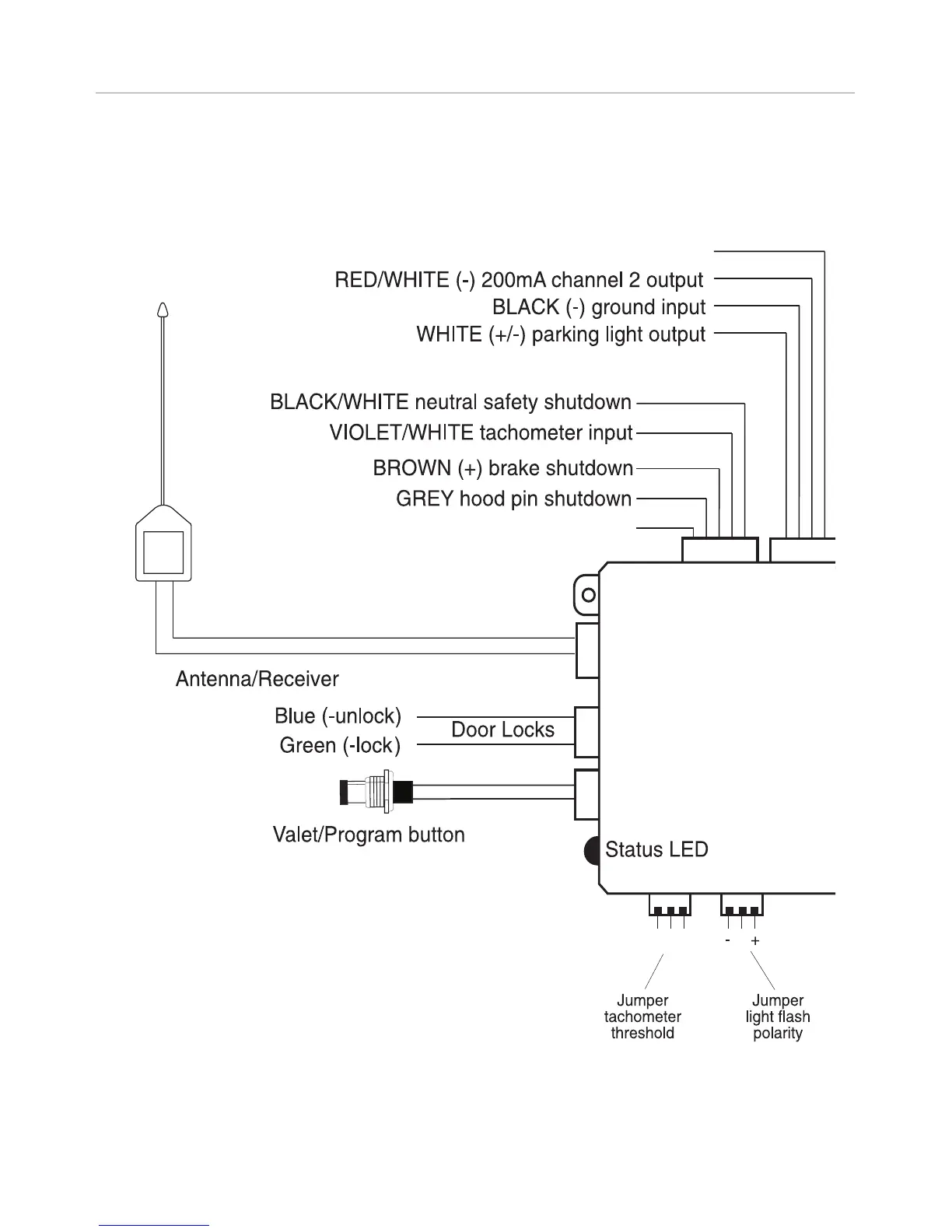

Wiring quick reference guide
ORANGE (-) 500 mA ground when locked
BROWN (-) 200mA horn honk output
red 4 pin d2d
bitwriter port
Off On
BLUE/WHITE (-) 200mA 2ND status output/defogger
GREEN/WHITE (-) 200mA factory alarm rearm
GREEN/BLACK (-) 200mA factory alarm disarm
