Vision Engineering SX 45 - Assembly; Head; Camera (Trinocular Head Only)

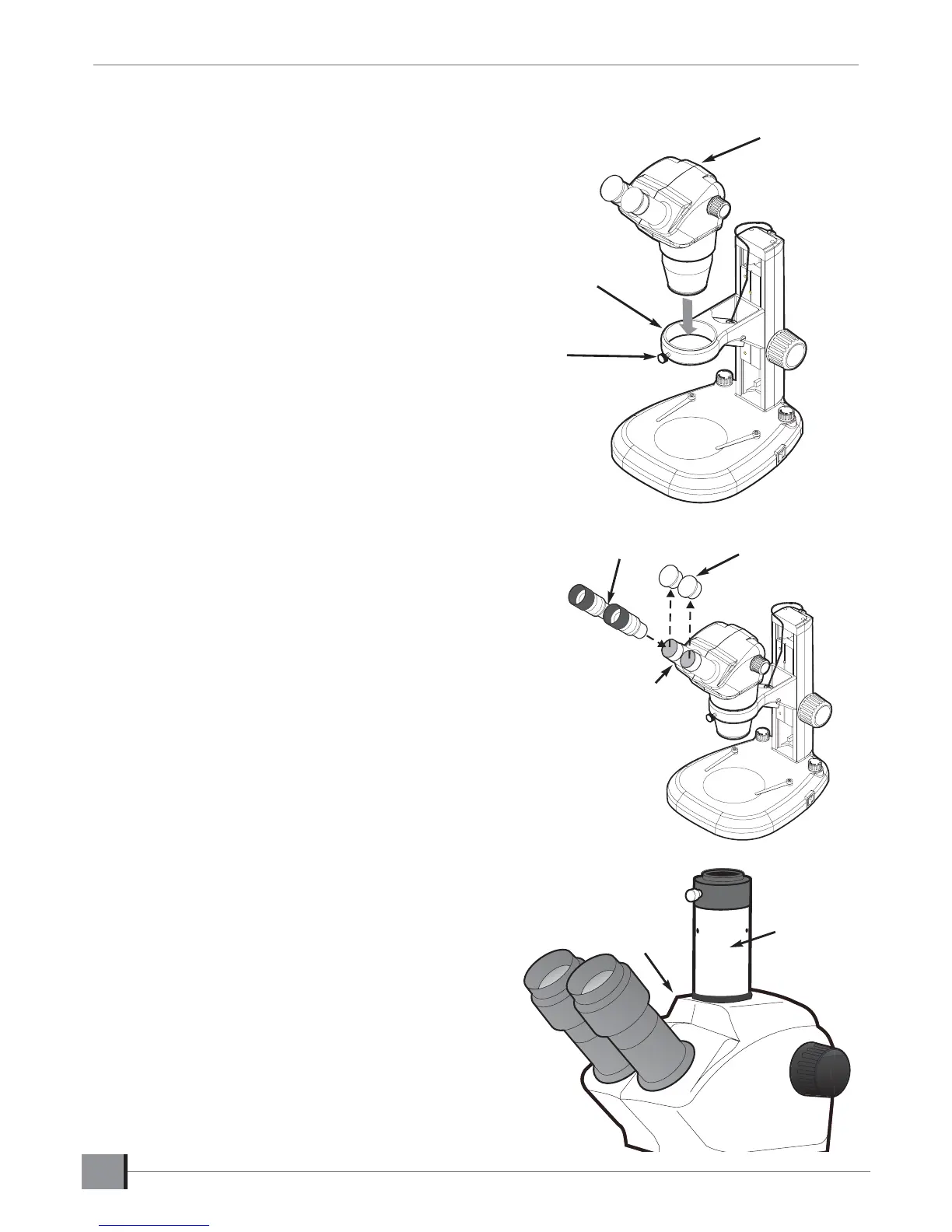

Head (Binocular/Trinocular)
Ensuring all components are clean and dust-free, attach the binocular head as follows:
► Loosen the securing screw .
► Lower the head  into the location ring .
► Tighten the securing screw .
Warning: With the head in place, always support the
column and base when moving the instrument.
Eyepiece attachment
► Remove the protective caps  from the eyepiece sockets .
► Insert the eyepieces  into the sockets.
Camera attachment (Trinocular head)
► Remove the cap from the top of the Trinocular head .
► Screw on the camera adaptor .
4
SX45 Stereo Zoom Microscope
www.visioneng.com/support
ASSEMBLY








