SX45 Stereo Zoom Microscopewww.visioneng.com/support
ASSEMBLY

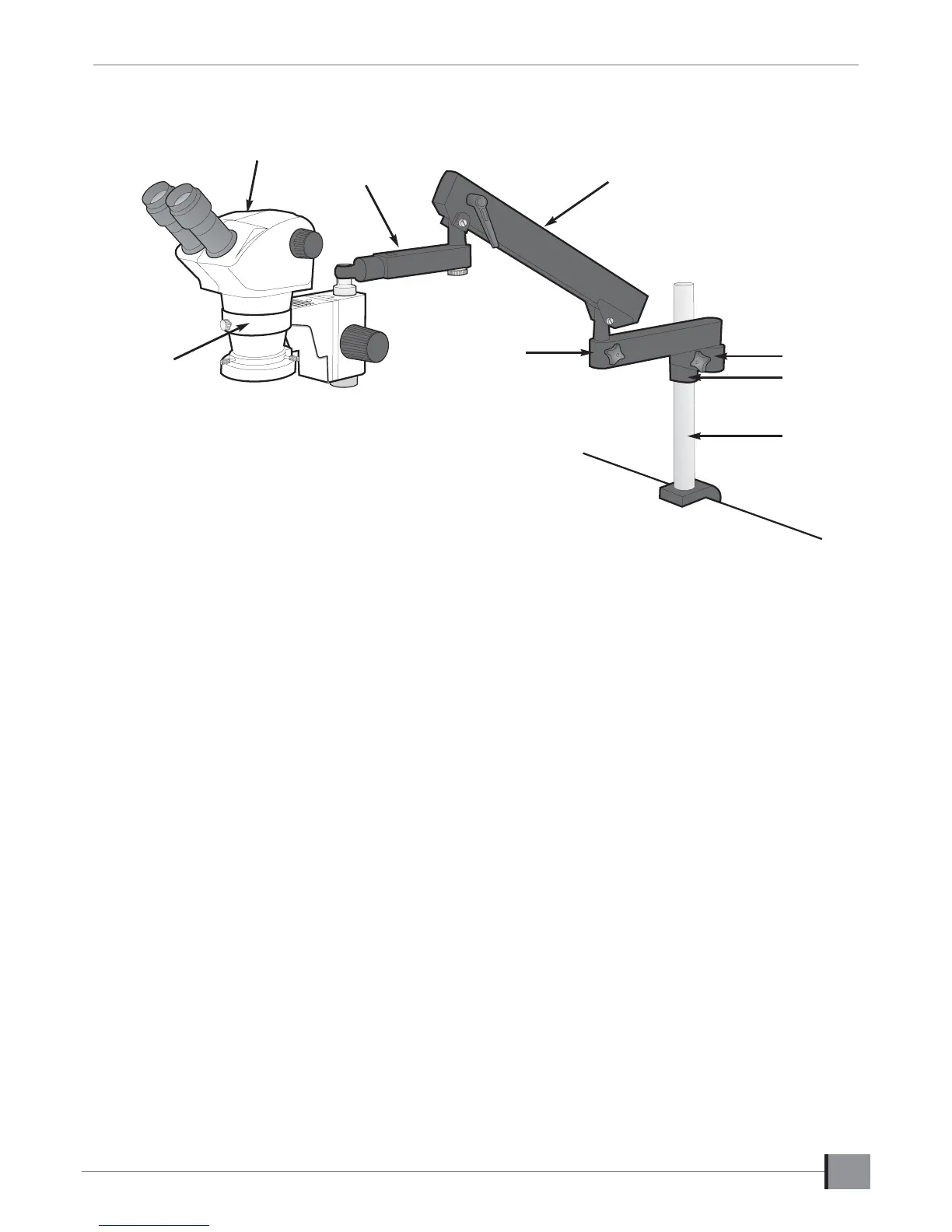

Articulated arm
► Secure bench mount to work surface using clamp.
► Slide the securing collar over the mount and secure.
► Slide the link collar over the mount and secure.
► Insert secondary link into the link collar and secure.
► Insert the ergonomic beam into the secondary link and secure.
► Attach the focus arm link to the ergonomic beam and secure.
► Connect focusing arm to the focus arm link and tighten the screw at the back and the nut
at the bottom until secure.
► Insert head into the focusing arm and secure.
