Vision TC3-AMP User Manual

6
TC3-AMP_manual_en
INSTALLATION INSTRUCTIONS
This amplifier module can be fixed as a stand-alone product or integrated into a Techconnect
connectivity faceplate.
Using as a stand-alone product:

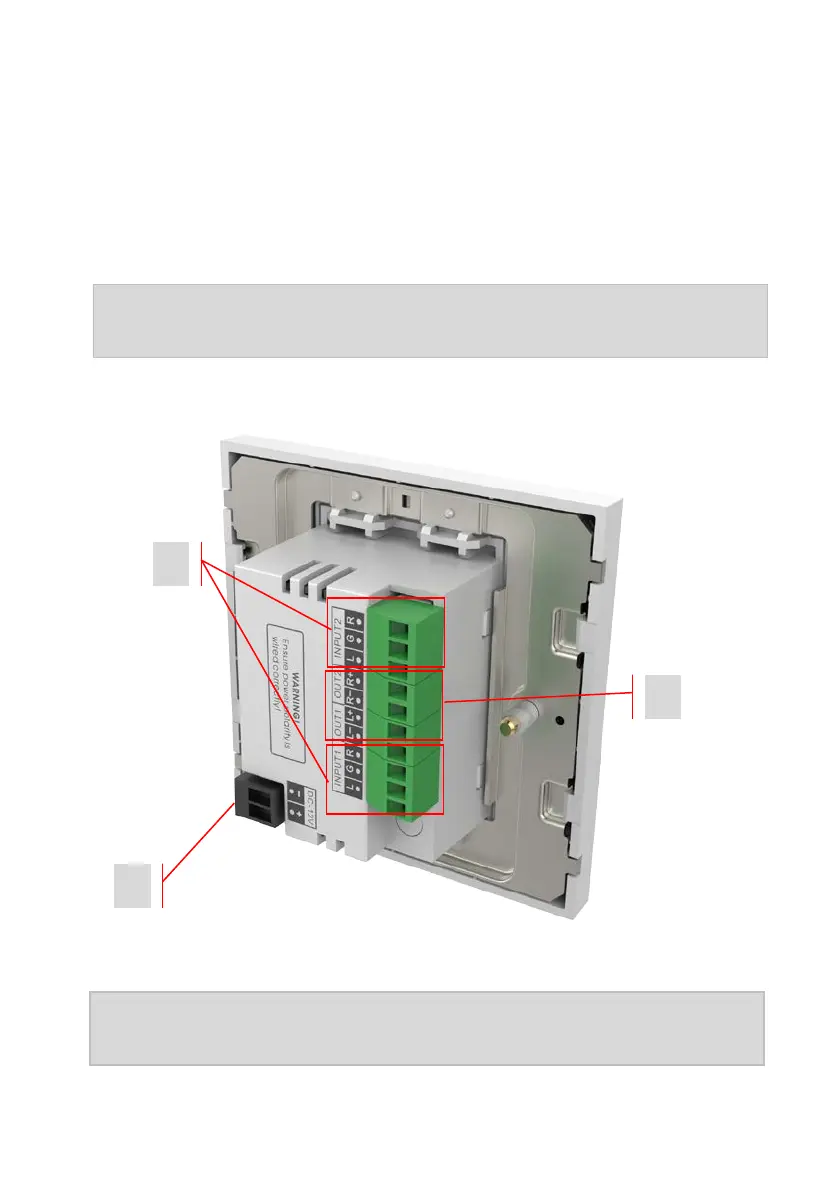

1. CONNECT INPUTS If you have a 2-phono cable twist the two ground wires together
2. CONNECT OUTPUTS Connect up to two speakers to each output (four total)
The speaker cable must be unshielded with a gauge of no less than 0.75mm. THE
WARRANTY WILL BE VOID IF YOU USE UNSUITABLE SHIELDED CABLE E.G. PHONO CABLE.
3. CONNECT POWER
NOTE: THIS IS A LOW-IMPEDANCE AMPLIFIER. DO NOT ATTEMPT TO CONNECT 100V LINE
SPEAKERS (Normally any speakers with “t” in the part code)
1
1
2
3
