3-10 Operating the PTX-PRO PTX-PRO User and Technical Manual
LMS-T Tab

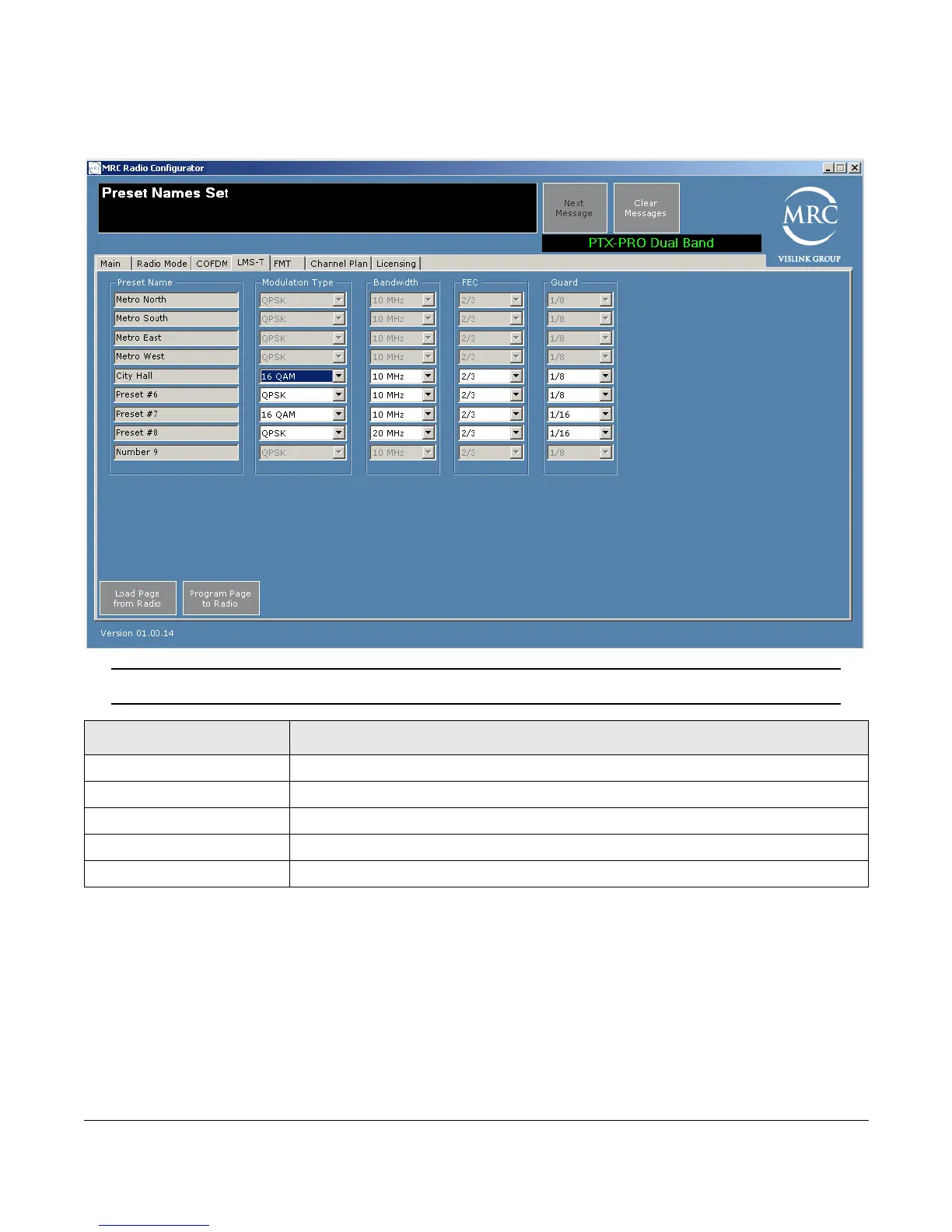

The LMS-T (Link Modulation System - Terrestrial) tab is a proprietary algorithm system for
modulation. If you have this license, you can set the following parameters.
Note
Fields on the LMS-T tab are active only for LMS-T operation mode.
Load Page from Radio—To load parameters for this page from the PTX-PRO, click on this
button.
Program Page to Radio—To apply parameter modifications to the PTX-PRO, click on this
button.
Field Option
Preset Name Displays the name of the preset.
Modulation Type Select QPSK, or 16 QAM.
Bandwidth Select 10 MHz, or 20 MHz.
FEC Select 2/3.
Guard Select 1/16, or 1/8.
