D-302413 NEXT PG2, NEXT K9-85 PG2 Installation Instructions 5
This device complies with FCC Rules Part 15 and with Industry Canada licence-exempt RSS standard(s). Operation is subject to two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may be received
or that may cause undesired operation.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisee aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement.
The technical documentation as required by the European Conformity Assessment procedure is kept at:
UNIT 6 MADINGLEY COURT CHIPPENHAM DRIVE KINGSTON MILTON KEYNES MK10 0BZ. TEL.: +44(0)845 0755800 FAX: +44(0)845 0755801
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are discarding this product and not
returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not to be thrown away with everyday waste.
Directive 2002/96/EC Waste Electrical and Electronic Equipment.
APPENDIX: SPECIFICATIONS
90°
5
0
16.4
0
15 m
49.2 ft
10
32.8
5m
16.4ft
5m
16.4ft
10m
32.8ft
10m
32.8ft
5 10 15 m
0
2.1 m
(6.9 ft)
16.4 32.8 49.2 ft
B
A
C

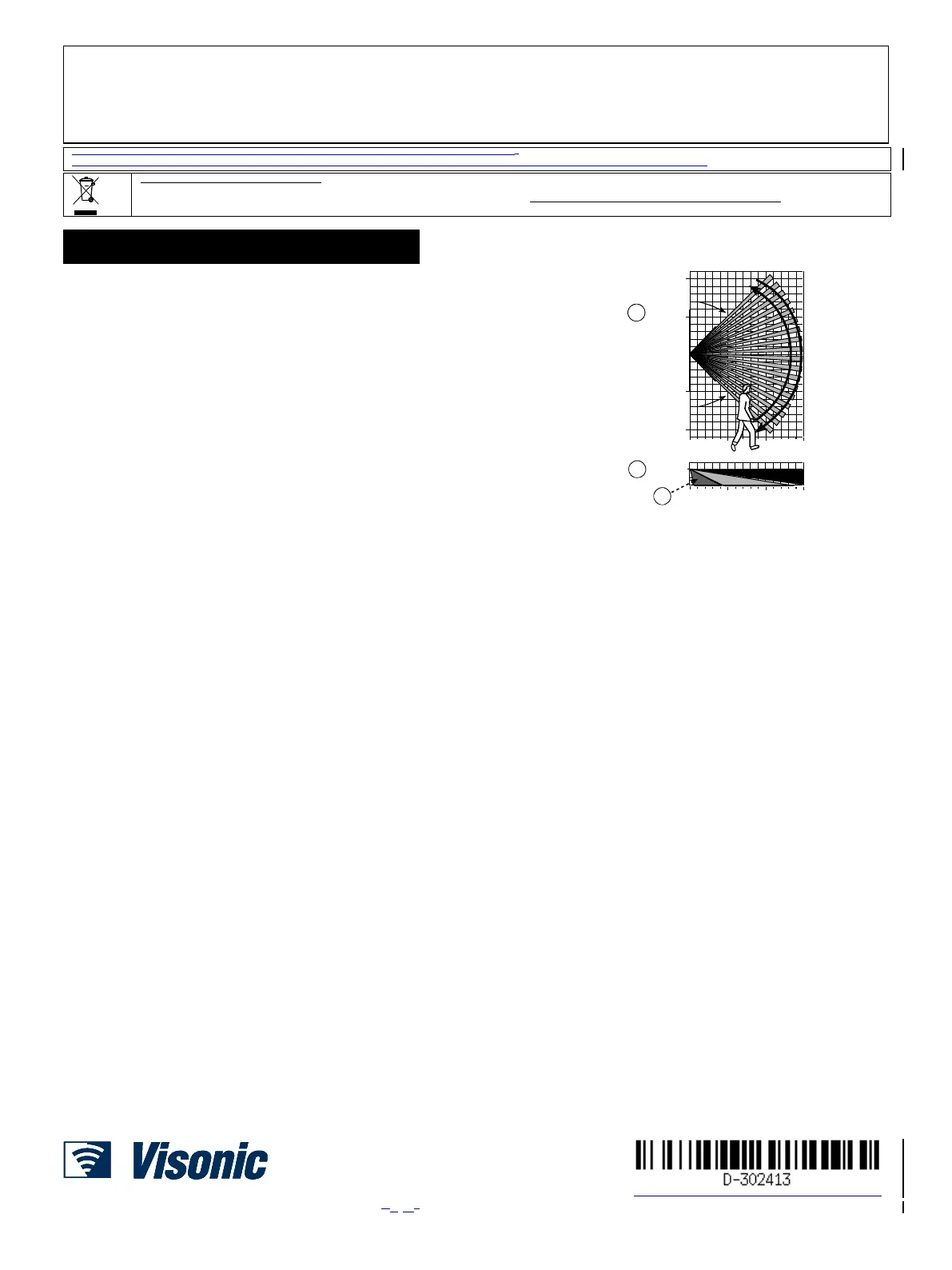

Fig. 5. Coverage Pattern & Walk-test
Dual element low-noise pyroelectric sensor
No. of Curtain Beams / curtains:
Next PG2: 18 far, 18 mid, 10 close.
Next K9-85 PG2: 18 far, 18 mid, 18 close
Note: Lens – Reflex II PIR, Fresnel type lens With Optical
attenuation in the lower part of the lens. Lens material is
High Density Polyethylene (HDPE). Part of Enclosure
Cover (Item 1) and snapped to the Enclosure Base (Item
2) by two tabs and one screw.
15 x 15 m, (49 x 49 ft) / 90°
A. HORIZONTAL VIEW
B. VERTICAL VIEW
C. Next PG2: 0.5-4m, Next K9-85 PG2: 2-4m
Pet Immunity (Next K9-85 PG2
only)
3V Lithium battery, type CR-123A or equivalent
Notes:
1. Use only the above battery type.
2. For UL installations use Gold Peak (GP) CR123A only.
Battery Life (for typical use)
True Motion Event Verification
2 remote selections at panel - LOW, HIGH
Europe and rest of world: 433-434, 868-869 USA: 912-919
Signaling at 4-min. intervals
Reported when a tamper event occurs and in any subsequent message, until the tamper switch is restored
1.8 - 2.4 m (6 - 8 ft). For Next PG2, the recommended height is up to 2.1 m (7 ft)
BR-1: Surface mounted swivel bracket, adjustable 30° down and 45° left/45° right.
BR-2: BR-1 with a corner adapter
BR-3: BR-1 with a ceiling adapter
Note: UL did not evaluate the product with the use of the BR brackets
>20 V/m up to 2000 MHz, excluding inband frequencies
-10°C to 50°C (14°F to 122°F) indoor
Note: UL tested 0°C to 49°C
-20°C to 60°C (-4°F to 140°F)
Average relative humidity of up to approximately 75% non-condensing. For 30 days per year the relative humidity may vary
between 85 % and 95 % non-condensing
Note: For UL installations, relative humidity is 85%.
94.5 x 63.5 x 53.0 mm (3-11/16 x 2-1/2 x 2-1/16”)
U.S. Patents 5,693,943 6,211,522 D445,709 (another patent pending)
EMAIL: info@visonic.com
INTERNET: www.visonic.com
VISONIC LTD. 2014 D-302413 NEXT PG2, NEXT K9-85 PG2 (REV. 4 5, 101/14)
