IFU-01, Rev. A Page 18 of 20

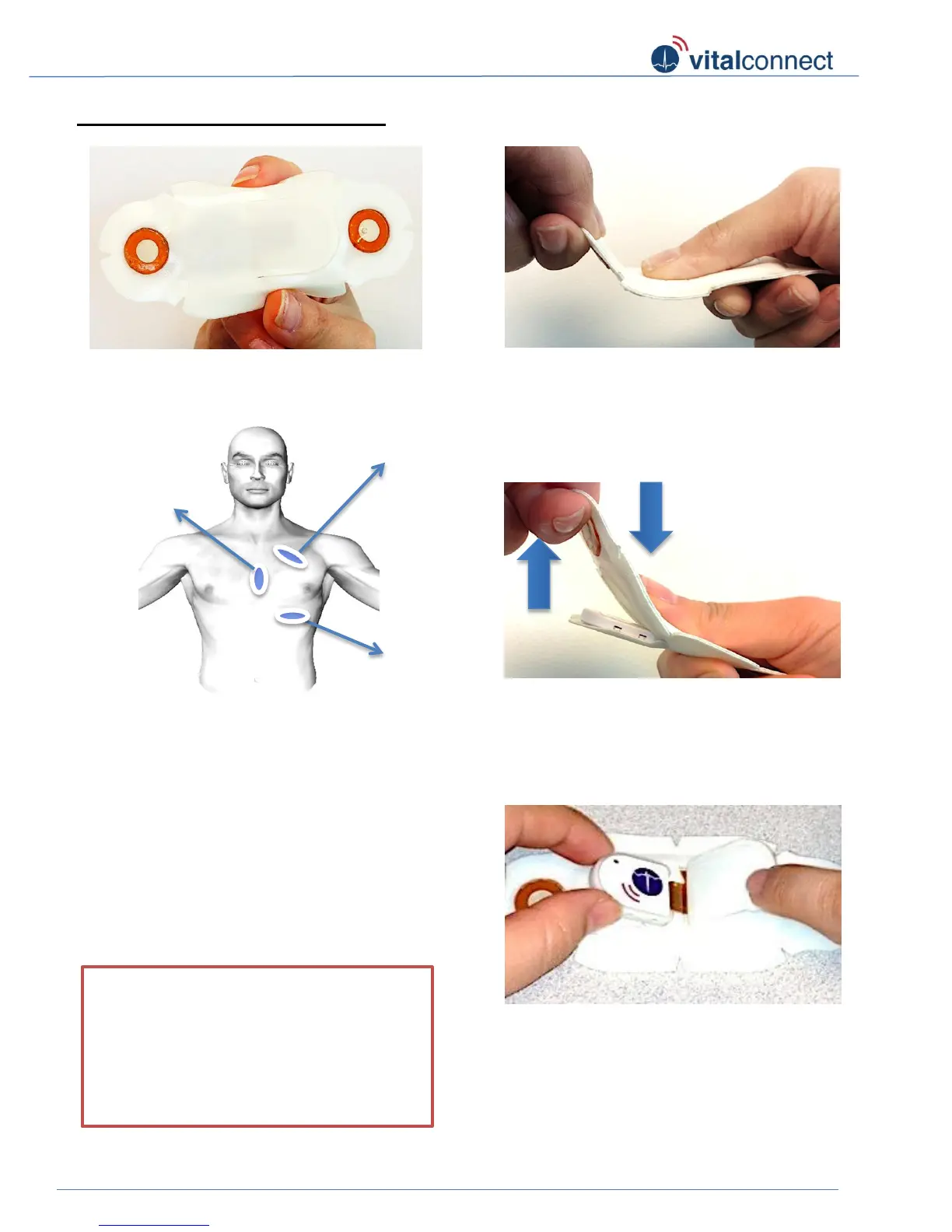

Removing Module from Patch
Figure 11: Remove any patch material
that may be stuck to module and pull
module from connector tongue.
Figure 10: Pull the wing up while pushing
thumb down on module side until sealed
cavity is popped open and module is
revealed. This hand gesture is similar to
“popping” a pill or gum out of a foil packet.
Figure 9: Hold patch securely by the wing
side with 1 hand (pulling upward position).
With the other hand, place thumb on top
edge of the module side.
** To take patch off, lift the edge
off one wing and slowly peel it off
skin.
Figure 8: Please sit upright or stand in front of
a mirror to ensure proper placement of patch
on your chest. Place patch on the left chest in
1 of 3 recommended positions:
1. Upper chest at 45 degree angle
pointing towards the center
2. Center of chest at the sternum
3. Under chest over ribcage pointing to
center of body
Figure 7: Hold patch in one hand with
adhesive side facing you.
