IFU-01, Rev. A Page 17 of 20

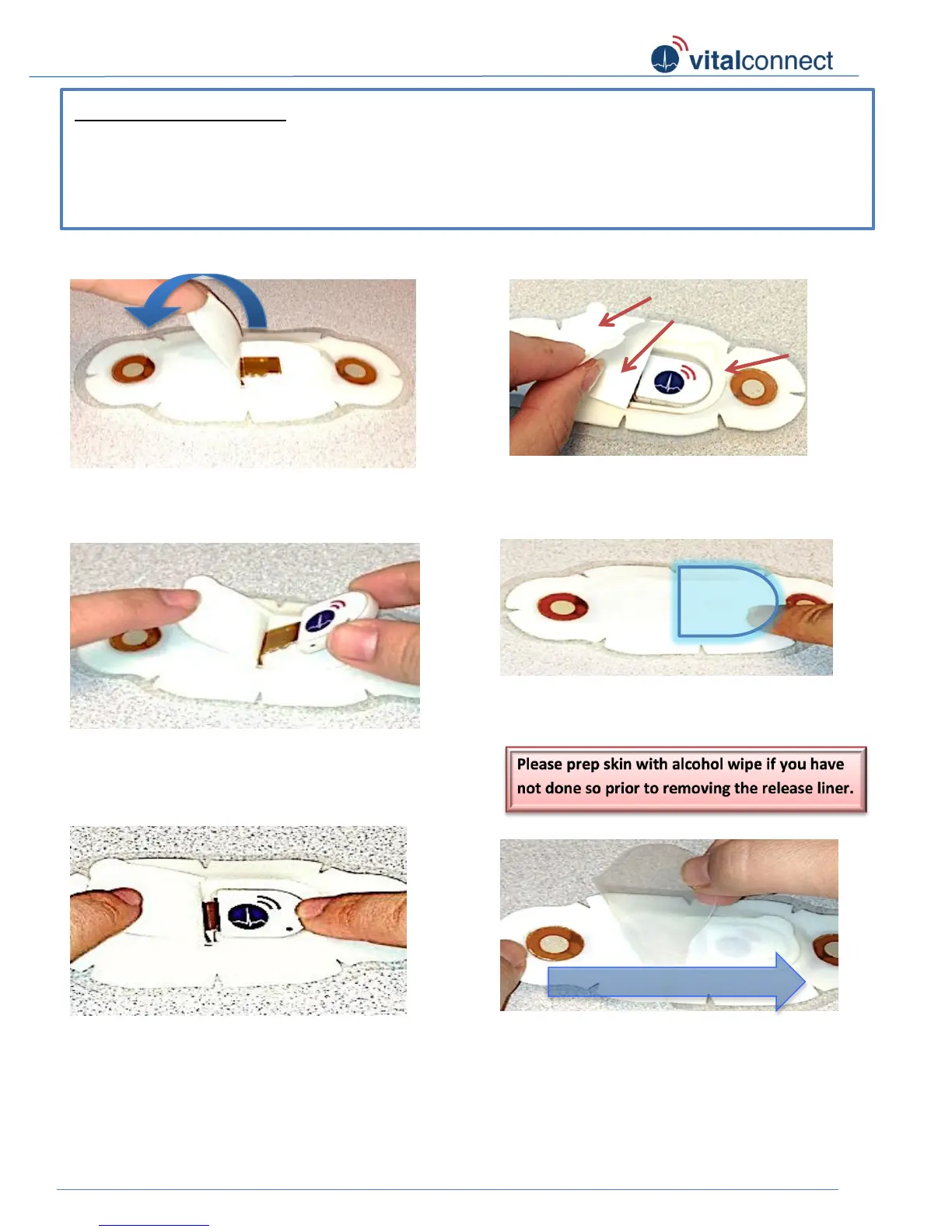

Figure 1: Lift back flap (1) over to opposite side.
Use your finger to hold back flap down.
Figure 2: Insert module into connector tongue
(2). Push module pass a slight resistance until it
can no longer move inward. (Green LED light
will blink with functioning module and patch)
Figure 3: Press module into cavity (3).
Figure 4: Peel paper liner (5) off back flap (1).
Fold back flap (1) onto module cavity adhesive
rim (4) lining up the edges as much as possible.
Figure 5: Press down firmly on the edge of back
flap (1) to ensure it is sealed.
Figure 6: Separate patch from clear release liner
by carefully peeling off clear liner (6). Start from
left (battery side) to right (module side).
Please read before use:
1. Please ensure hand is clean, dry, and non- greasy before handling patch and sensor.
2. It is recommended for men with long chest hair to trim or shave at least several hours before
application.
3. It is recommended that you stand or sit upright and use a mirror when applying patch to chest.
