Vitalograph COMPACT - Instructions for Use
1 Flowhead Complete
2 Flowhead End Cap
3 Flow Conditioning Mesh
4 Fleisch element Assembly
5 ‘O’ Rings
6 Pressure Tapping
7 Flowhead Cone
1 MIP/MEP end cap
2 MIP/MEP one way valve
3 MIP/MEP cone
4 One-way valve hard plastic
housing
5 Soft silicone one-way valve

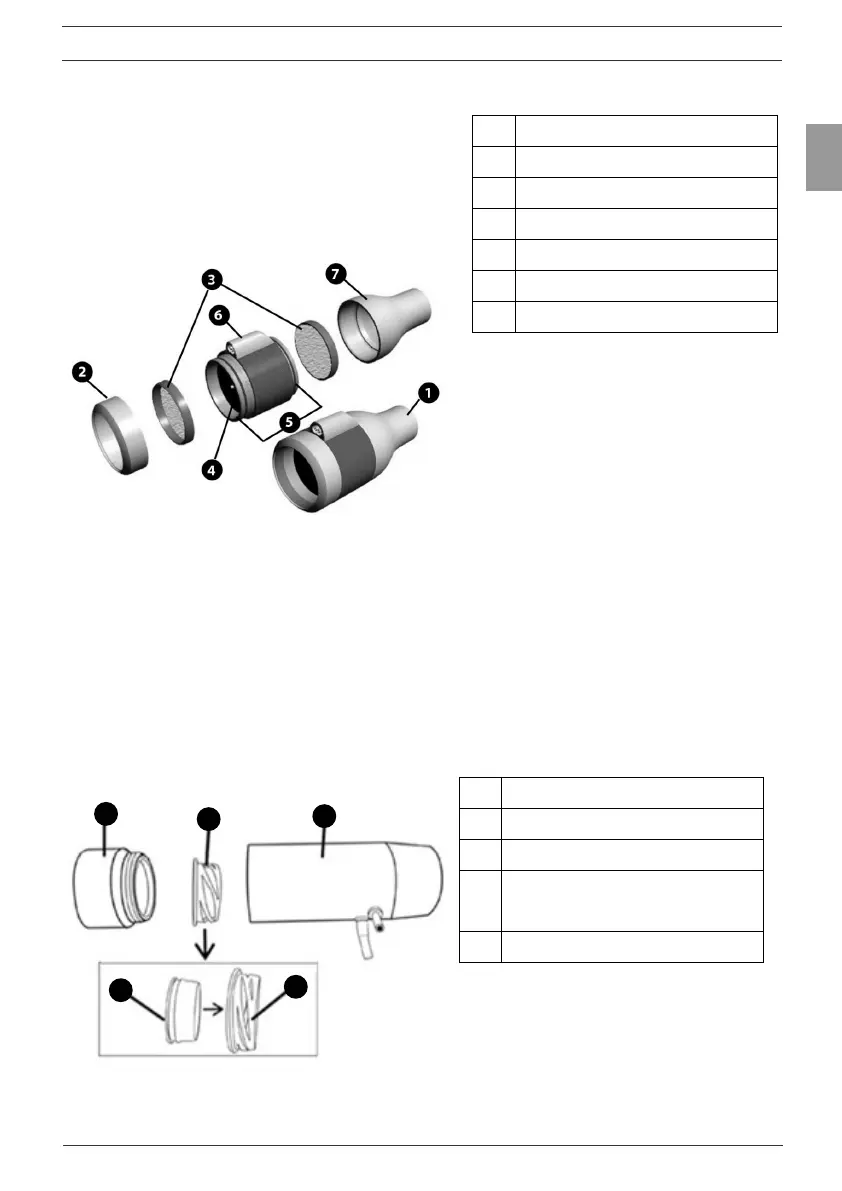

Figure 3: Fleisch Flowhead Assembly
MIP/MEP Flowhead:
Visual inspection is recommended on a routine basis. Unscrew the MIP/MEP
end cap from the cone. Remove the one-way valve from the cone and examine
it for damage. If damaged, discard and replace with a new part (Reference
Section 10. Consumables and Accessories). Carefully separate the hard plastic
housing from the soft silicone one-way valve, avoiding damage to the one-way
valve.
Figure 4: MIP/MEP Flowhead Assembly
1
2
3
4
5
