1.2 - TRANSPORT
Unpacking / Installing mySelective.com
CHAPTER 1 3
1.2.3 LIFTING WITH FORKLIFT
When the transporting straps are removed, the mySelective.com can be placed on the place the
customer has provided.
To lift and transport the mySelective.com use the positions as shown in the installation sheet at
the end of this document.

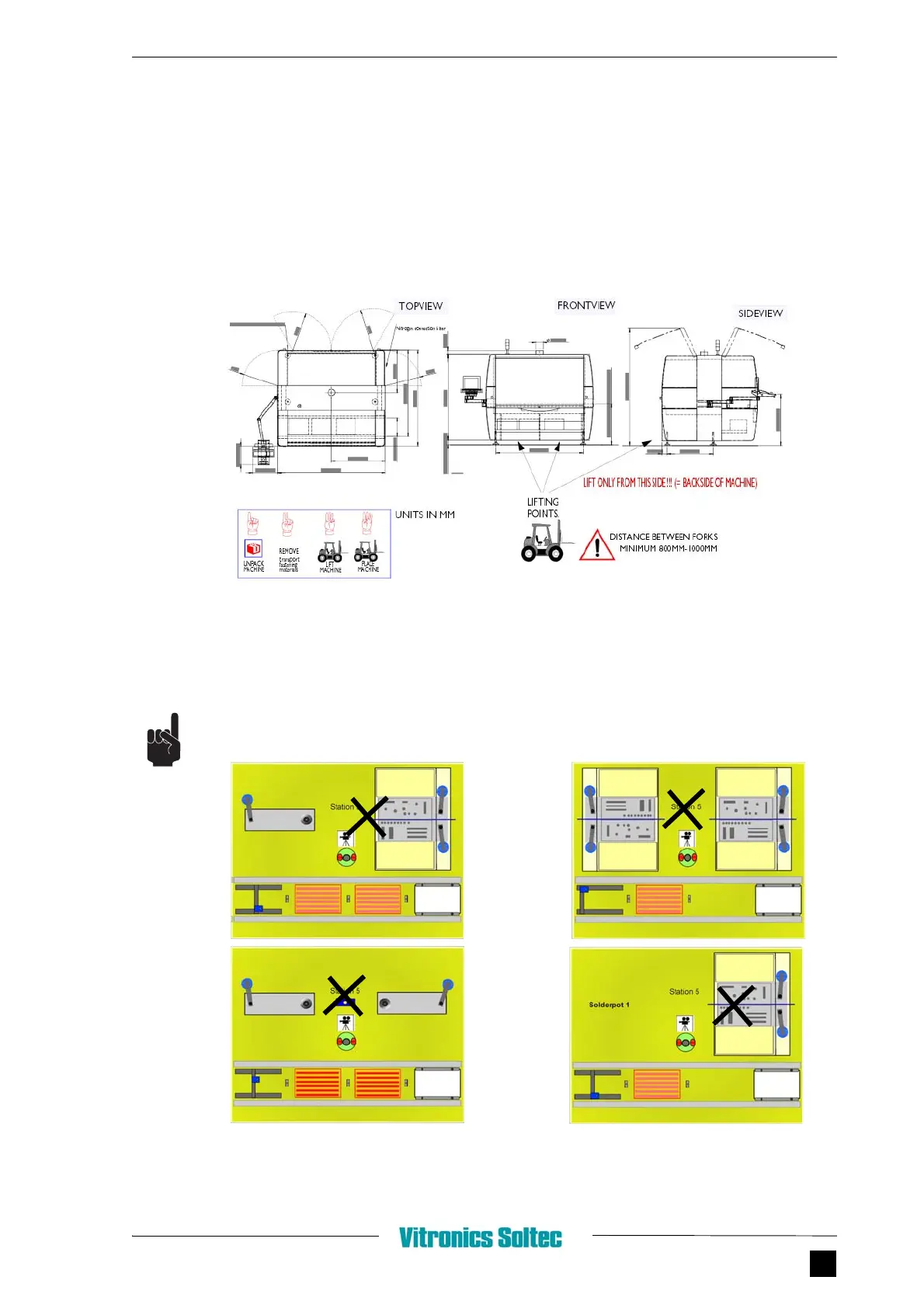

FIGURE 1.3 LIFT POSITIONS
1.2.4 CENTRE OF GRAVITY
Depending on the machine configuration, and empty or filled solderpot(s), the Centre of Gravity
will vary. Below 4 examples. Note: these examples are illustrative!
FIGURE 1.4 CENTRE OF GRAVITY
