Vitronics Soltec mySelective 6748 - Page 20

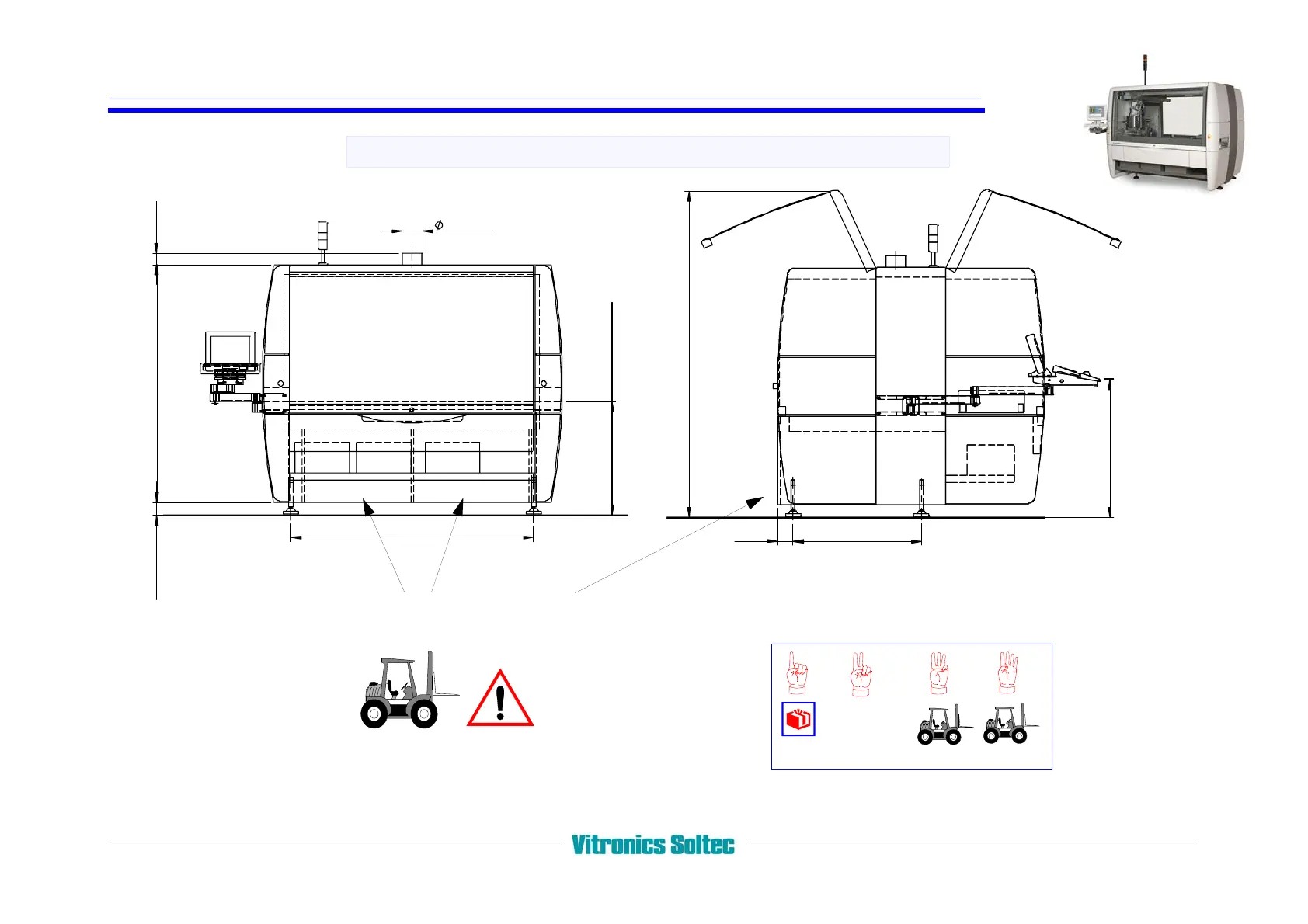

FRONT AND SIDE VIEW 6748
Transp.height 900 -25/+50 (35.4"-1"/+2")
160 (6.3")
1880 (74")
100 -25/+50 (3.9"-1"/+2") 90 (3.5")
1920 (75.6")
ca.1120 (44")
ca.2600 (102.4")
1013 (39.9")121 (4.8")
LIFTING
DISTANCE BETWEEN FORKS
POINTS.
MINIMUM 800MM-1000MM
LIFT ONLY FROM THIS SIDE !!! (= BACKSIDE OF MACHINE)
UNITS IN MM
UNPACK
MACHINE
MACHINE
LIFT
MACHINE
PLACE
REMOVE
transport
fastening
materials
Installation sheet
mySelective.com
