Vivid Veloblade Volta - Adjusting Cutting Speed; Manual Blade Depth Adjustment

7

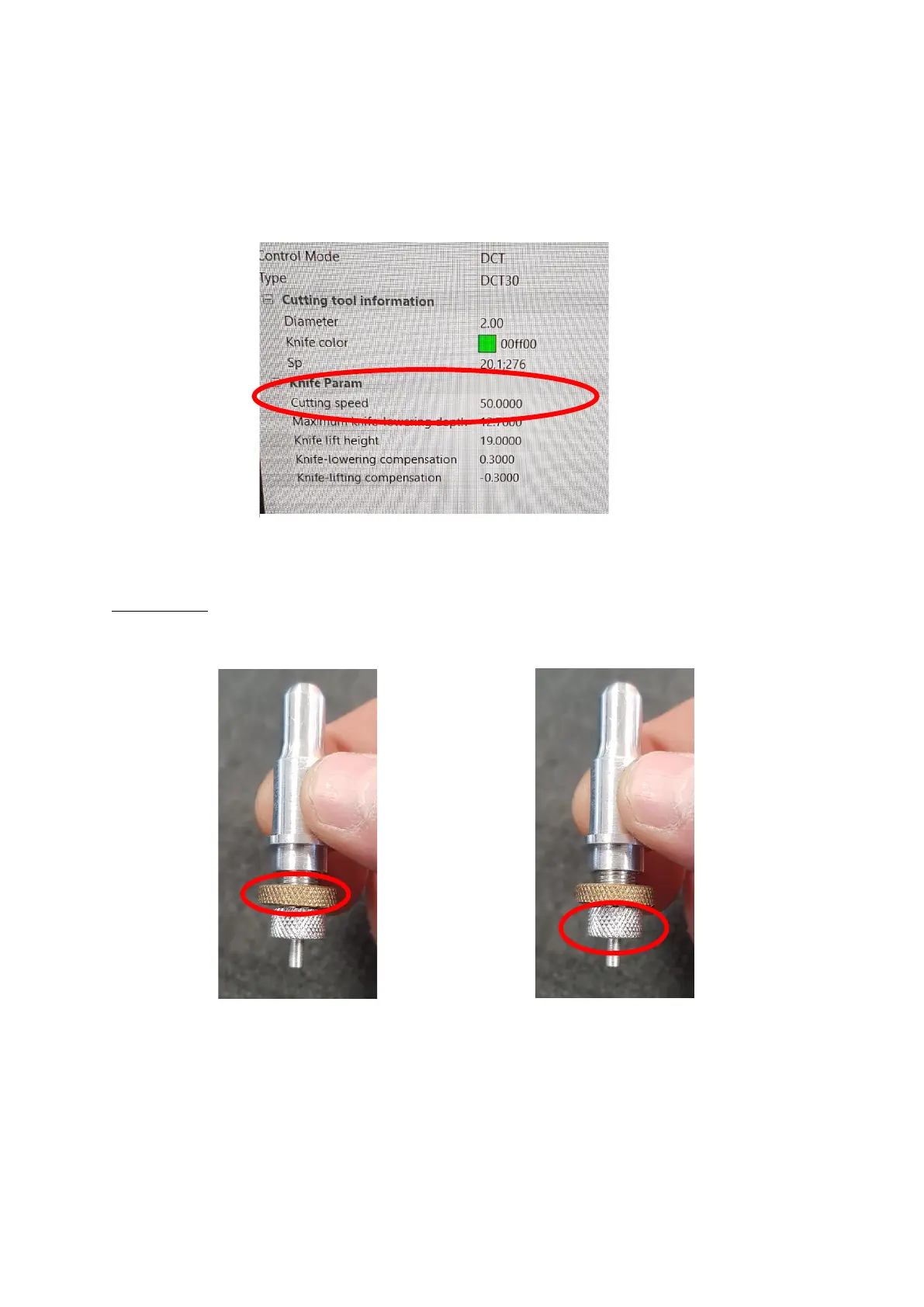

Select the tool position for the tool you want to change the speed for, alter to
the desired speed [figure 3.4]. For creasing, if the speed is to high it can cause
cracking on coated stocks.
Click save and close the window.
PRCT/RCT:
Changing the depth of the blade on these tools is done manually.
Remove the tool from its tool position, loosen the brass locking nut [Figure 3.8]
and turn the top knurled knob for more or less blade [Figure3.9].
Figure 3.4
Figure 3.8
Figure 3.9
