Vivid Veloblade Volta - Page 9

8

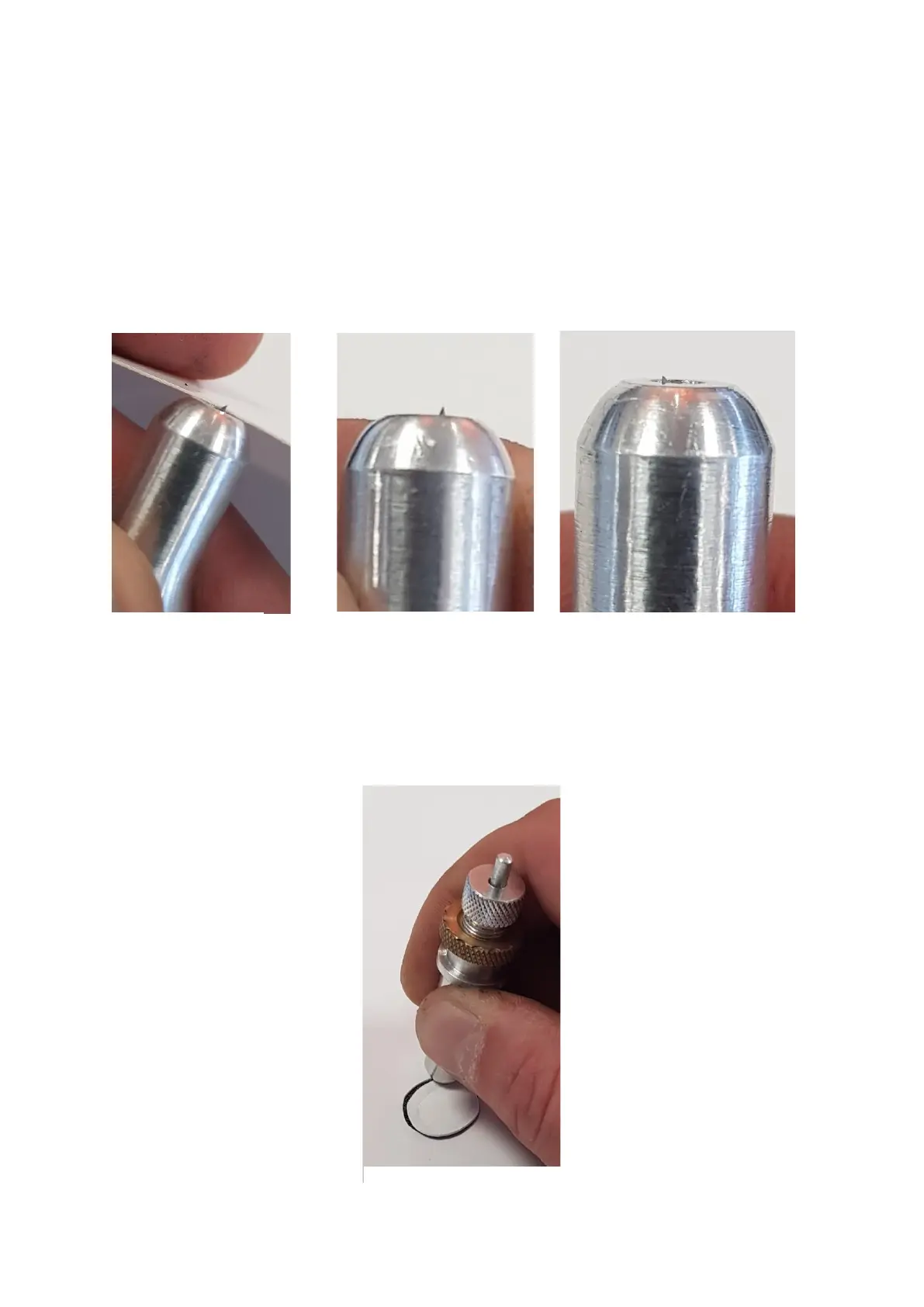

Too much blade showing and it will leave a rough cut. To get the correct
amount of blade for a through cut hold the material you wish to cut at the end
of tool holder near the blade [Figure 3.10] and adjust the blade to the required
depth.
For Kiss cutting on materials [i.e. crackback, vinyl] the blade depth needs to be
minimal, see the difference between figure 3.11 [Set for through cut] and
figure 3.12 [set for kiss cutting].
Manually test the tool to check if the blade is at the correct height, hold the
tool firmly and straight, While applying a substantial amount of pressure draw
Figure 3.10
Figure 3.11
Figure 3.12
Figure 3.13
