DLP Projector – User’s Manual

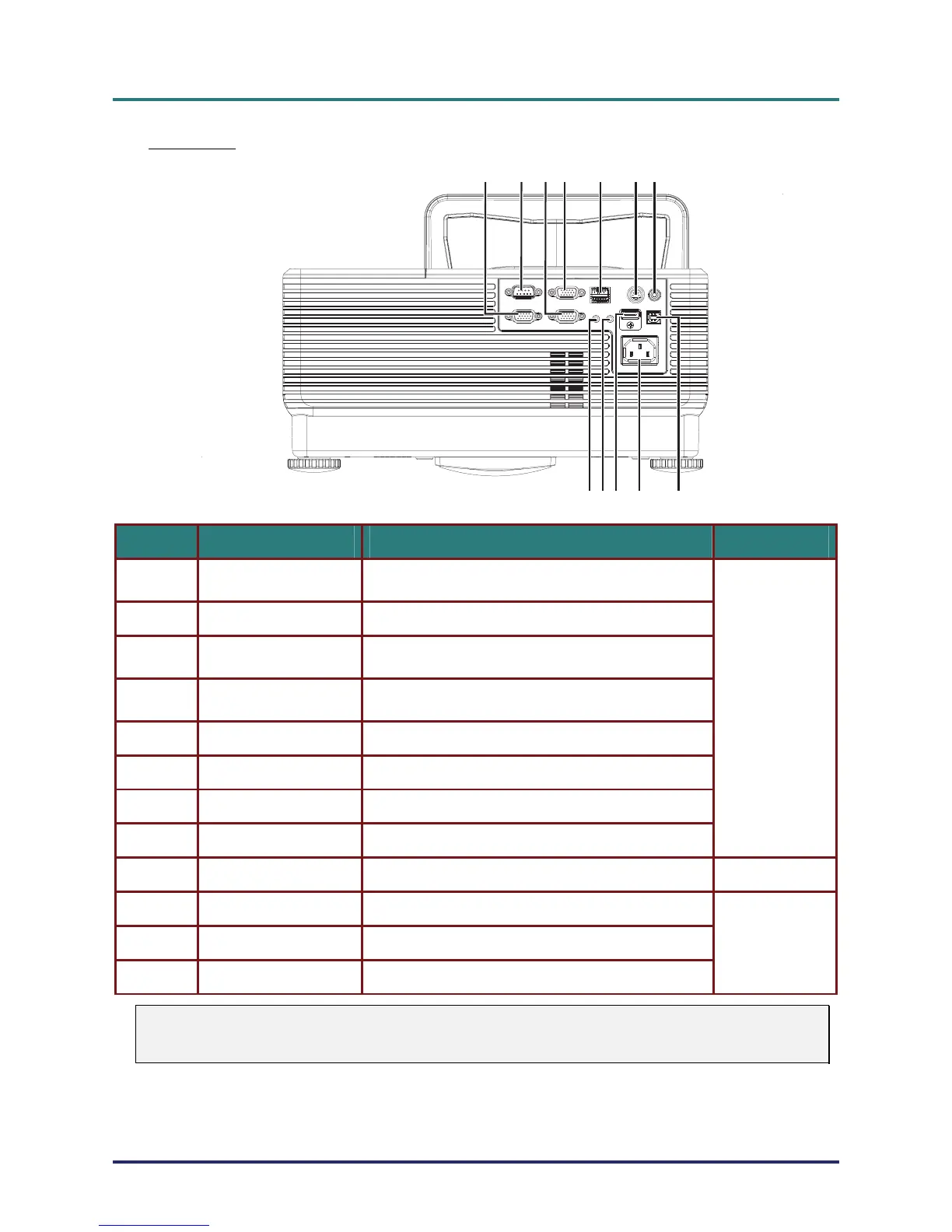

Rear view
1
2
3
4
5
6
7
89
12
1
1
1
0
ITEM LABEL DESCRIPTION SEE PAGE:
Connect the RGB CABLE to a display
(Loop Thru only for VGA IN-1)
1.
VGA OUT
2.
RS-232 Connect RS-232 serial port cable for remote control
Connect the RGB CABLE from a computer and
components
3.
VGA – 1
Connect the RGB CABLE from a computer and
components
4.
VGA – 2
9
5.
RJ – 45 Connect a LAN CABLE from Ethernet
6.
S-VIDEO IN Connect the S-VIDEO CABLE from a video device
7.
VIDEO IN Connect the COMPOSITE CABLE from a video device
8.
USB Connect the USB CABLE from a computer
109.
AC IN Connect the POWER CABLE
10.
HDMI Connect the HDMI
– 3 –
TM TM
CABLE from a HDMI
TM
device
11.
AUDIO IN Connect an audio cable from the input device
9
12.
AUDIO OUT Connect an audio cable from the output device
Note:
If your video equipment has various input sources, it is recommended to connect in priority of
HDMI
TM
/DVI, component (thru VGA), S-Video, Composite for better picture quality.
