Vivo DESK-E3CTBC - Install Connector Brackets

17
B-STEP 7: Install Connector Brackets

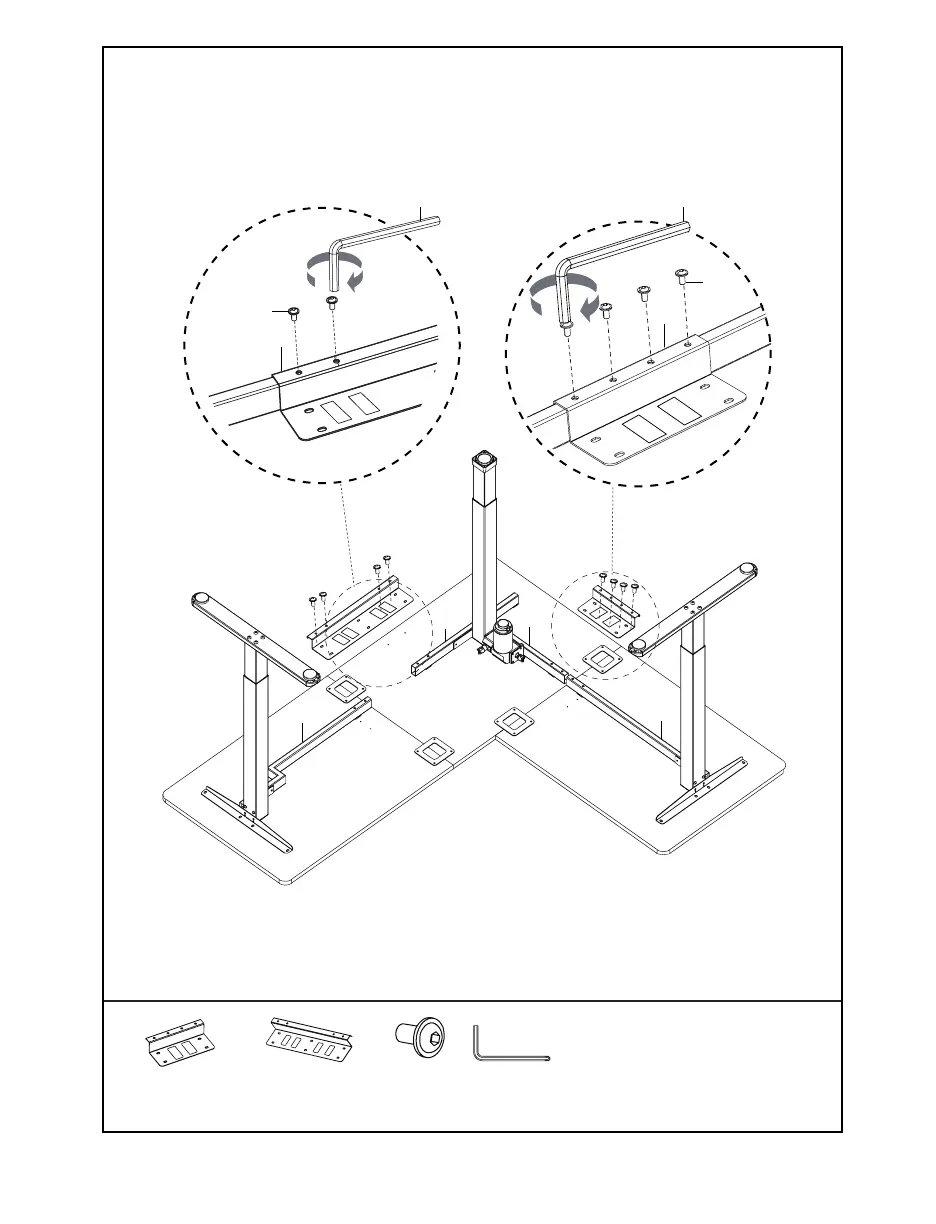

Begin connecting frame to desktop by placing assemblies on desktop as shown below. Connect
Angled Right Crossbar (G) and Right Crossbar (F) to Long Connector Bracket (N), M6x8mm
Screws (S-A), and 5mm Allen Wrench (T-A). Connect Short Le Crossbar (E) and Le Crossbar
(D) to Short Connector Bracket (M), M6x8mm Screws (S-A), and 5mm Allen Wrench (T-A).
S-A x8)
M6x8mm
Screw
M x1)
Short Connector
Bracket
N x1)
Long Connector
Bracket
T-A
5mm Allen
Wrench
G
F
M
D
E
S-A
T-A T-A
N
S-A
