Vivo DESK-E3CTC-75-A - Page 7

7
F (x1)
Long Corner
Crossbar
E (x1)
Short Corner
Crossbar
K (x1)
Motorized Leg
R (x2)
Foot
S-B (x8)
M6x35mm Screw
T-A
5mm Allen
Wrench
S-A x4)
M6x8mm Screw

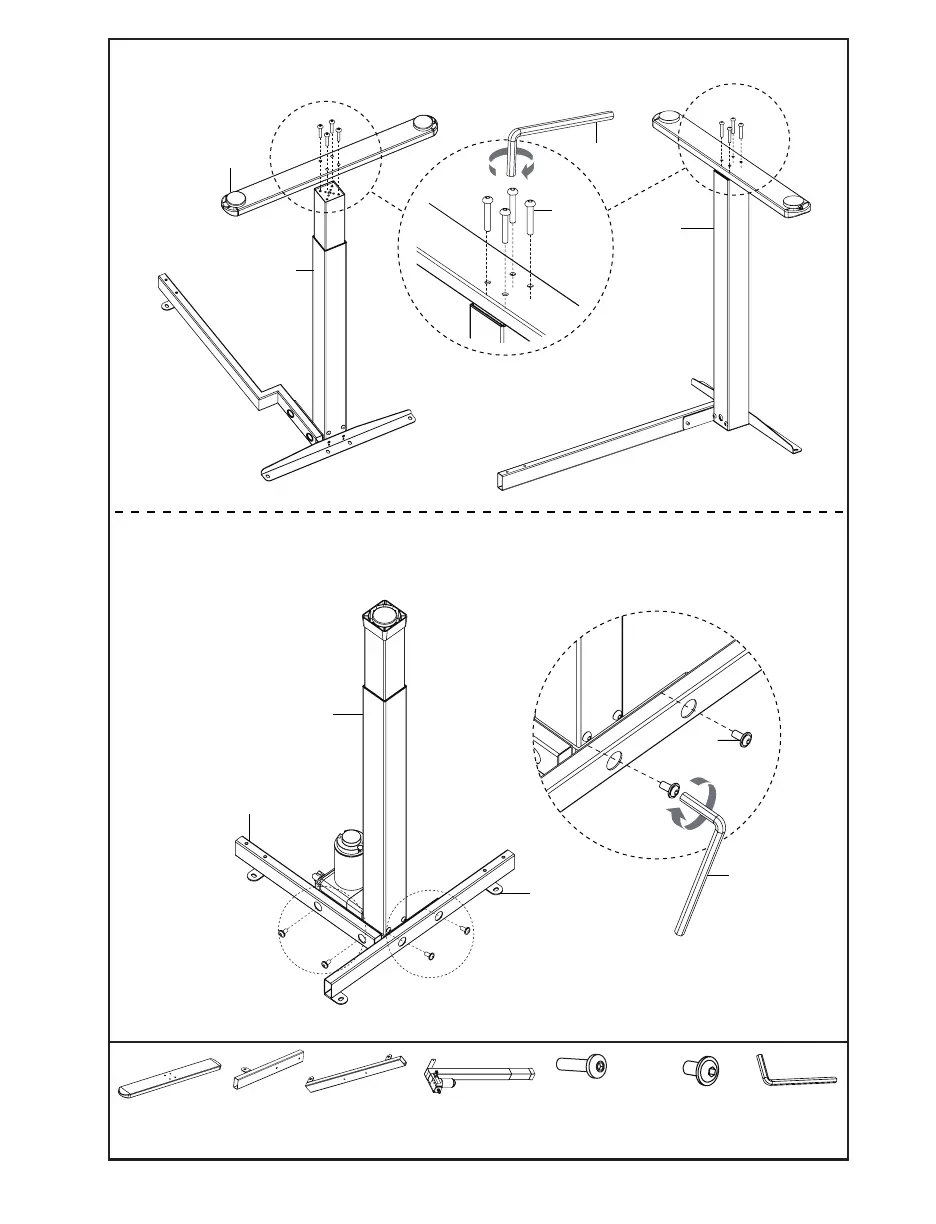

STEP 3: Install Feet & Connect Motorized Leg
Attach Feet (R) to Le and Right Legs (M,L) using M6x35mm Screw (S-B) and 5mm Allen
Wrench (T-A).
R
L
S-B
M
T-A
Connect Short Corner Crossbar (E) and Long Corner Crossbar (F) to Motorized Leg (K) using
M6x8mm Screws (S-A) and 5mm Allen Wrench (T-A).
K
E
F
S-A
T-A
