1. Align the inner side of the black cover with the notches on both sides of the lens, x the
black cover.
2. If you choose to feed the cable through the ceiling/wall, arrange the cable neatly through
the cable hole. If you choose to feed the cable from the side, remove plate B.

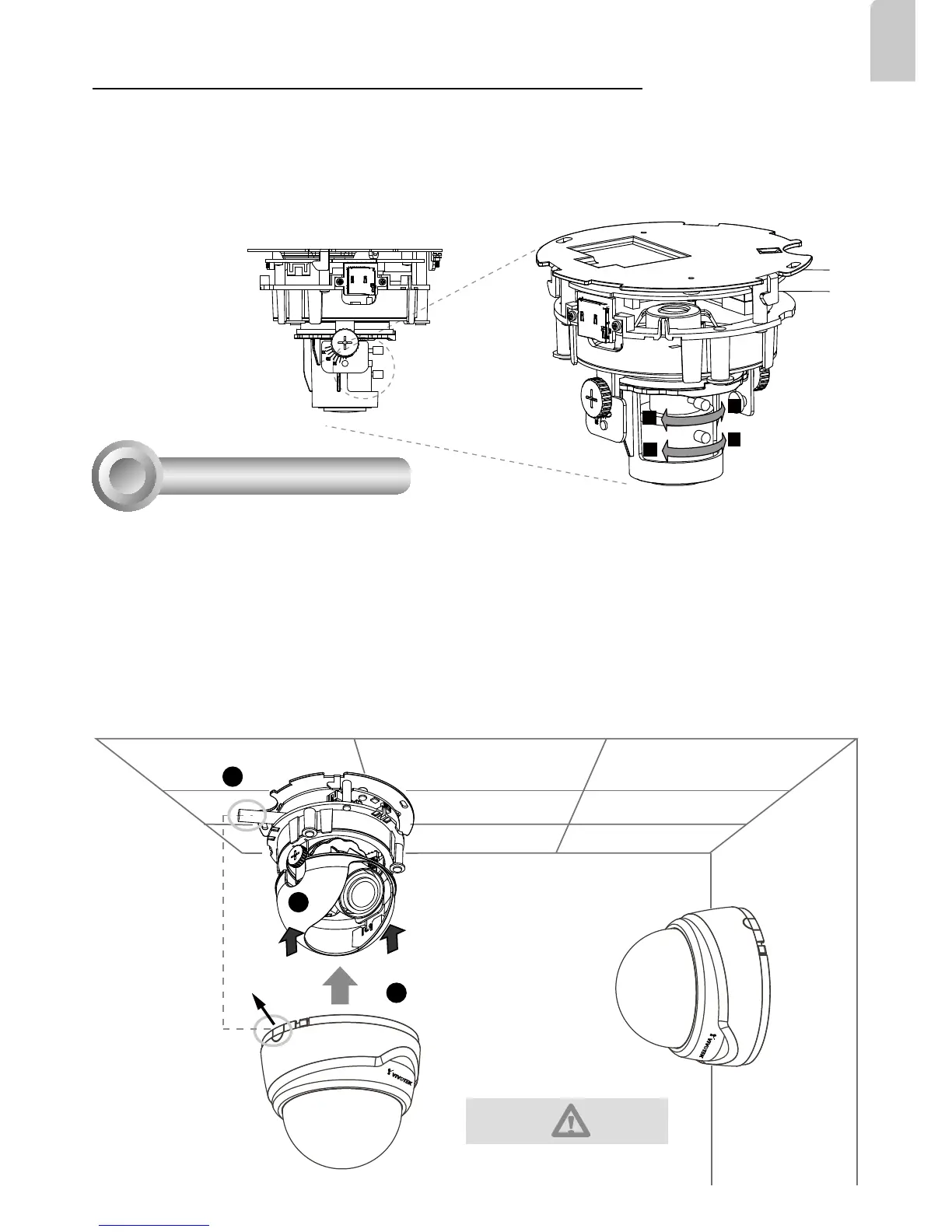

3. Attach the dome cover to the camera as shown below. The dome cover cannot be
attatched if installed in the wrong orientation. Align the side cover (or side cutout) with
where the cable comes out from the camera. Push the dome cover to join with the
camera.
4. Finally, make sure all parts of the camera are securely installed.
Completion
8
2
1
B
3
Be aware of the cable route!
W
T
8
N
To adjust the zoom factor and focus range
1. Loosen the zoom controller and then adjust zoom factor by moving the controller left
and right. Upon completion, tighten the zoom controller screw.
2. Loosen the focus controller and then adjust focus range by moving the controller left
and right. Upon completion, tighten the focus controller screw.
