Model FD8338-HV
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128 M B
RAM 256MB
Camera Features
Image Sensor 1/3" Progressive CMOS
Maximum Resolution 1280x800
Lens Type Vari-focal, Manual Focus
Focal Length f = 2.8 ~ 12 mm
Aperture F1.8 ~ F2.85
Auto-iris P-Iris
Field of View 33° ~ 87° (Horizontal)
21° ~ 54° (Vertical)
39° ~ 110° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Pro
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination 0.27 Lux @ F1.8 (Color)
0.001 Lux @ F1.8 (B/W)
Pan/tilt/zoom Functionalities ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators Built-in IR illuminators, effective up to 30 meters
with Smart IR
IR LED*6
On-board Storage MicroSD/SDHC/SDXC card slot
Video
Compression H.264, MJPEG
Maximum Frame Rate H.264:
30 fps @ 1280x800
MJPEG:
30 fps @ 1280x800
Maximum Streams 3 simultaneous streams
S/N Ratio Above 61 dB
Dynamic Range 110 dB
Video Streaming Adjustable resolution, quality and bitrate
Image Settings Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white
balance, exposure control, gain, backlight compensation,
privacy masks, Scheduled profile settings, 3D noise reduction,
seamless recording
Audio
Audio Capability Audio input/output (full duplex)
Compression G.711, G.726
Interface External microphone input
Audio output
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP,
SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,
802.1X
Interface 10Base-T/100 BaseTX Ethernet (RJ-45)

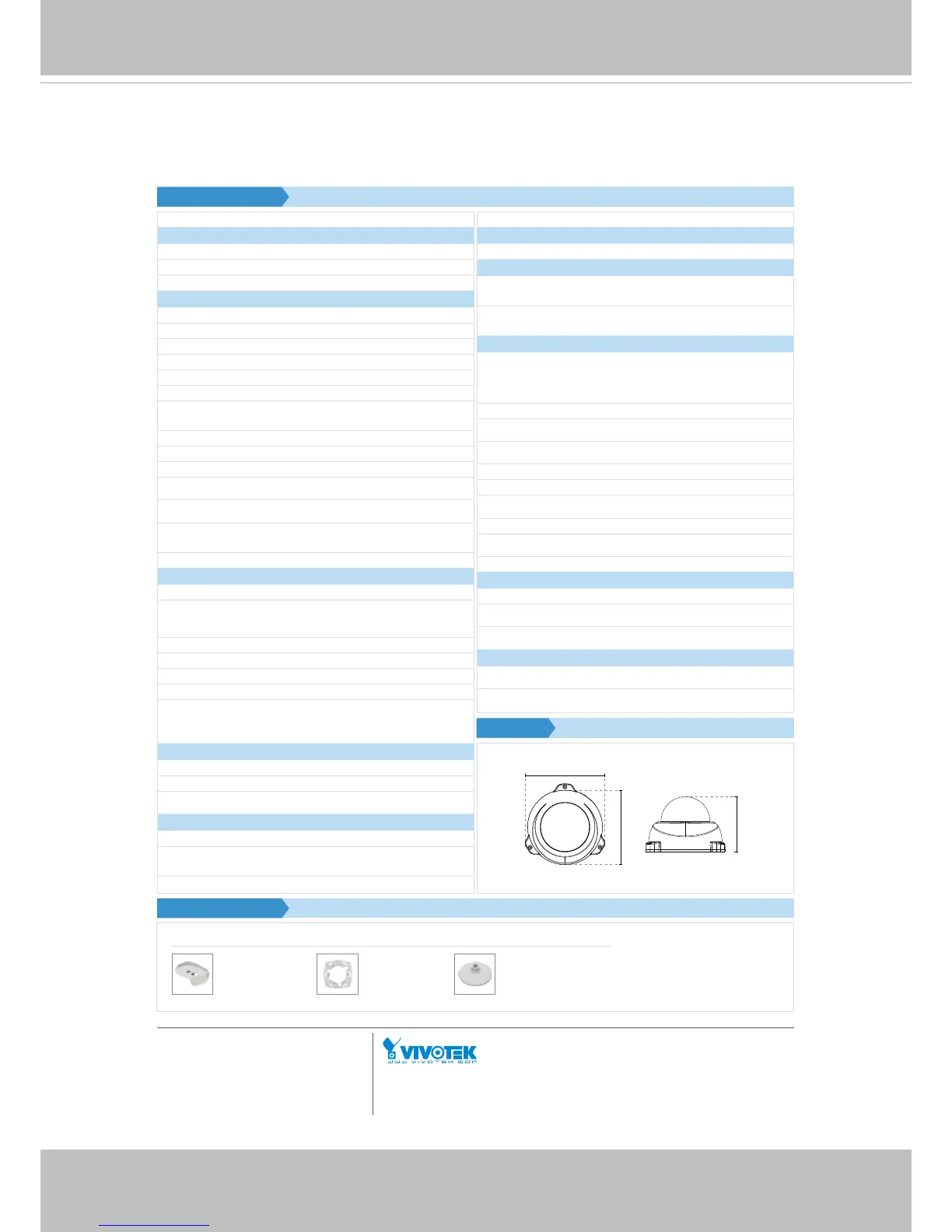

Technical Specifications
Compatible Accessories
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Triple-window video motion detection
Alarm and Event
Alarm Triggers Video motion detection, manual trigger, digital input,
periodical trigger, system boot, recording notification, camera
tampering detection, audio detection
Alarm Events Event notification using digital output, HTTP, SMTP, FTP and
NAS server
File upload via HTTP, SMTP, FTP and NAS server
General
Connectors RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input IEEE 802.3af PoE
DC 12V
Power Consumption PoE: Max. 9.7 W
DC 12V: Max. 9.96 W
Dimensions Ø: 141 x 103 mm
Weight Net: 836g
Casing Weather-proof IP66-rated housing
Vandal-proof IK10-rated metal housing
Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL
Operating Temperature Starting Temperature: -10°C ~ 50°C (14°F~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F~ 122°F)
Warranty 36 months
System Requirements
Operating System Microsoft Windows 8/7/Vista/XP/2000
Web Browser Mozilla Firefox 7~10 (Streaming only)
Internet Explorer 7.x or 8.x, 9.x, 10.x
Other Players
VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD User's manual, quick installation guide, Installation Wizard 2,
ST7501 32-channel recording software
Others Quick installation guide, warranty card, alignment sticker/
desiccant bag, waterproof connector
Dimensions
Mounting Kits
AM -215
L Shape Bracket
AM-517
Adaptor Ring
AM-520
Mounting Adapter
Ø163 mm
Ø141 mm
103 mm
