Vivotek FD8138-H - Technical Specifications

VIVOTEK
322 - User's Manual

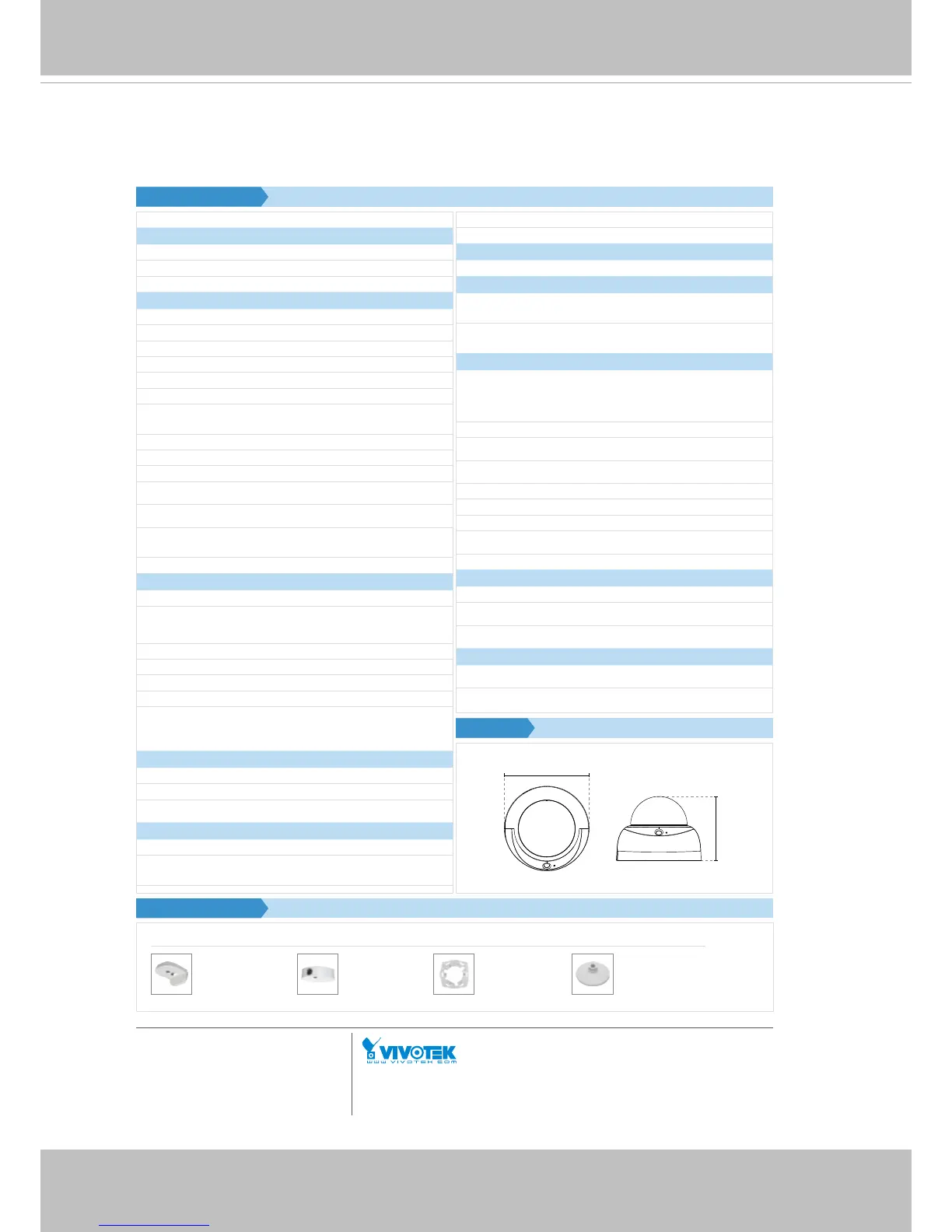

Technical Specications
6F, No.192, Lien-Cheng Rd., Chung-Ho,
New Taipei City, 235, Taiwan, R.O.C.
T: +886-2-82455282 F: +886-2-82455532
E: sales@vivotek.com
VIVOTEK INC.
2050 Ringwood Avenue,
San Jose, CA 95131
T: 408-773-8686 F: 408-773-8298
E: salesusa@vivotek.com
VIVOTEK USA
Randstad 22-133, 1316BW Almere,
The Netherlands
T: +31(0)36-5298-434
E: saleseurope@vivotek.com
Ver. 4
Distributed by:
All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved.
VIVOTEK Europe
Model FD8138-H
System Information
CPU MultimediaSoC (System-on-Chip)
Flash 128MB
RAM 256MB
Camera Features
Image Sensor 1/3" ProgressiveCMOS
MaximumResolution 1280x800
Lens Type Vari-focal, Manual Focus
Focal Length f = 2.8 ~ 12 mm
Aperture F1.8 ~ F2.85
Auto-iris P-Iris
Field of View 33° ~ 87° (Horizontal)
21° ~ 54° (Vertical)
39° ~ 110° (Diagonal)
ShutterTime 1/5 sec. to 1/32,000sec.
WDR Technology WDR Pro
Day/Night Removable IR-cut filter for day & nightfunction
Minimum Illumi
nation 0.27 Lux @ F1.8(Color)
0.001 Lux @ F1.8 (B/W)
Pan/tilt/zoom Functionalities ePTZ:
48x digitalzoom (4x on IE plug-in, 12xbuilt in)
IR Illuminators Built-in IR illuminators, effective up to 30 meters
with Smart IR
IR LED*6
On-board Storage MicroSD/SDHC/SDXC card slot
Video
Compression H.264, MJPEG
MaximumFrameRate H.264:
30 fps @ 1280x800
MJPEG:
30 fps @ 1280x800
MaximumStreams 3 simultaneous streams
S/N Ratio Above 61 dB
Dynamic Range 110 dB
Video Streaming Adjustable resolution, qu
ality and bitrate
Image Settings Time stamp, textoverlay, flip & mirror
Configurablebrightness, contrast, saturation, sharpness,white
balance, exposurecontrol, gain, backlightcompensation,
privacy masks, Scheduled profile settings, 3D noise reduction,
seamless recording
Audio
AudioCapability Audio input/output (full duplex)
Compression G.711, G.726
Interface Built-in microphone
Audiooutput
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/IP, HTTP, HT
TPS, UPnP, RTSP/RTP/RTCP, IGMP,
SMTP, FTP, DHCP, NTP, DNS,DDNS, PPPoE, CoS, QoS, SNMP,
802.1X
Technical Specifications
Compatible Accessories
Interface 10Base-T/100 BaseTX Ethernet (RJ-45)
ONVIF Supported, specificationavailable at www.onvif.org
Intelligent Video
Video Motion Detection Triple-window video motion detection
Alarm and Event
Alarm Triggers Video motion detection, manual trigger, digital input,
periodicaltrigger, system boot, recording notification,camera
tamperingdetection, audio detection
Alarm Events Event notification using digital output,HTTP, SMTP, FTP and
NAS server
File upload via HTTP, SMTP
, FTP and NAS server
General
Connectors RJ-45 cable connector for Network/PoEconnection
Audiooutput
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power andstatus indicator
Power Input IEEE 802.3af PoE
DC 12V
Power Consumption PoE: Max. 9.7 W
DC 12V: Max.9.96 W
Dimensions Ø: 135 x 102mm
Weight Net: 512g
Safety Certifications CE, LVD, FCC Class B, VCCI,C-Tick, UL
Operating Temperature Starting Temperature: -10°C ~ 50°C (14°F~ 122°F)
Working Temperature
: -20°C ~ 50°C (-4°F~122°F)
Warranty 36 months
System Requirements
Operating System Microsoft Windows 8/7/Vista/XP/2000
Web Browser Mozilla Firefox 7~10 (Streaming only)
Internet Explorer 7.x or 8.x, 9.x,10.x
Other Players VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD User's manual,quickinstallationguide, Installation Wizard 2,
ST7501 32-channelrecording software
Others Quick installation guide, warranty card, alignment sticker/
desiccant bag, waterproof conne
ctor
Dimensions
Mounting Kits
AM-215
L Shape Bracket
AM-712
Conduit Box
AM-517
Adaptor Ring
AM-520
Mounting Adapter
Ø135 mm
102 mm
