Vivotek FD8138-H - Page 8

VIVOTEK
8 - User's Manual

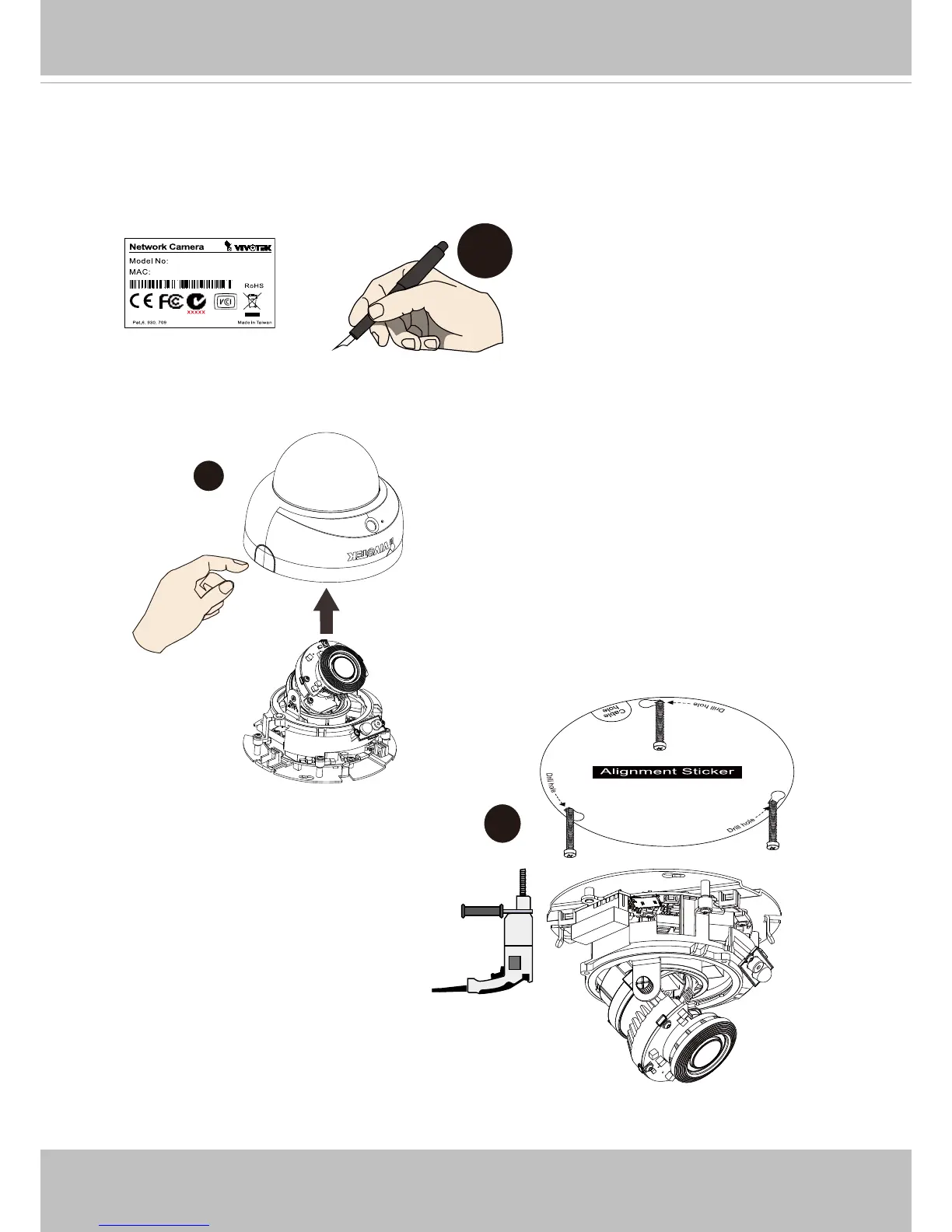

Installation (FD8138-H)
0002D10766AD
FD8138-H
1
1. Jot down the MAC address of the camera for later reference.
2. Press the release button on the side to remove the top cover.
2
3
3. Attach the alignment sticker to wall,
and drill holes on it. Fasten 3 screws
half-way into the wall.
