VIVOTEK
6 - User's Manual

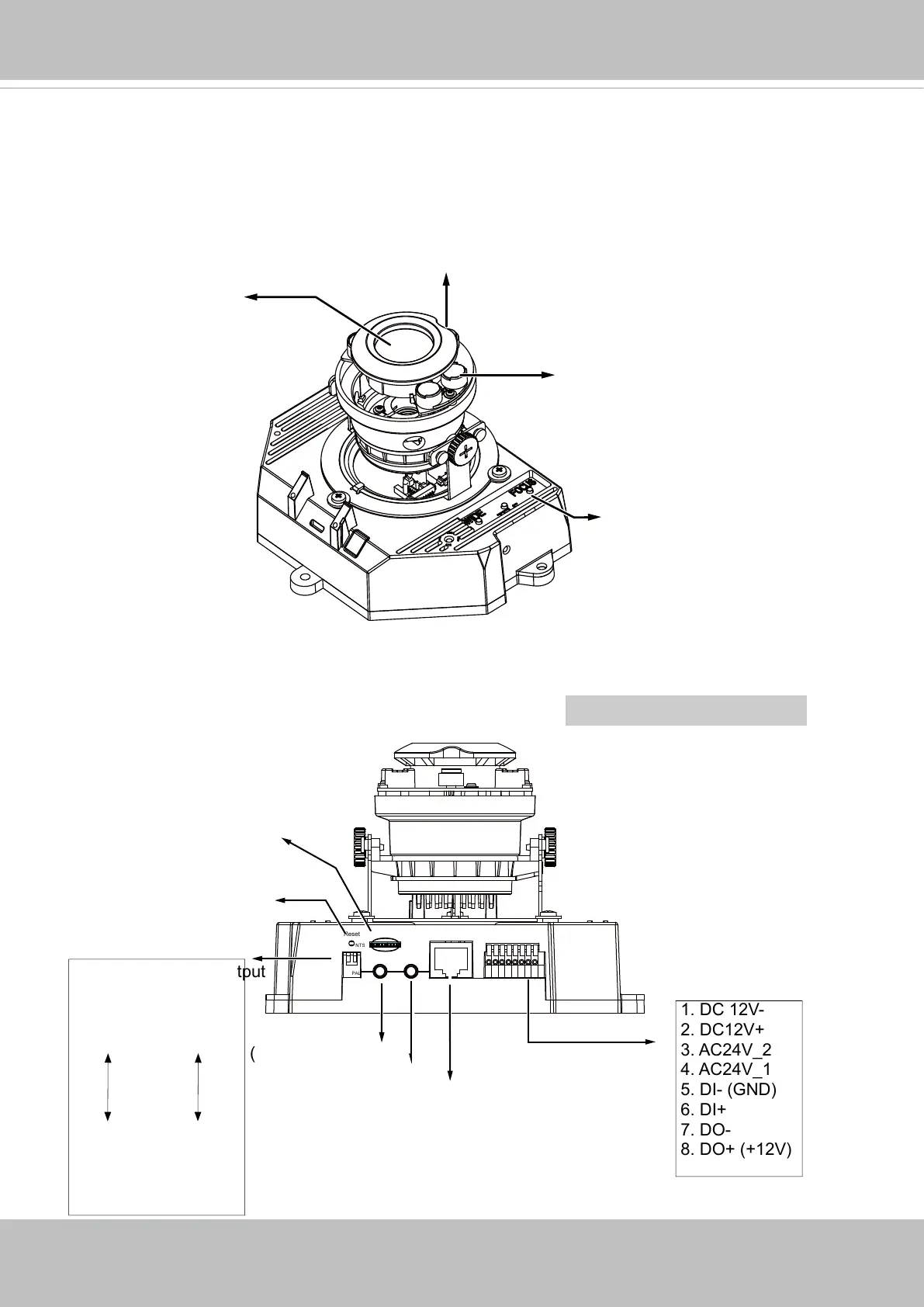

Physical Description
Inner View
1
2
3
7
4
5
8
6
Ethernet
Micro SD Card
Audio In
AV Out
Reset
NTS
C
PAL
Camera Front View
Camera Rear View
Light Sensor
1. DC 12V
-
2. DC12V+
3. AC24V_2
4. AC24V_1
5. DI- (GND)
6. DI+
7. DO-
8. DO+ (+12V)
Microphone In (pink)
Audio/Video Out
(
green)
Jumpers
Microphone
Video Ou
tput
internal
external
NTSC 60Hz
PA
L
50Hz
1
2
Reset Button
The max. output load from pins
#7 and 8 is 50mA.
NOTE:
MicroSD/SDHC/SDXC Card Slot
IR LEDs (4 units, effective up to
30m)
Focus & Zoom Buttons
V
ari-focal Lens
General I/O
T
erminal Block
Ethernet 10/100 RJ45
Socket
5
7
Table of Contents
