Vivotek FD8156 Quick Installation Guide

3
30mm
15mm

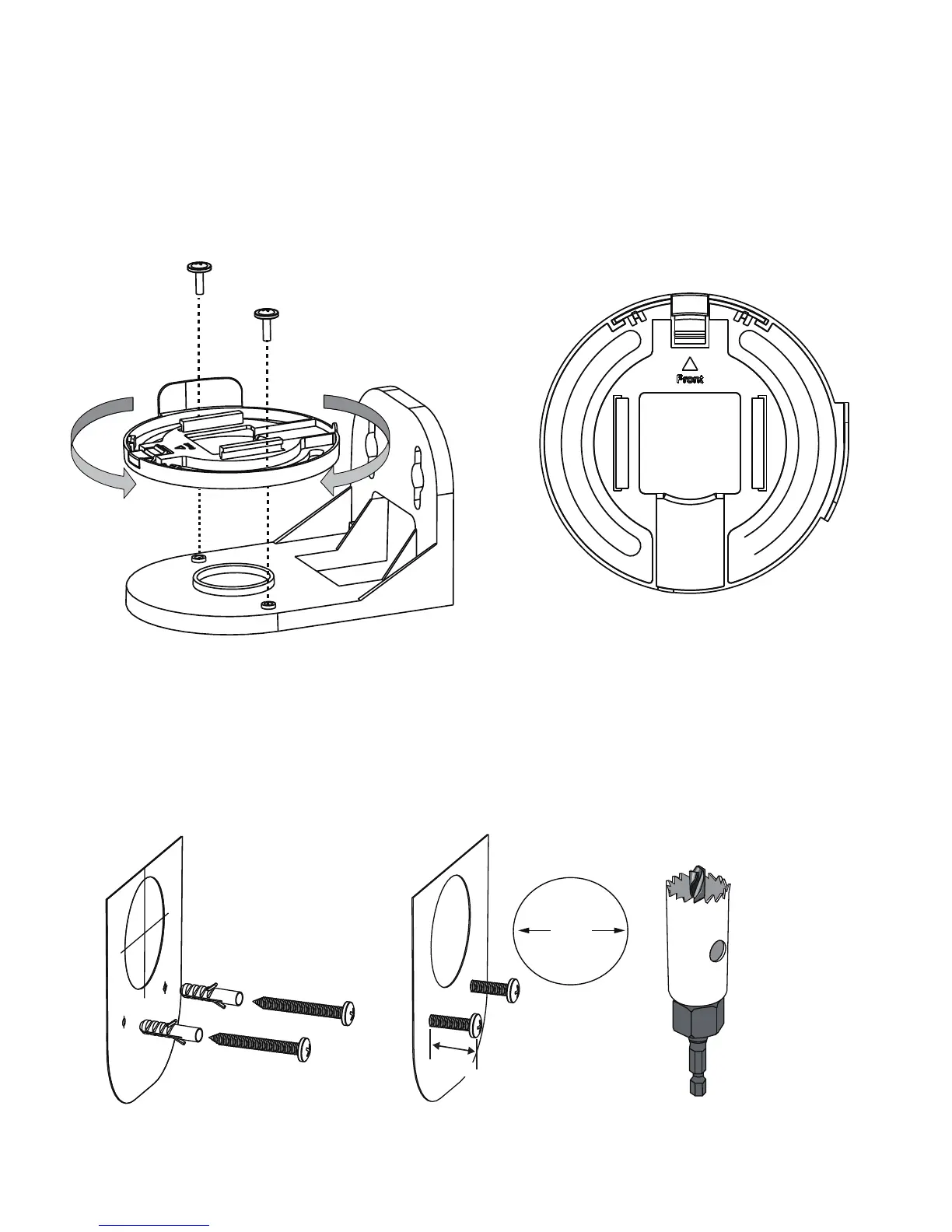

Wall Mount Procedure:
1. Attach the mount bracket to the wall-mount bracket, with
the Front mark facing the shooting direction. Note that you
should turn the bracket to aim the Front mark at the shooting
direction.
2. Attach the alignment sticker to a preferred location.
3. Mark the drill holes and drive screws into the wall. Leave
15mm of the screws off the wall surface.
4. If preferred, drill a 30mm cabling hole on the wall.
