VIVOTEK
10 - User's Manual

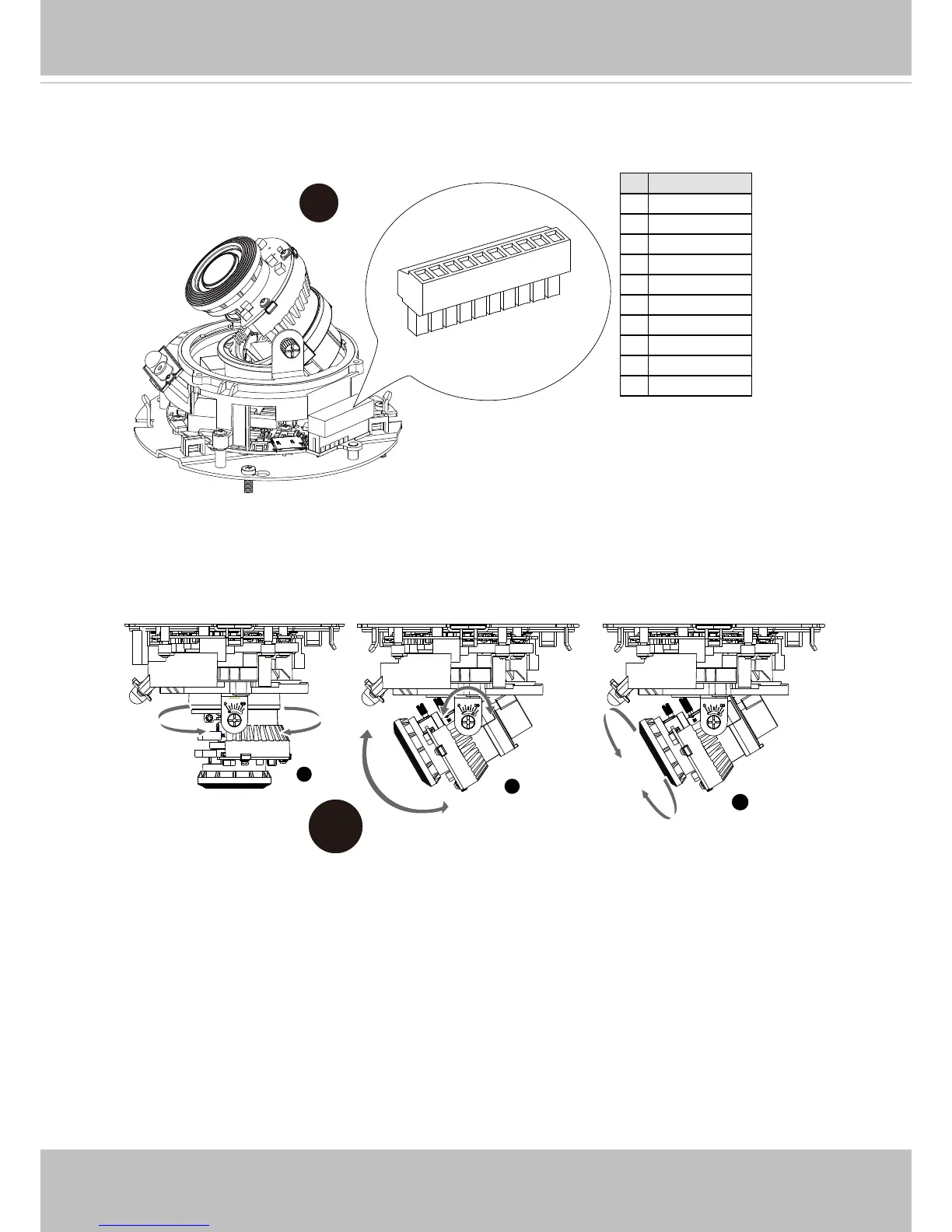

5. If preferred, connect the DI/DO wires to the terminal blocks.
1
2
3
4
5
6
7
8
9
10
5
# Name
1 N/C
2 N/C
3 Audio_out-
4 Audio_out+
5 DI-
6 DI+
7 DO-
8 DO+
9 12V DC-_IN
10 12V DC+_IN
6. Turn the lens moudle around for the best shooting angle.
1
2
3
6
350°
350°
60°
