VIVOTEK
10 - User's Manual
Connect power lines and if you have external devices such as sensors and alarms, make
the connection from the general I/O terminal block.

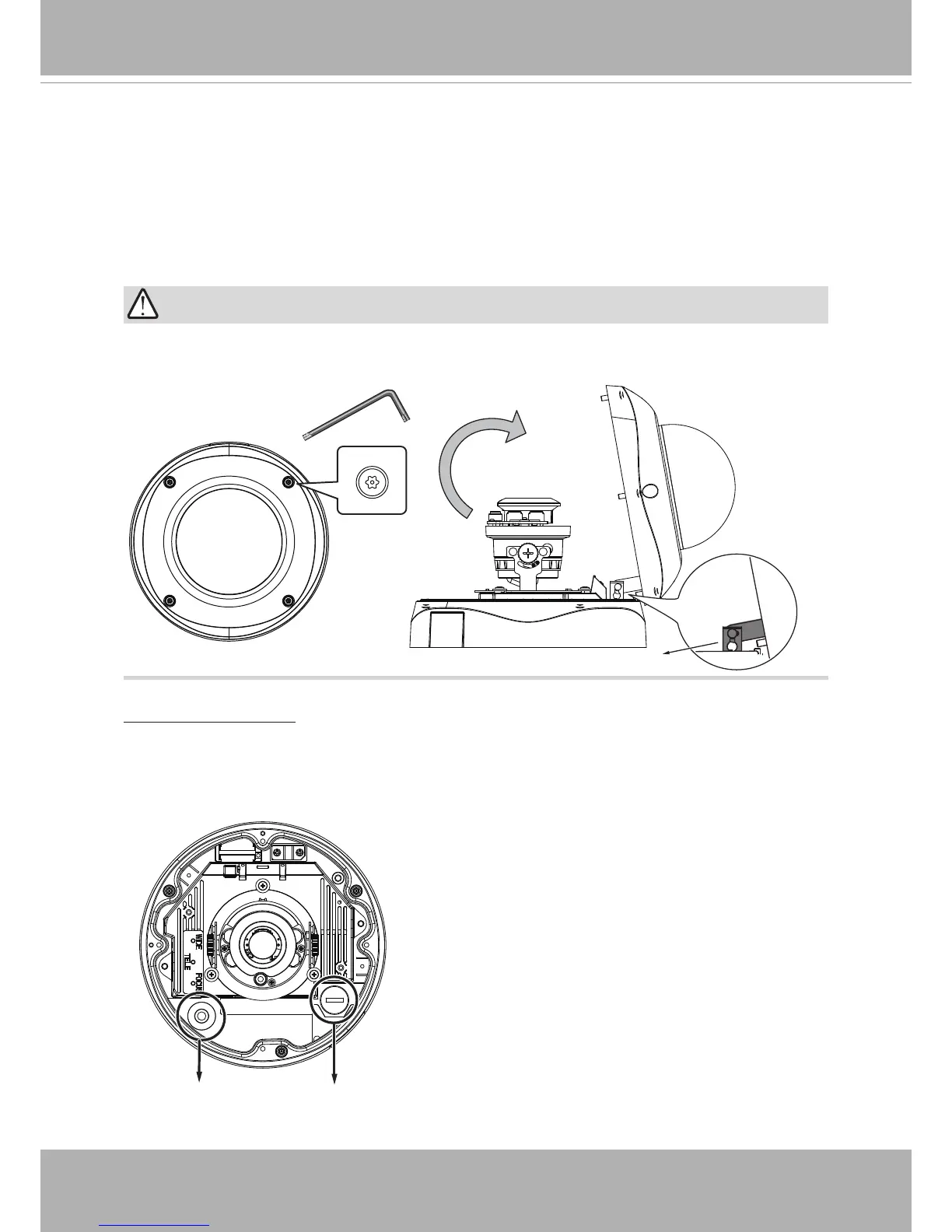

Cabling Assembly
Power and IO cables pass through a waterproof
connector. The Ethernet cable should be routed
through a rubber seal plug. All cables are user-
supplied.
For Ethernet Cable
For Power & IO Cables
Top View
Installation
Removing Dome Cover
First, use the included T20 hex key wrench to loose the four screws and detach the dome
cover from the camera base. Follow the steps below to install the camera either to a ceiling
or a wall.
IMPORTANT:
The dome cover should be removed first because if it should fall during the installation
process, physical injury could occur to your co-workers.
Top View
Dome Cover
Dome Cover Retainer
To Next Page
