Physical Description

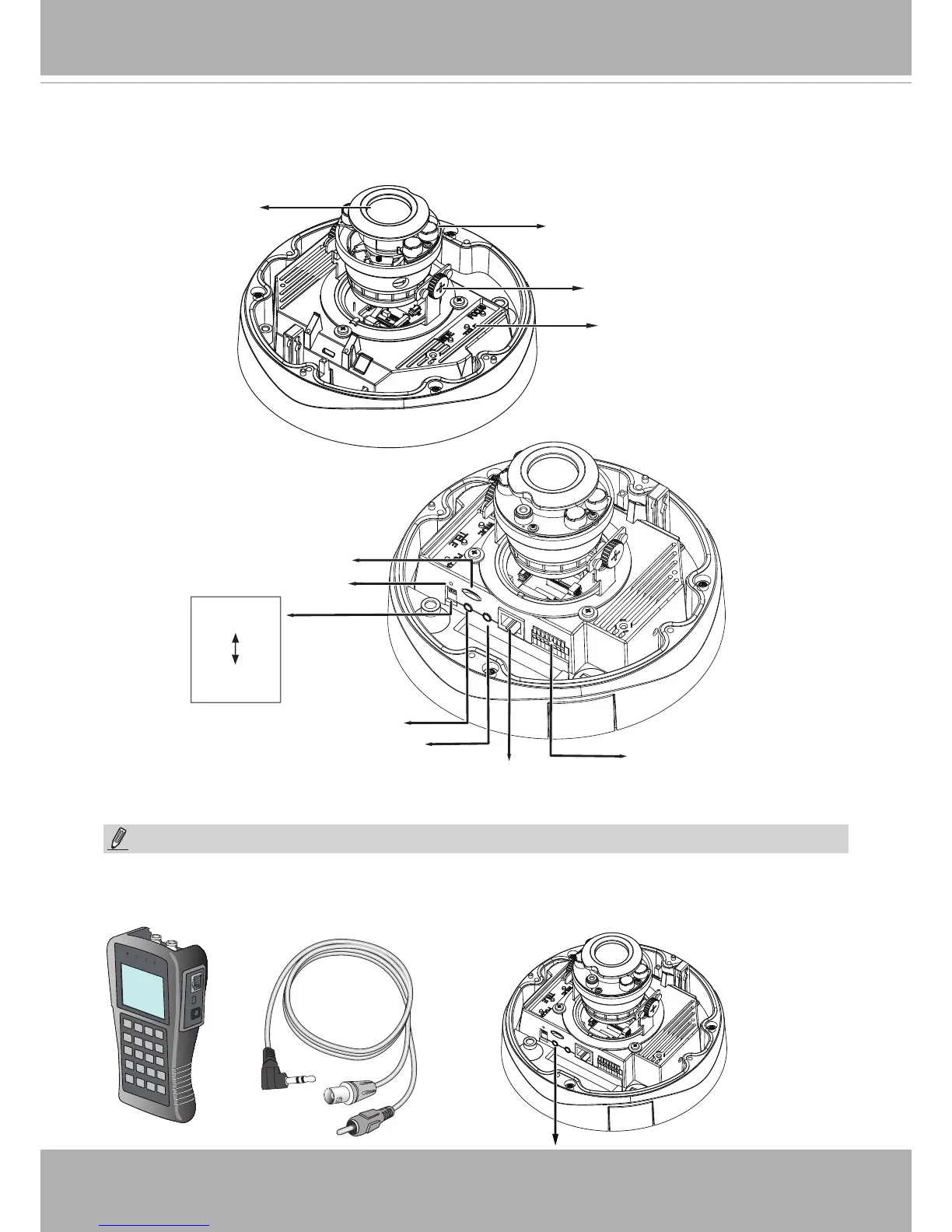

Inner View
1. There is no internal microphone. Connect an external microphone if you need audio inputs.
2. Use the included AV cable to connect to a camera tester or LCD monitor to begin initial setup.
The AV cable also provides audio output.
NOTE:
IR LEDs (4 units, effective up to 20m)
Vari-focal Lens
Tilt Adjustment Screw
Ethernet 10/100
RJ45 Socket
Audio/Video Out
(green)
Microphone In
(pink)
General I/O Terminal
Block
Jumpers
Video Output
NTSC 60Hz
PAL
50Hz
2
Micro SD/SDHC/
SDXC Card Slot
Reset
Button
Focus & Zoom Buttons
LCD Monitor/
Camera tester
AV Out
