Conguration Area
Client Settings: Click this button to access the client setting page. For more information, please refer to
Client Settings on page 36.
Conguration: Click this button to access the conguration page of the Network Camera. It is suggested
that a password be applied to the Network Camera so that only the administrator can configure the
Network Camera. For more information, please refer to Conguration on page 41.
Language: Click this button to choose a language for the user interface. Language options are available
in: English, Deutsch, Español, Français, Italiano,
日本語
, Português,
簡体中文
, and
繁體中文
. Please
note that you can also change a language on the Conguration page; please refer to page 41.
Hide Button
You can click the hide button to hide or display the control panel.
Resize Buttons
:
Click the Auto button, the video cell will resize automatically to t the monitor.
Click 100% is to display the original homepage size.
Click 50% is to resize the homepage to 50% of its original size.
Click 25% is to resize the homepage to 25% of its original size.

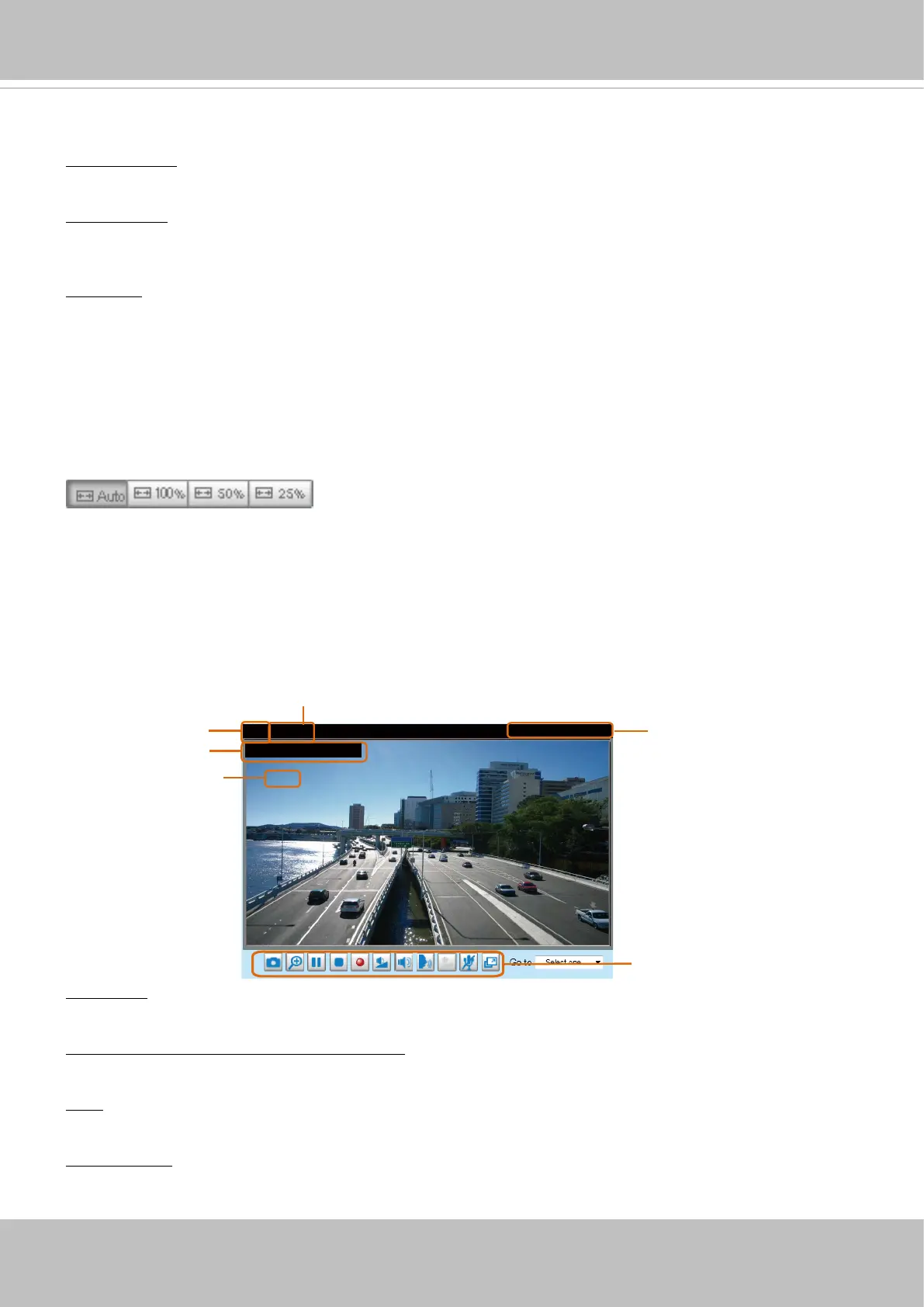

Live Video Window
■ The following window is displayed when the video mode is set to H.264 or H.265:
Video Title: The video title can be congured. For more information, please refer to Video Settings on
page 55.
H.264 or H. 265 Protocol and Media Options: The transmission protocol and media options for H.264 or
H.265 video streaming. For further conguration, please refer to Client Settings on page 36.
Time: Display the current time. For further conguration, please refer to Media > Image > Genral settings
on page 55.
Title and Time: The video title and time can be stamped on the streaming video. For further conguration,
please refer to Media > Image > General settings on page 60.
Video 17:08:56 2018/03/25
Title and Time
2018/03/25 17:08:56
Time
Video (TPC-AV)
H.265/264 Protocol and Media Options
Video Title
x4.0
Zoom Indicator
Video Control Buttons

Vivotek FD9369 Specifications

General

Type	IP security camera
Certification	CE, FCC, ICES-003, RCM, VCCI, Safety, UL, CB, IA, BIS, IK10, IP66
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Wi-Fi	-
Number of users	10 user(s)
Streaming method	Multicast
Networking standards	IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Flash memory	256 MB
Compatible memory cards	SD, SDHC, SDXC
Ethernet LAN (RJ-45) ports	1
Sensor type	CMOS
Optical sensor size	1/3.1 \
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Power consumption (typical)	4 W
IK code	IK10
Form factor	Dome
Mounting type	Ceiling
Product color	Black, White
LED indicators	Power, Status
International Protection (IP) code	IP66
Pan range	0 - 350 °
Tilt angle range	-10 - 75 °
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0.08 lx
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Audio system	1-way
Audio formats supported	G.711, G.726
Signal-to-Noise Ratio (SNR)	59 dB
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264, H.265, M-JPEG
Image quality adjustment	Brightness, Saturation, Sharpness
LED type	IR
Night vision distance	30 m
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Digital zoom	18 x
Focal length range	2.8 mm

Weight and Dimensions

Weight	465 g
Diameter	110 mm
