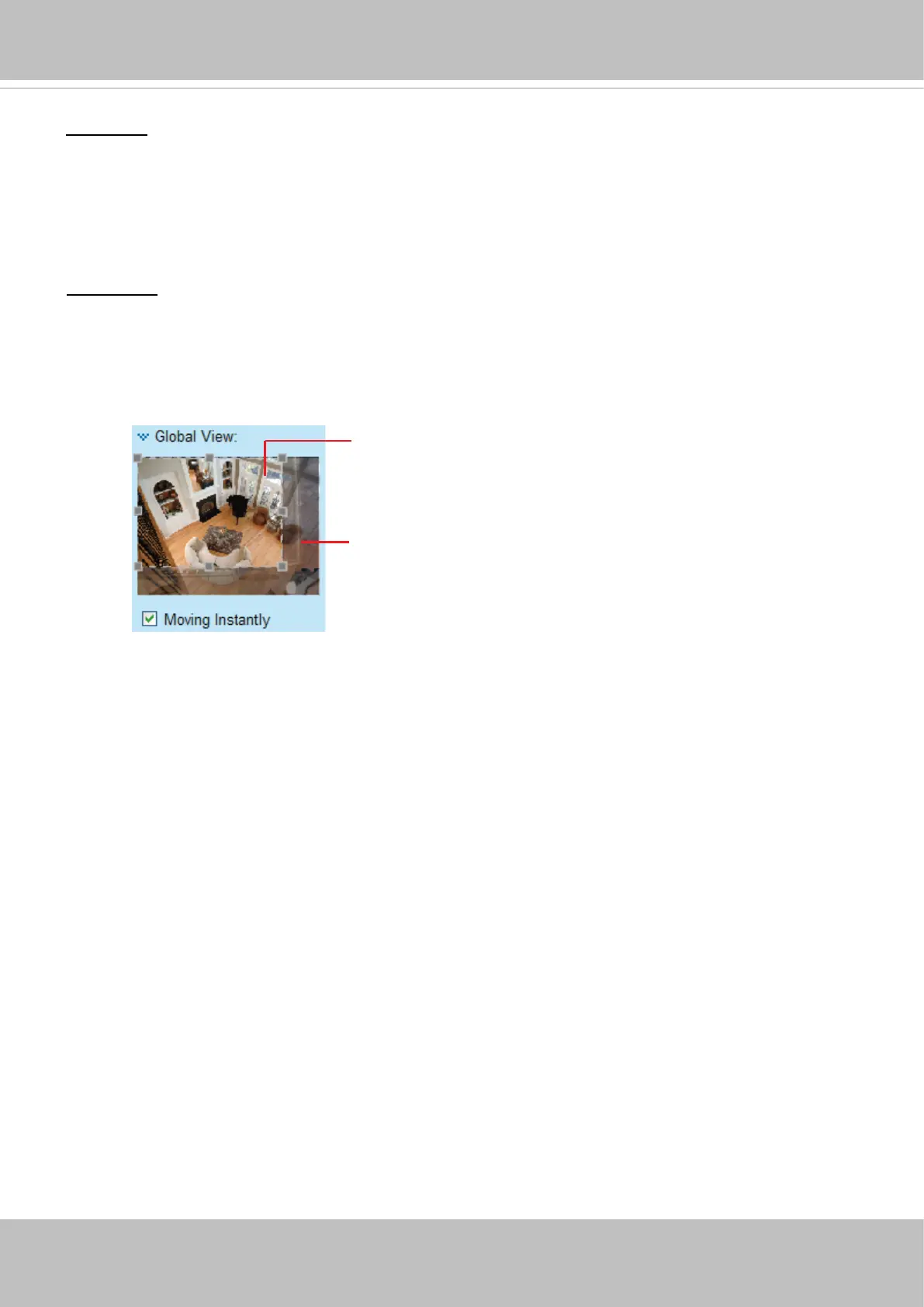

Global View: Global view is available with the 3rd or the last video prole. Click on this item to display the
Global View window. The Global View window contains a full view image (the largest frame size of the
captured video) and a oating frame (the viewing region of the current video stream). The oating frame
allows users to control the e-PTZ function (Electronic Pan/Tilt/Zoom). For more information about e-PTZ
operationG, please refer to E-PTZ Operation on page 114. For more information about how to set up the
viewing region of the current video stream, please refer to page 114.
The viewing region of
the curruent video
stream
The largest frame size
PTZ Panel: This Network Camera supports “digital“ (e-PTZ) pan/tilt/zoom control, which allows roaming
a smaller view frame within a large view frame. Please refer to PTZ settiings on page 114 for detailed
information. Global view and the PTZ panel are available with the 3rd or the last video prole.
Note that the PTZ buttons on the panel are not operational unless you are showing only a portion of the
full image. If the live view window is displaying the full view, the PTZ buttons are not functional.

Vivotek FD9369 Specifications

General

Type	IP security camera
Certification	CE, FCC, ICES-003, RCM, VCCI, Safety, UL, CB, IA, BIS, IK10, IP66
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Wi-Fi	-
Number of users	10 user(s)
Streaming method	Multicast
Networking standards	IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Flash memory	256 MB
Compatible memory cards	SD, SDHC, SDXC
Ethernet LAN (RJ-45) ports	1
Sensor type	CMOS
Optical sensor size	1/3.1 \
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Power consumption (typical)	4 W
IK code	IK10
Form factor	Dome
Mounting type	Ceiling
Product color	Black, White
LED indicators	Power, Status
International Protection (IP) code	IP66
Pan range	0 - 350 °
Tilt angle range	-10 - 75 °
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0.08 lx
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Audio system	1-way
Audio formats supported	G.711, G.726
Signal-to-Noise Ratio (SNR)	59 dB
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264, H.265, M-JPEG
Image quality adjustment	Brightness, Saturation, Sharpness
LED type	IR
Night vision distance	30 m
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Digital zoom	18 x
Focal length range	2.8 mm

Weight and Dimensions

Weight	465 g
Diameter	110 mm
