VIVOTEK
8 - User's Manual

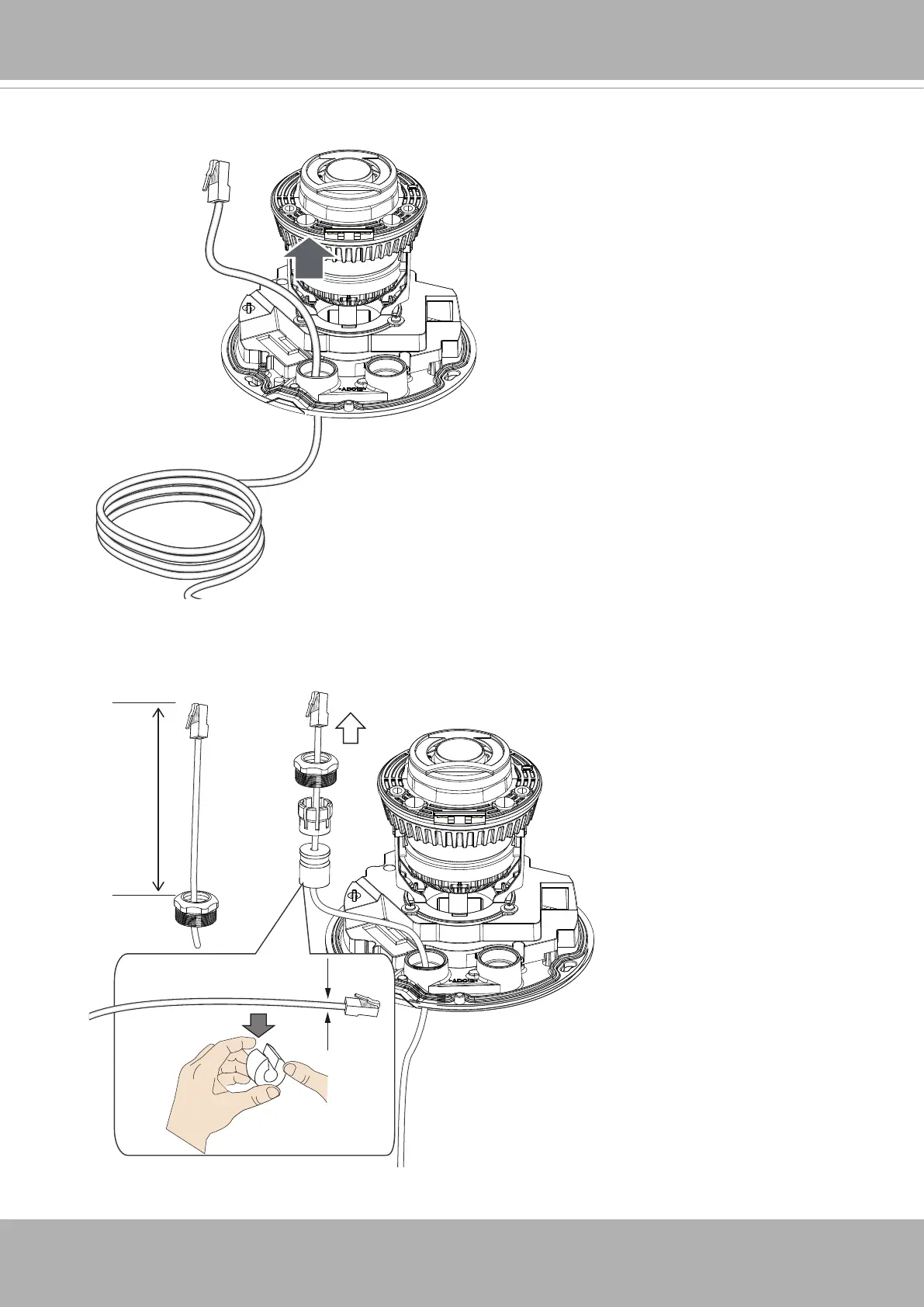

4. Insert an Ethernet cable through the cable gland, and the rubber seal.
Ø 5 ~ 6.3mm
approx.
15cm
5. Insert the Ethernet cable through the components of the waterproof connector, e.g., the
rubber seal. Leave 15cm of cable length inside, counting from the edge of the aluminum
hex nut.
