VIVOTEK
User's Manual - 11

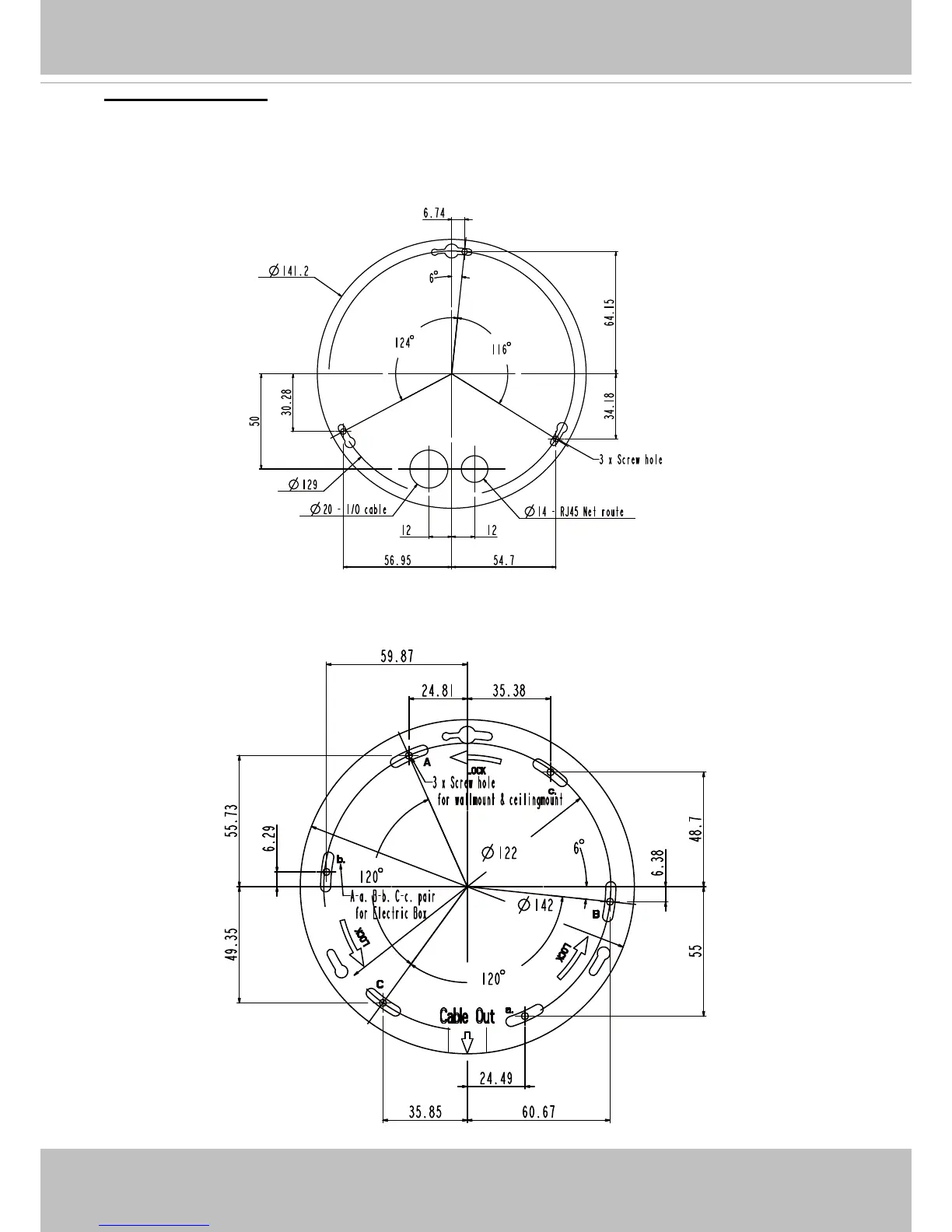

Mounting Positions
Refer to the diagram on the right for the mounting hole positions and the dimensions of the base
plate.
Camera Base Plate Mounting
Positions
Camera Mounting Plate Mounting Positions
