Hardware Installation

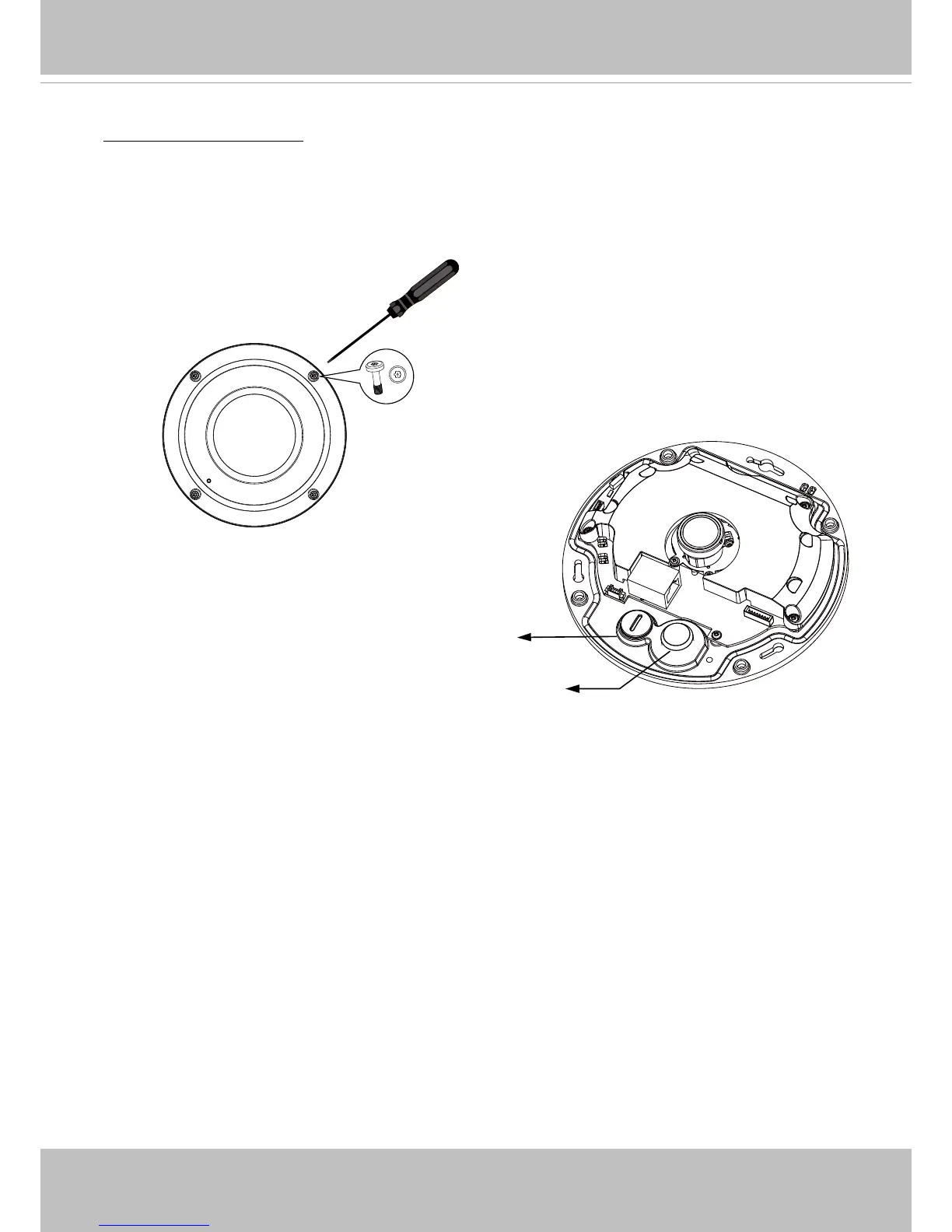

Opening Dome Cover
Rubber Stopper on the hole
for Power & IO Cables
Tamper-proof Screw
Rubber Seal Plug on the
hole for RJ45 Ethernet
Cable
Remove the stoppers and route cables through
the openings.
First, use the supplied screwdriver to loosen the four screws and detach the dome cover from the
camera base. Then, follow the steps below to install the camera to either a ceiling or a wall.
