VIVOTEK
28 - User's Manual

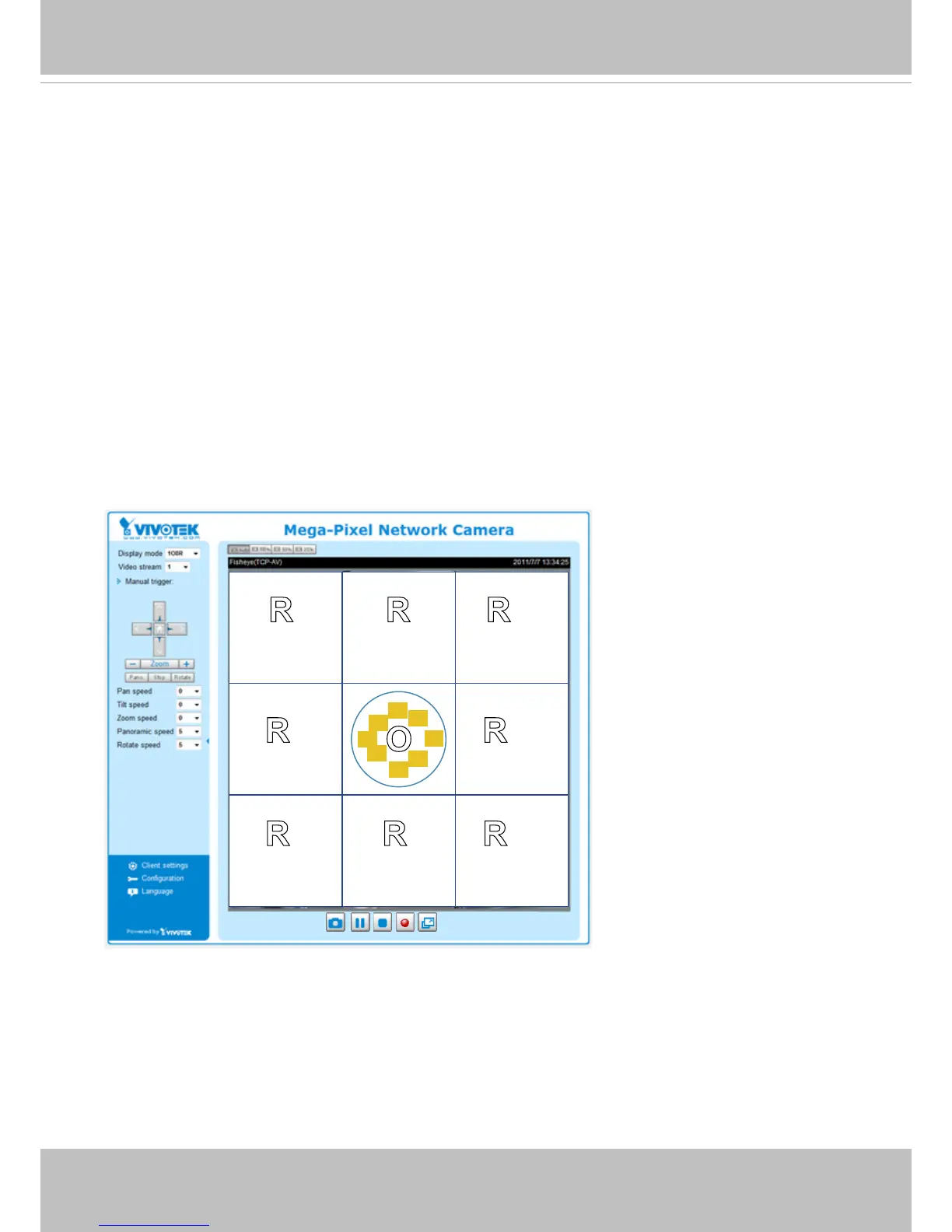

1O8R (One Original and Eight Regional) Display mode:
The view control and look and feel are identical to that as described in the 1O3R mode.
Note that if you change the position of a view in hemisphere, e.g., #3 window, you may lose the
conguration change by switching to another display mode. The live view window does not automatically
save your view section layout.
123
4
5
6
7
8
1
2
3
4
5
6
7
8
O
RRR
RRR
RR
4R (Four Regional) Display mode:
The view control and look and feel are identical to that as described in the 1O3R mode except the
absence of the Original circular view.
4R PRO (Four Regional Proactive) Display mode:
The 4R PRO mode is similar to the 4R mode except that the quad view windows consecutively rotate in
correspondence to the change of view area in one window. Note that zoom in/out and tilt control is not
available in this mode.
