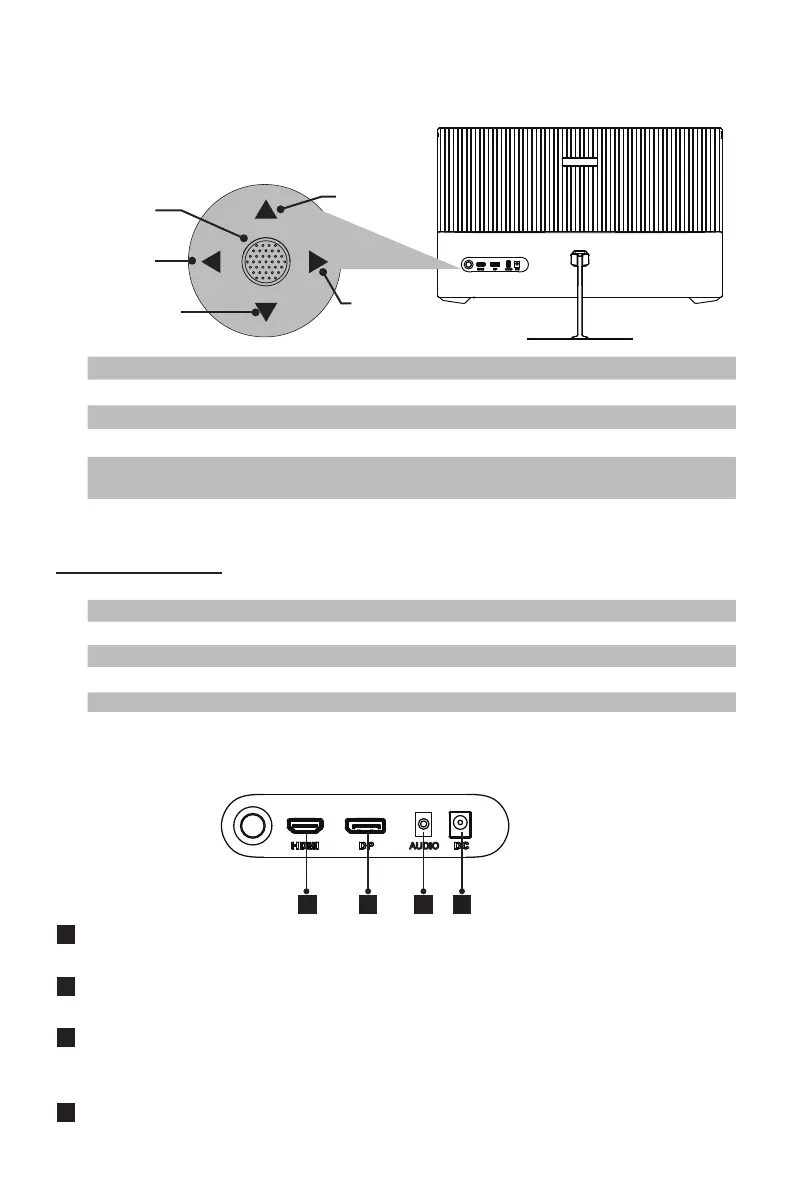

Section 3: Product Overview
3.1 – Monitor Buttons
1 4 3 2
Actions Description
Rocker Up
Contextual modes sight shortcut key
Rocker Down
Gameplus sight shortcut key
Rocker Left
Signal source selection menu shortcut key
Rocker Right
Enter OSD menu
Conrm operations / settings
Press Power
Press to turn on or off the monitor.
Menu Navigation:
Actions Description
Rocker Up
Move up
Rocker Down
Move down
Rocker Left
Return to previous menu / Adjust value
Rocker Right
Enter next menu / Adjust value
3.2 – Monitor Ports
Rocker Button
1
HDMI Connector: Insert one end of the HDMI cable into the computer’s
HDMI output and connect the other end to the monitor’s HDMI port.
2
DP Connector: Insert one end of the DP cable into the computers DP output
and connect the other end to the monitor’s DP port.
3
Audio Output: Insert one end of the audio cable into an external audio
source, e.g., speakers or headphones, to pass audio signals through the
monitor.
4
DC IN Power Connector: Insert the power cable to supply power to the monitor.
Up
Down
Right
Power
Left

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Vivotek GFV24CB2 and is the answer not in the manual?

Vivotek GFV24CB2 Specifications

General IconGeneral
Model NumberGFV24CB2
LED IndicatorPower on: Blue (solid); Power saving: Red (solid)
Screen Size23.8’’
Viewing Angle178° (H) / 178° (V)
Aspect Ratio16:9
Resolution1920x1080p
Refresh Rate180Hz
BrightnessTypical: 250 cd/m2
Default Color Temperature6500
Color Gamut95% sRGB; 85% NTSC
Pixel Pitch0.0915 x 0.2745 mm
Display Colors16.7M
Response Time6ms (OD)/MPRT 1ms
PortsDP1.2 x 1, HDMI 1.4 x 1, Audio output x 1
AdapterDC 12V 2.5 A
Power ConsumptionTypical: 24W; Max: 34W; Standby ≤ 0.5W
OSD Language*English, 简体中文,Nederlands, Français, Deutsch 한국,Español, Русский, Português, Turkce, Italiano, Polski, 日本語
Usage Temp.32°F~104°F (Operating), -4°F~ 140°F (Storage), 10- 85% RH (Non-Condensing)
Weight and Dimensions IconWeight and Dimensions
Tilt AngleForward 5°; Backward 15° (±2°)
VESA Mounting75 x 75 mm
Dimensions (with stand)21.3 x 15.9 x 6.3 in (542.4 x 402.8 x 160.9mm)
Weight (with stand)7.05 lb. / 9.92 lb. (with packaging)
