8

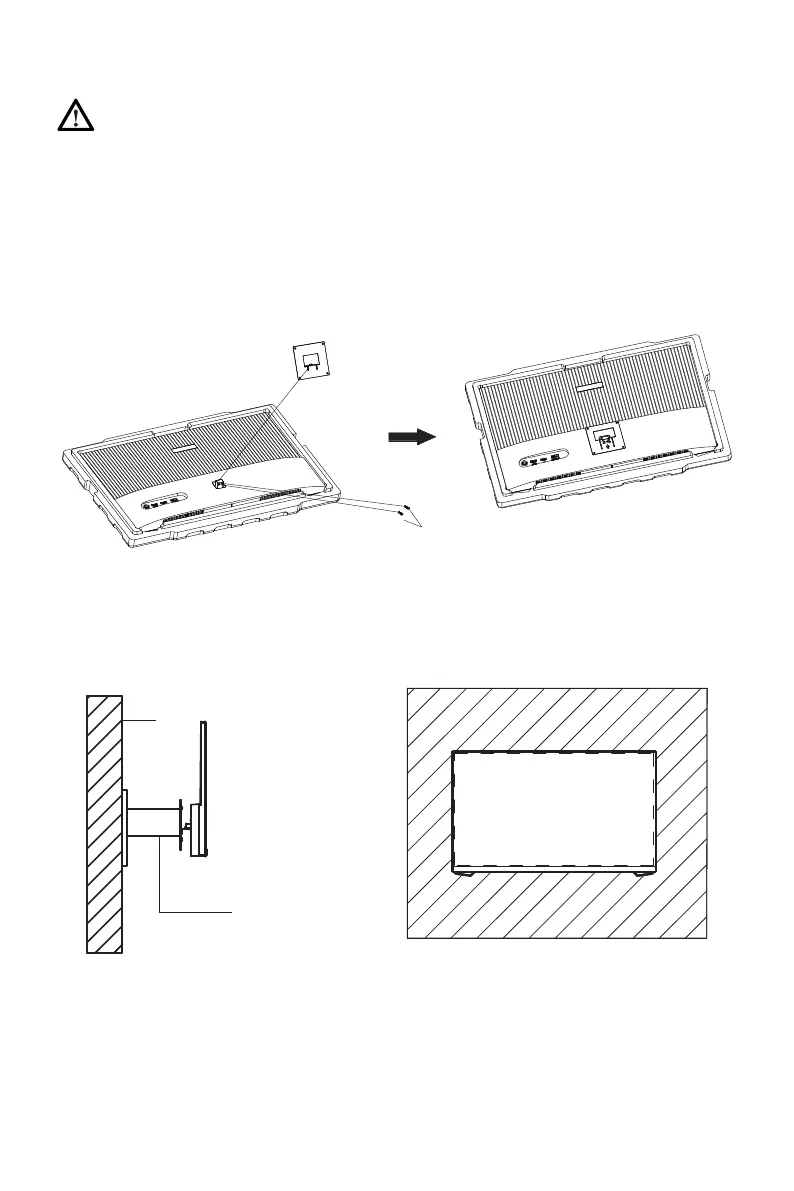

Section 5: Wall Mounting
VESA and/or mounting accessories not included.
1. Open the package, take out the monitor with the foam still attached, and gently
place it on a desktop or table. If the monitor is attached to the stand, remove
the stand by removing the two screws on the back of the monitor just above the
stand.
2. At the back of the monitor, put the mounting plate into the opening, then attach 2
screws to secure it to the monitor.
Screws x 2
Mounting Plate
3. Follow the directions that came with your mounting kit (not included) to mount
the monitor on the wall or monitor stand.
Wall
Mounting Base
(Not included)

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Vivotek GFV24CB2 and is the answer not in the manual?

Vivotek GFV24CB2 Specifications

General IconGeneral
Model NumberGFV24CB2
LED IndicatorPower on: Blue (solid); Power saving: Red (solid)
Screen Size23.8’’
Viewing Angle178° (H) / 178° (V)
Aspect Ratio16:9
Resolution1920x1080p
Refresh Rate180Hz
BrightnessTypical: 250 cd/m2
Default Color Temperature6500
Color Gamut95% sRGB; 85% NTSC
Pixel Pitch0.0915 x 0.2745 mm
Display Colors16.7M
Response Time6ms (OD)/MPRT 1ms
PortsDP1.2 x 1, HDMI 1.4 x 1, Audio output x 1
AdapterDC 12V 2.5 A
Power ConsumptionTypical: 24W; Max: 34W; Standby ≤ 0.5W
OSD Language*English, 简体中文,Nederlands, Français, Deutsch 한국,Español, Русский, Português, Turkce, Italiano, Polski, 日本語
Usage Temp.32°F~104°F (Operating), -4°F~ 140°F (Storage), 10- 85% RH (Non-Condensing)
Weight and Dimensions IconWeight and Dimensions
Tilt AngleForward 5°; Backward 15° (±2°)
VESA Mounting75 x 75 mm
Dimensions (with stand)21.3 x 15.9 x 6.3 in (542.4 x 402.8 x 160.9mm)
Weight (with stand)7.05 lb. / 9.92 lb. (with packaging)
