VIVOTEK
User's Manual - 7

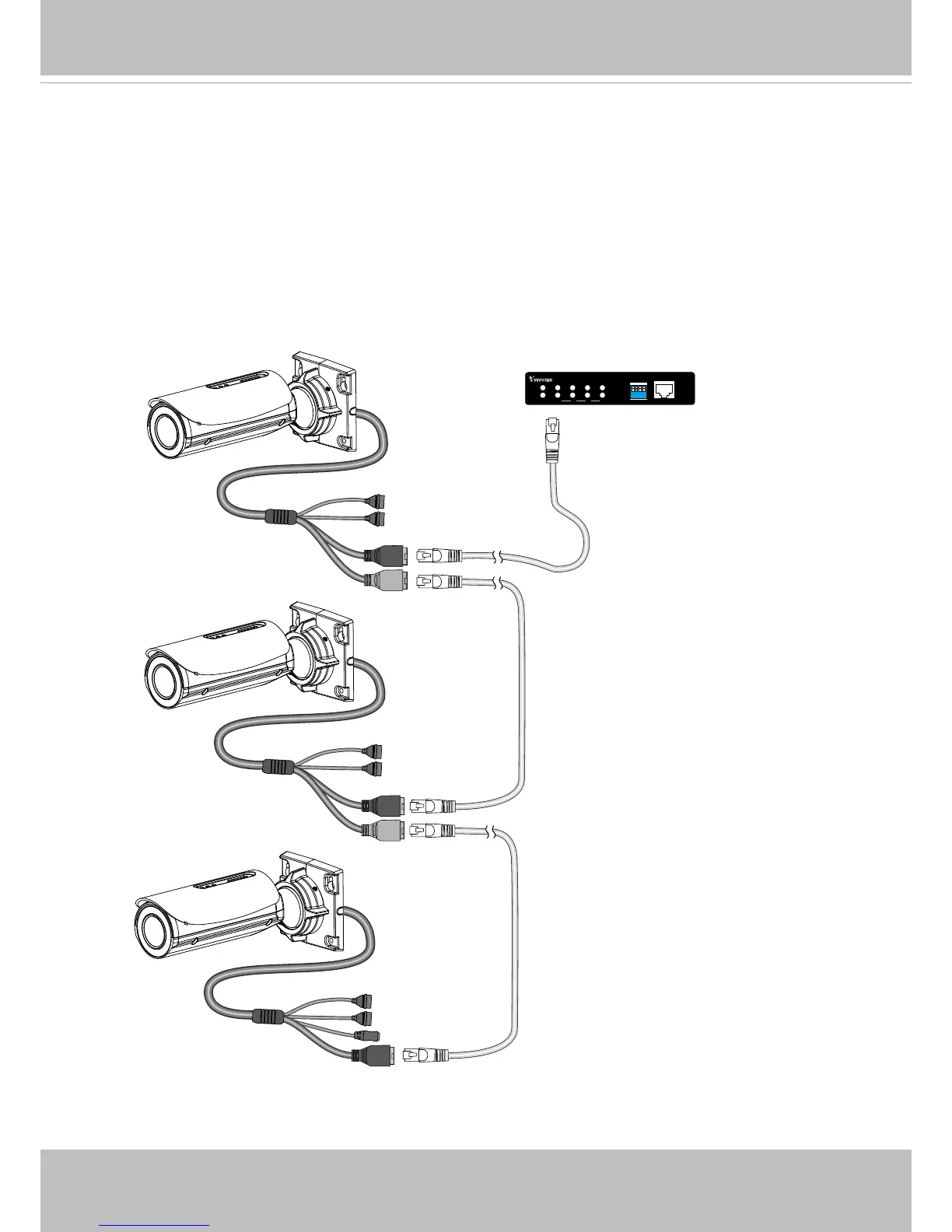

Repeater Model (IB8367-R/RT) Cascade Connections
1 2
3
4
1 2 3 4
LA N
Po E
UPL INK
Po E
ON
OFF
4xFE PoE + 1xFE Switch
UPLINK
POWER
ON
AW-FED-0500-120
100m
100m
100m
IB8367-R
IB8367-R
IB8367
IB8338-HR
IB8338-HR
IB8367-RT
IB8367-RT
IB8338
Each camera consumes up to 14.5W power. Up to 2 IB8367-R/RT and 1 IB8367 can be
cascaded in a conguration with a cabling distance of up to 300 meters. The precondition
is the use of the AE-FED-0500-120 PoE switch, which can deliver more than 50W of power
per port (exceeding the 802.3at specications).
Please use quality cables when cabling over an extended distance. Power loss due to
resistance can occur with low-quality cables.
