If you prefer other lens for your IP8152, please notice the specications below.
1. If you select a different lens, the distance between the ange of the lens and the IR cut
lter on the camera should be smaller than 7.5mm. If the lens protrudes too much from
the bottom of the lens module, it may hit the IR Cut Filter, or result in out of focus when
adjusting the focus controller�
2� A vari-focal lens may protrude from the bottom of screw mount when tuning the focus
puller�

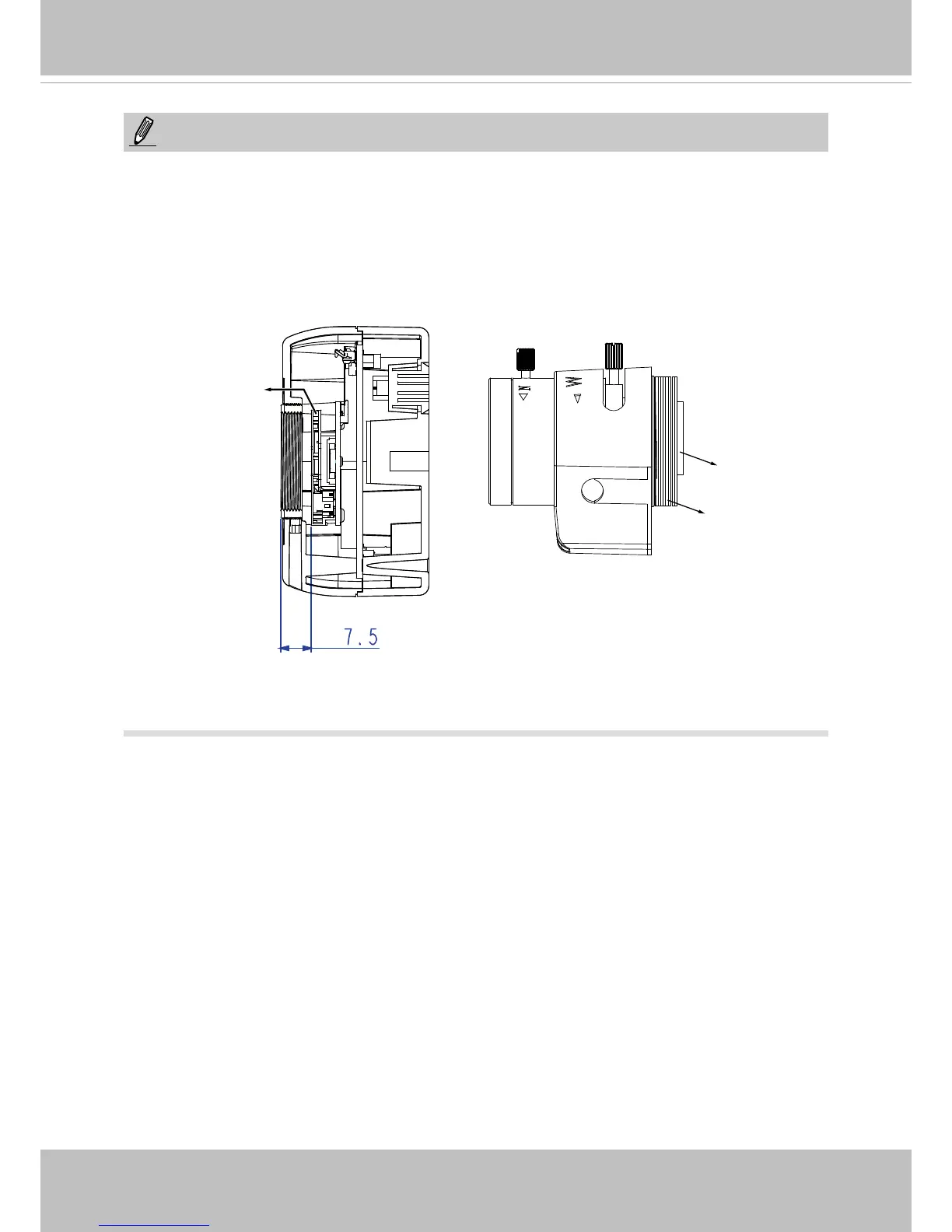

IR Cut
Filter
NOTE:
mm
Lens
protrudes
from the
screw mount
Screw mount
3� Use the included hex wrench to make adjustments to CS-mount ring only when you
experience compatibility issue with lens focal length�
