EN - 10
Attach the dome cover to camera. Secure the
dome screws with the supplied screwdriver.
Finally, make sure all parts of the camera are
securely installed.
IMPORTANT:
Please secure the screws tightly to avoid
moisture.
Completion
7
Open the aluminum foil vacuum bag and take out
the desiccant bag. Attach the supplied desiccant
bag to the inner side of the dome cover, to under
the retainer clip. (Please replace the desiccant
whenever you open the dome cover.)
Retainer
clip
Desiccant
bag
4
7
8

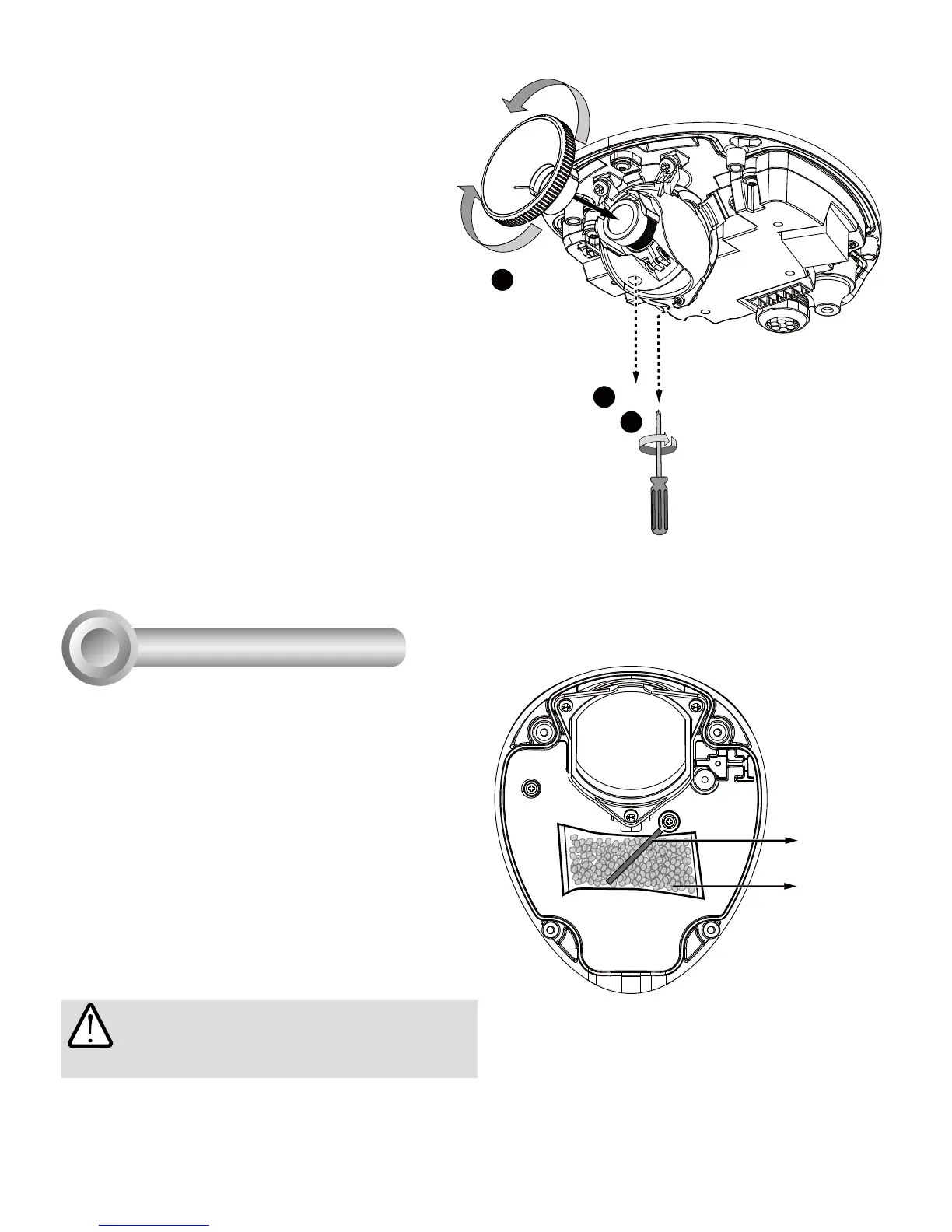

4. Use the adjustment tool to adjust the lens
focus by rotating the lens clockwise or
counter-clockwise.
5. Rotate the lens module back to the correct
orientation. Put on the dome cover, but do
not completely tighten its screws yet.
6. Check the live console to see if the image
is clear. Repeat the process until the live
image is clear.
7. Tighten the lens focus retention screw.
8. Tighten the lens module retention screw.
To Next Page
