Vivotek MD8531H - Page 5

EN - 4
3
o
O
g
B
b
G
br
BR
1
2
3
4
5
6
7
8
o: white/orange stripe
O: orange solid
g: white/green stripe
B: blue solid
b: white/blue stripe
G: green solid
br: white/brown stripe
BR: brown solid

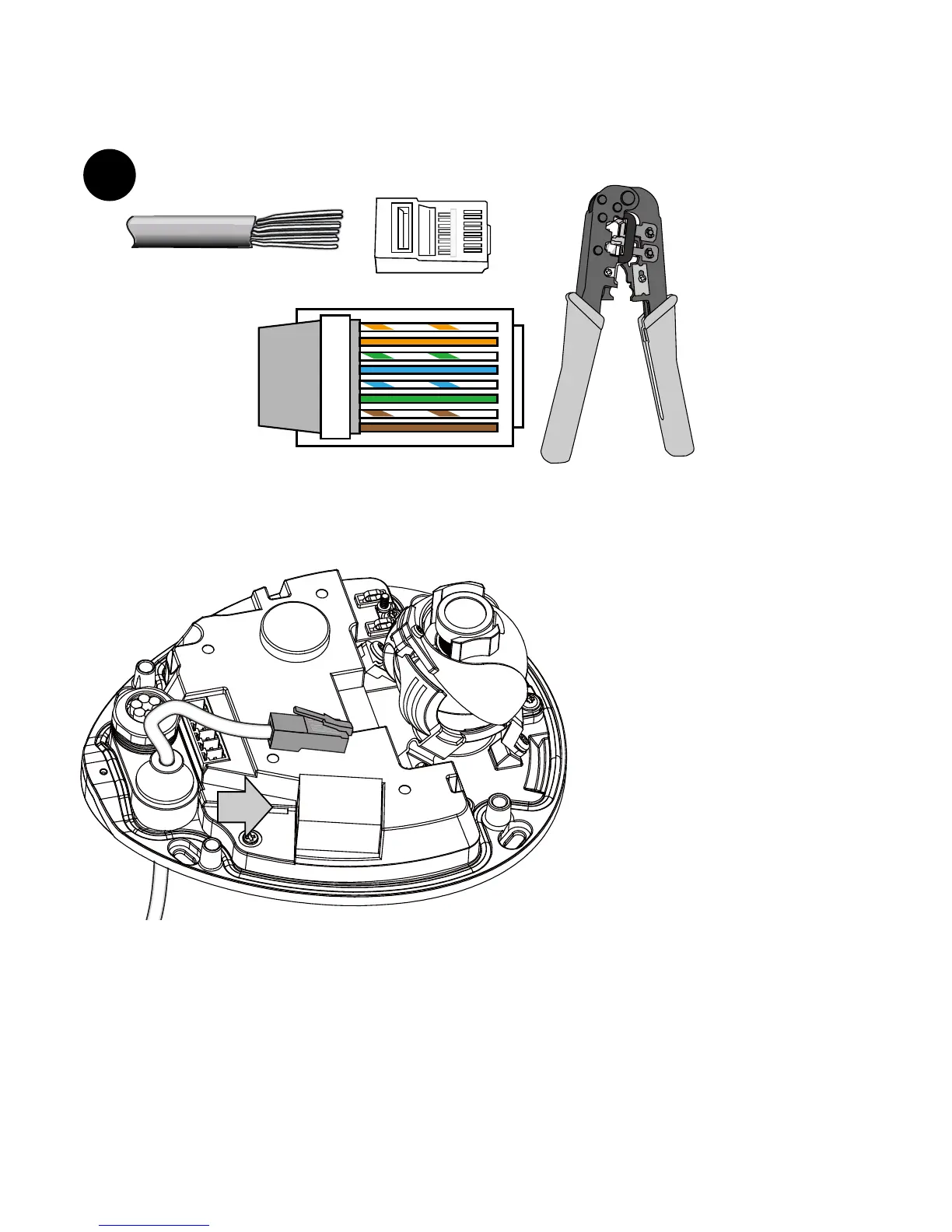

3. You will need an RJ45 crimping tool to attach the Ethernet wires to a connector. When done,
connect the cable to the camera’s Ethernet RJ45 socket.
