VIVOTEK - Built with Reliability
User's Manual - 13

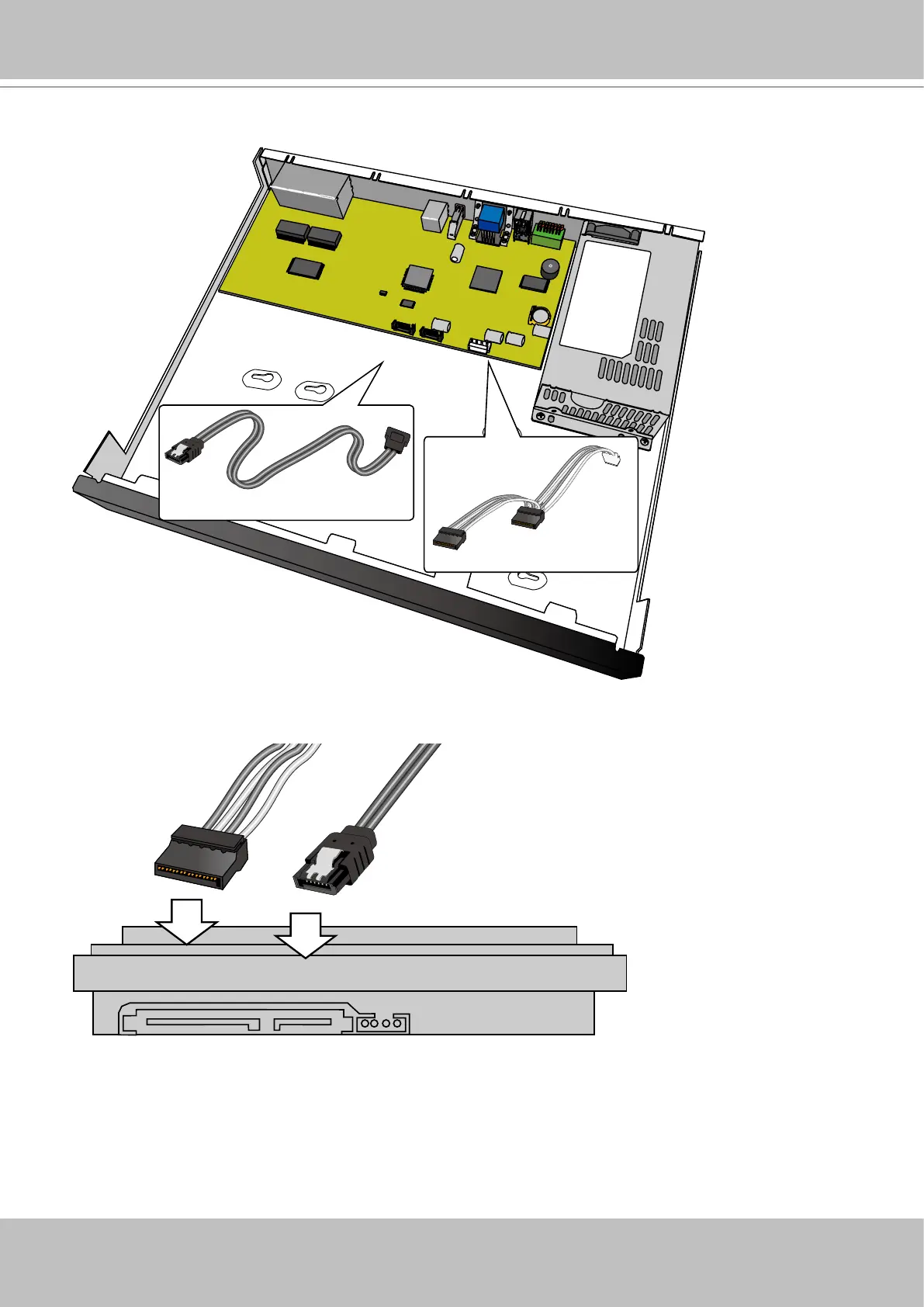

2. Secure the HDD brackets to the hard drives.
4. Connect the SATA power and SATA data cables to the hard disk drives.
SATA power SATA data
3. Connect SATA data and power cables to the main board.
SATA1
SATA2
J3
SATA Data x2
SATA Power x1
