7. When done, install the top cover.
6. Secure the hard disks to the mounting positions in the chassis with its label side facing up,

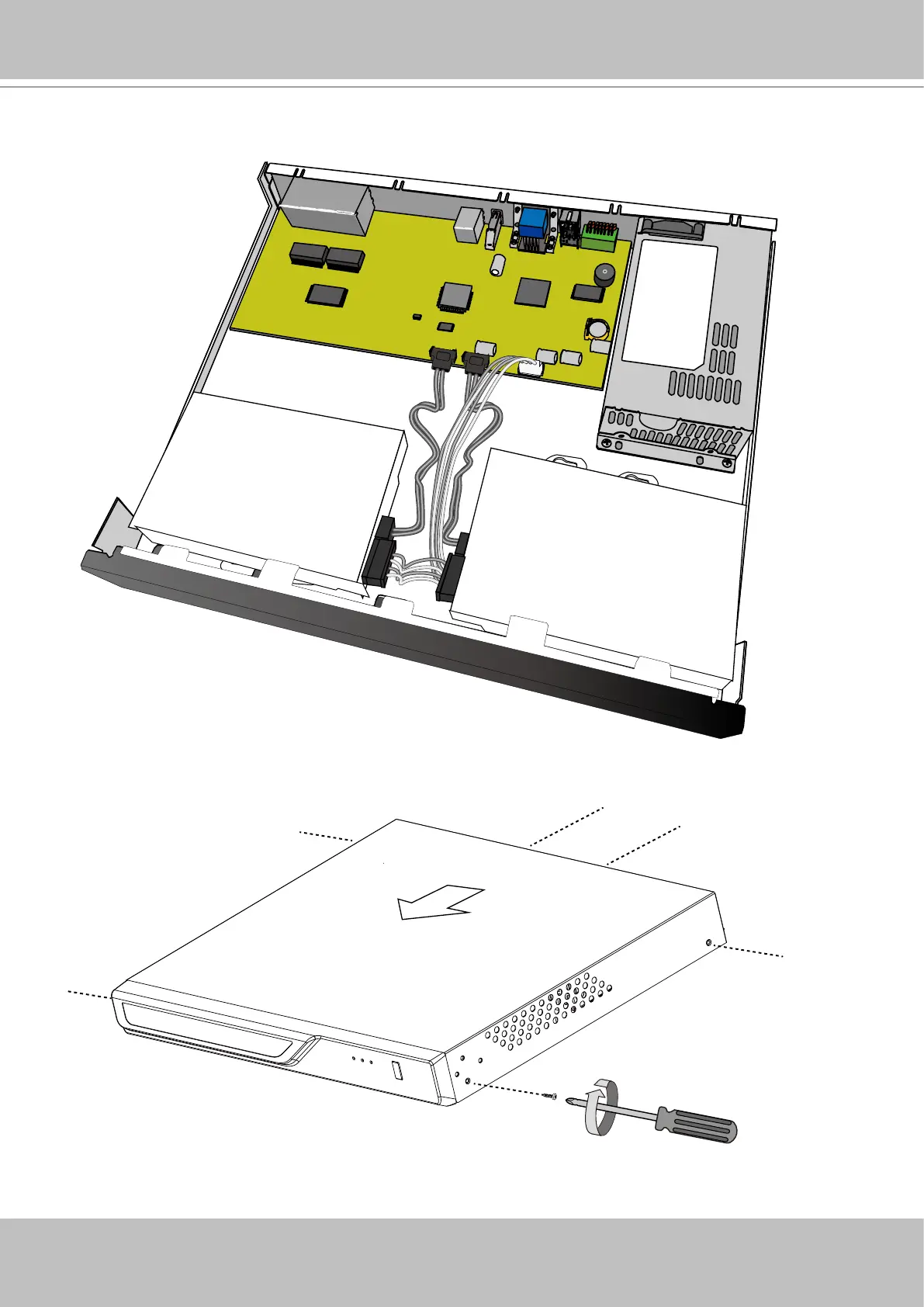

and the connectors facing the inside of the chassis. The sample drawing below shows the
positions.
SATA1
SATA2
J3
SATA1
H.D.D.
SATA2
H.D.D.
