VIVOTEK
User's Manual - 7

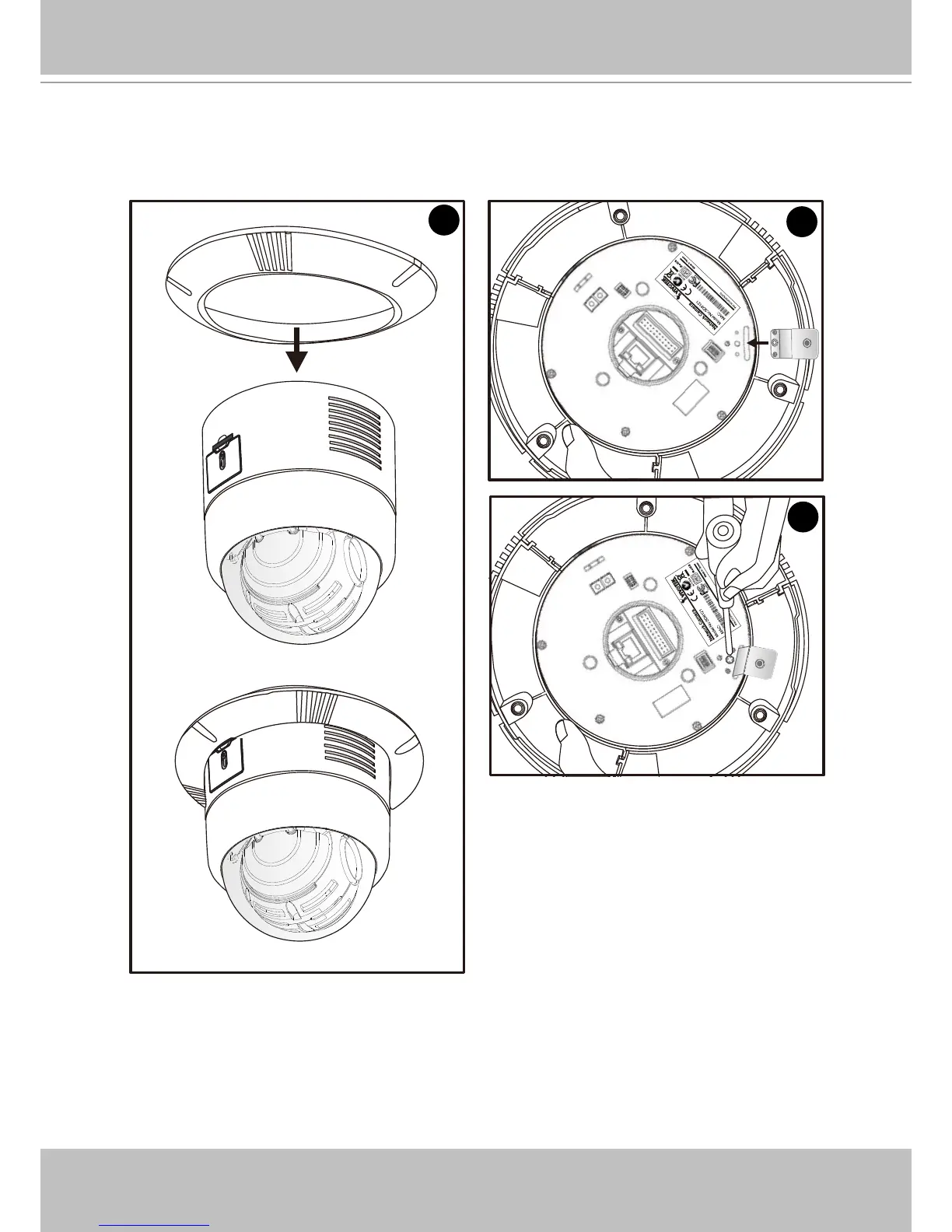

5. Put the decoration ring onto the dome body.
6. Insert the xing plate into the groove as shown below.
7. Align the three holes to screw the xing plate to the dome base.
5
6
0002D107258A
7
0002D107258A
