VIVOTEK
8 - User's Manual

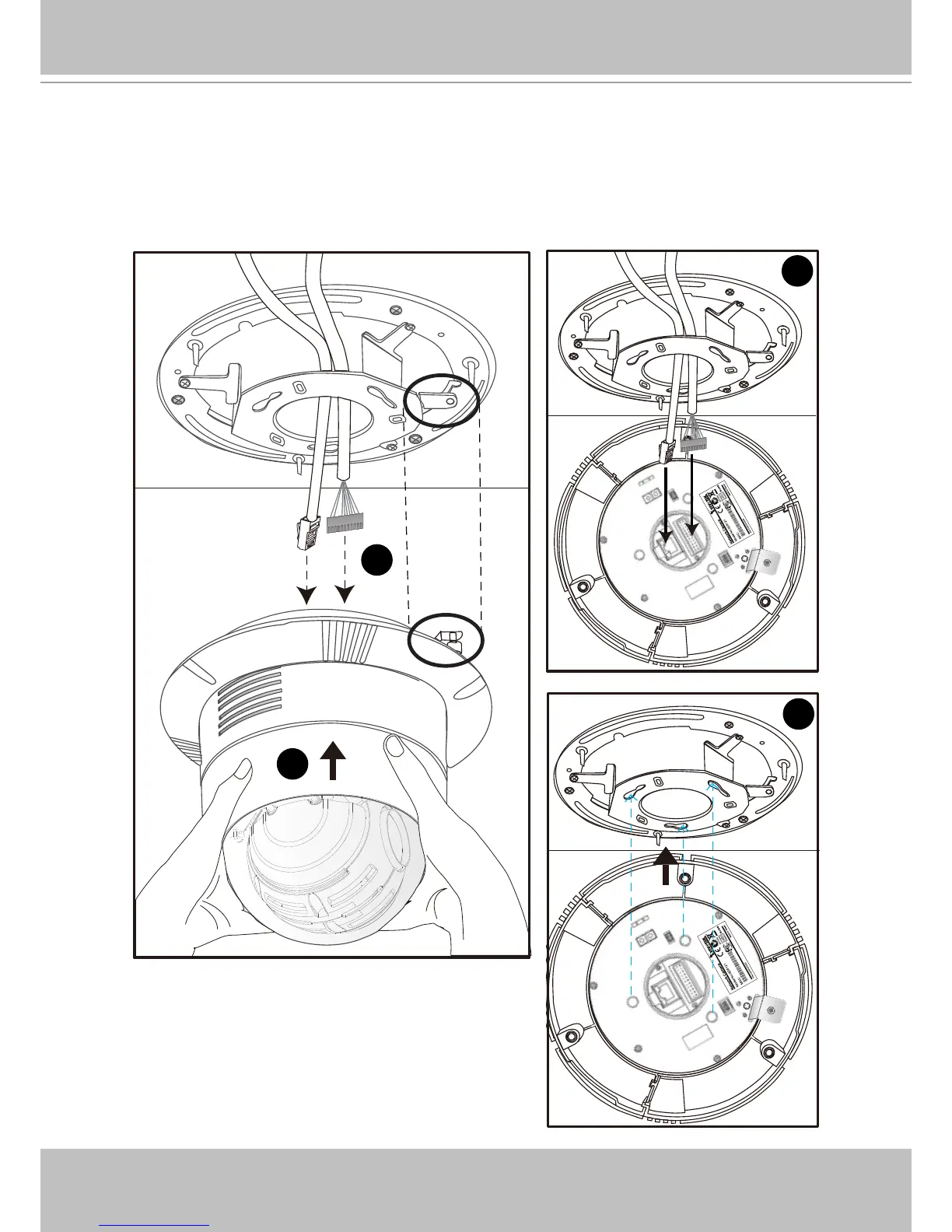

8. If you have external devices such as sensors and alarms, connect them to the general I/O
terminal block. Then connect the cable connector and Ethernet cable to the dome base.
9. Align plate A and plate B, use hole a ~ c to hook the Network Camera on the ceiling mount
bracket.
8
9
8
9
A
B
0002D107258A
a
b
c
0002D107258A
