Vivotek SD9366-EH - Page 16

VIVOTEK
16 - User's Manual

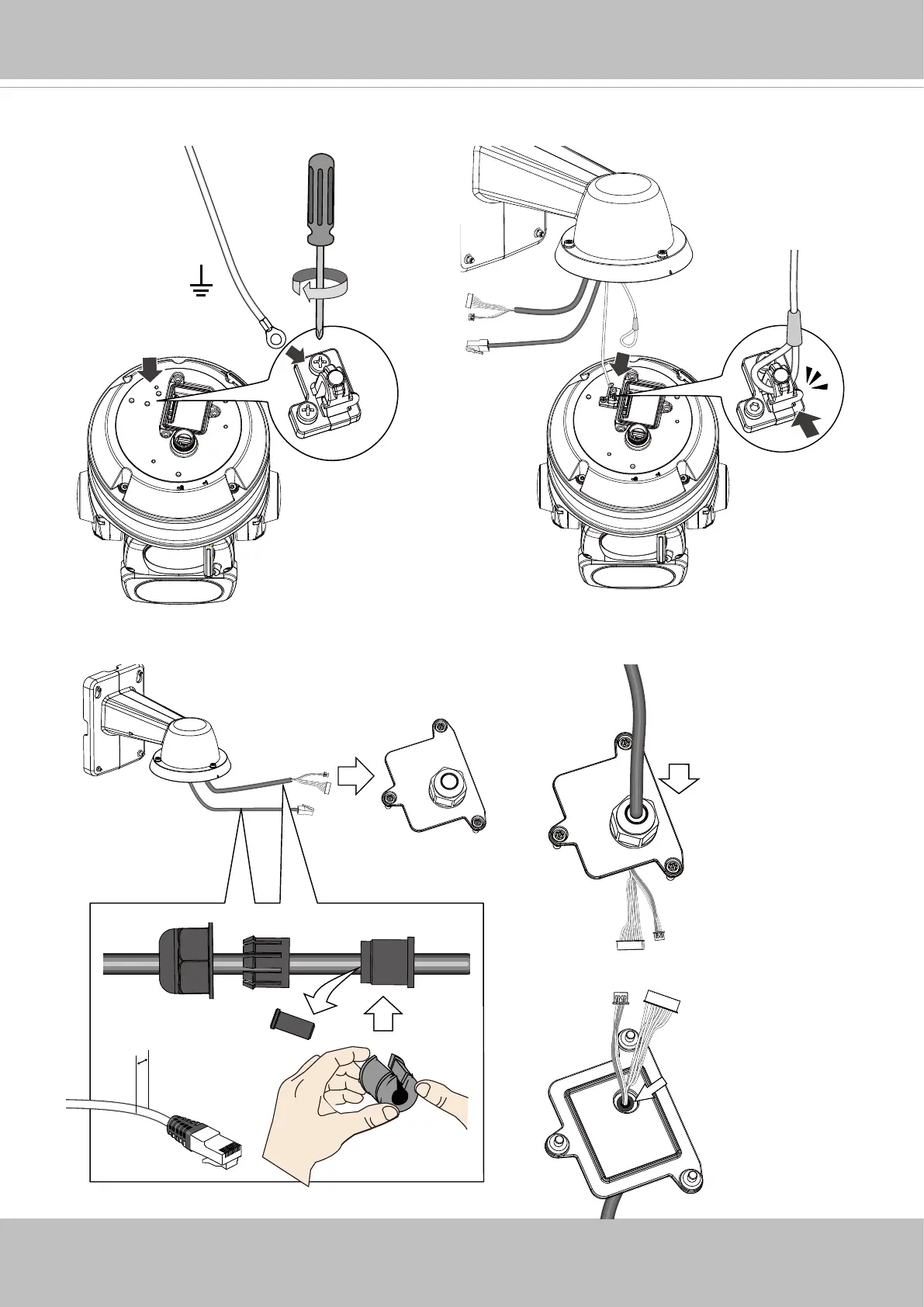

9. Install the safety wire bracket, and hook up the safety wire between the bracket and the cam-
era. Also connect the ground wire to the safety wire bracket.
4.3 ~ 6.4mm
10. Install the components of the waterproof cable gland to the Ethernet and I/O combo cables.
Make sure the outer
jacket of the combo
cable is ush with the
cabling hole.
