Vivotek SD9366-EH - Page 22

VIVOTEK
22 - User's Manual

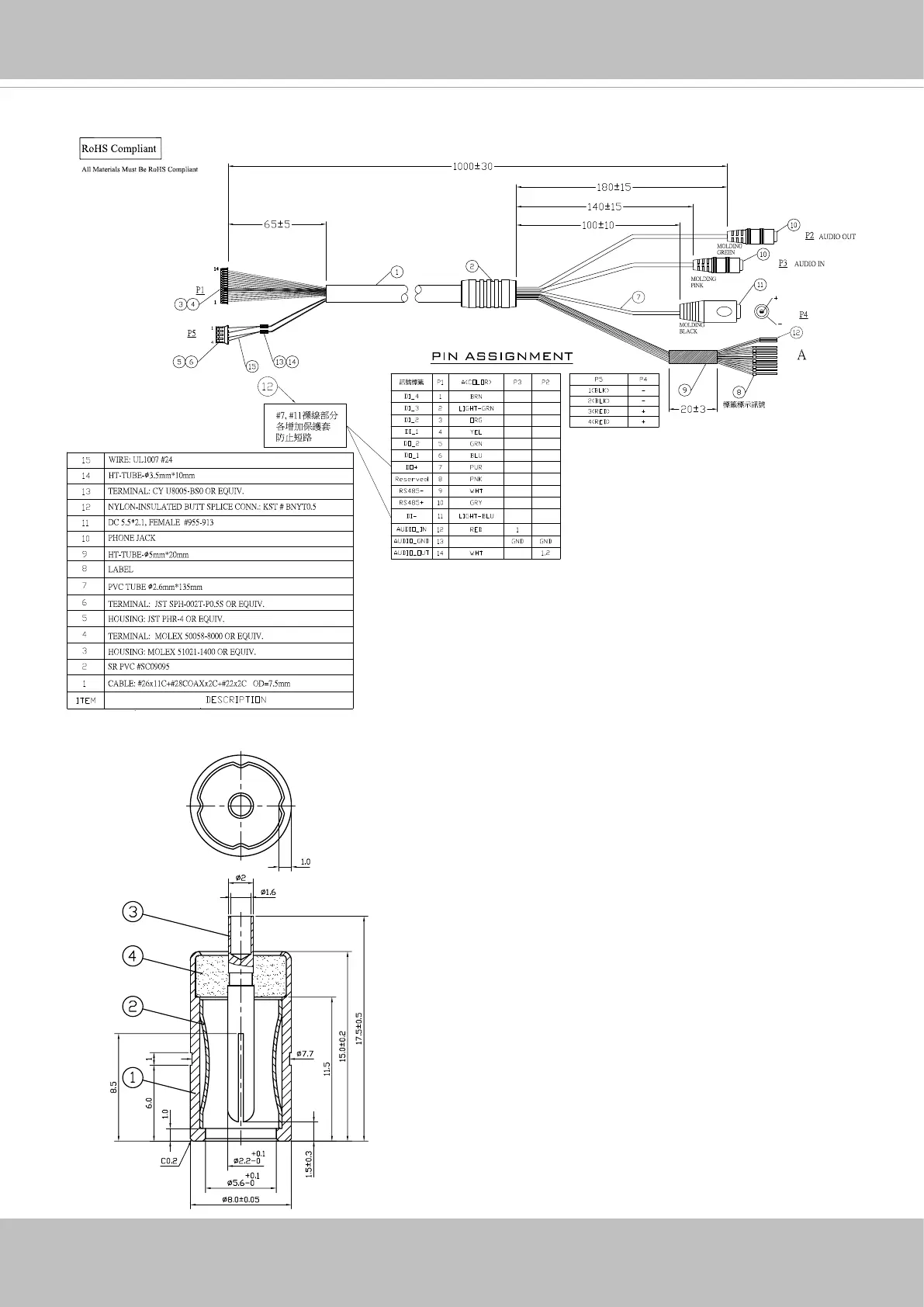

I/O Combo Cable Specications
5.5x2.1 DC straight round barrel
all dimensions in mm
The 24V DC socket dimensions are shown on the
left. The DC socket should comply with a DC jack of
the following parameters:
Connector: Straight Round Barrel
Pin Size /DC Plug dimensions: 2.1 x 5.5 x 10 mm
(AxBxC)
A Inner diameter - 2.1mm
B Outer diameter - 5.5mm
C Length - 10 mm
