Vivotek SD9366-EH - Page 23

VIVOTEK
User's Manual - 23

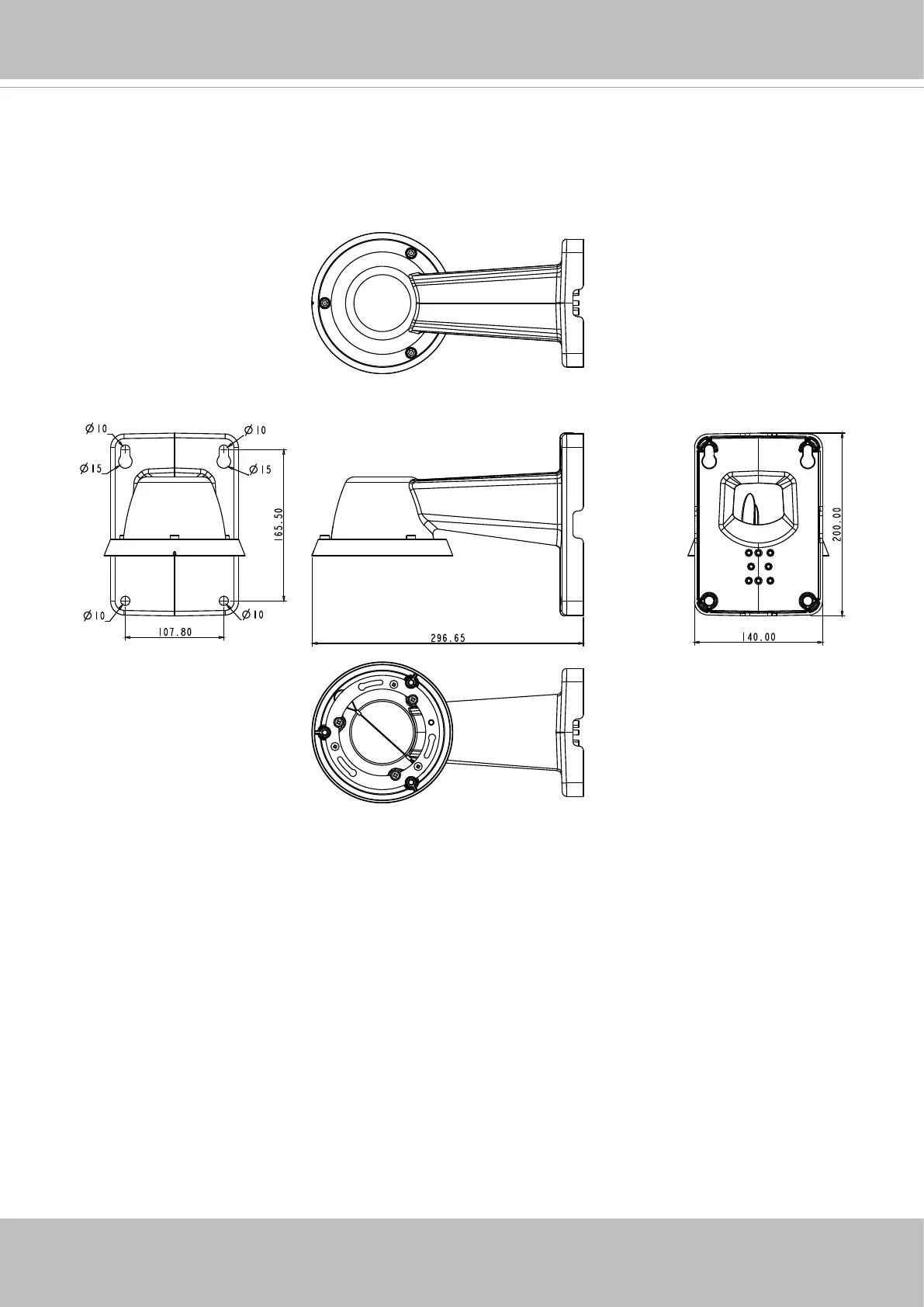

Mechanical Dimensions
Shown below are the dimensions of the wall mount bracket and its mounting holes:
You can nd the installation instructions on VIVOTEK’s website for other options such as para-
pet mount: http://www.vivotek.com/web/product/accessories.aspx
